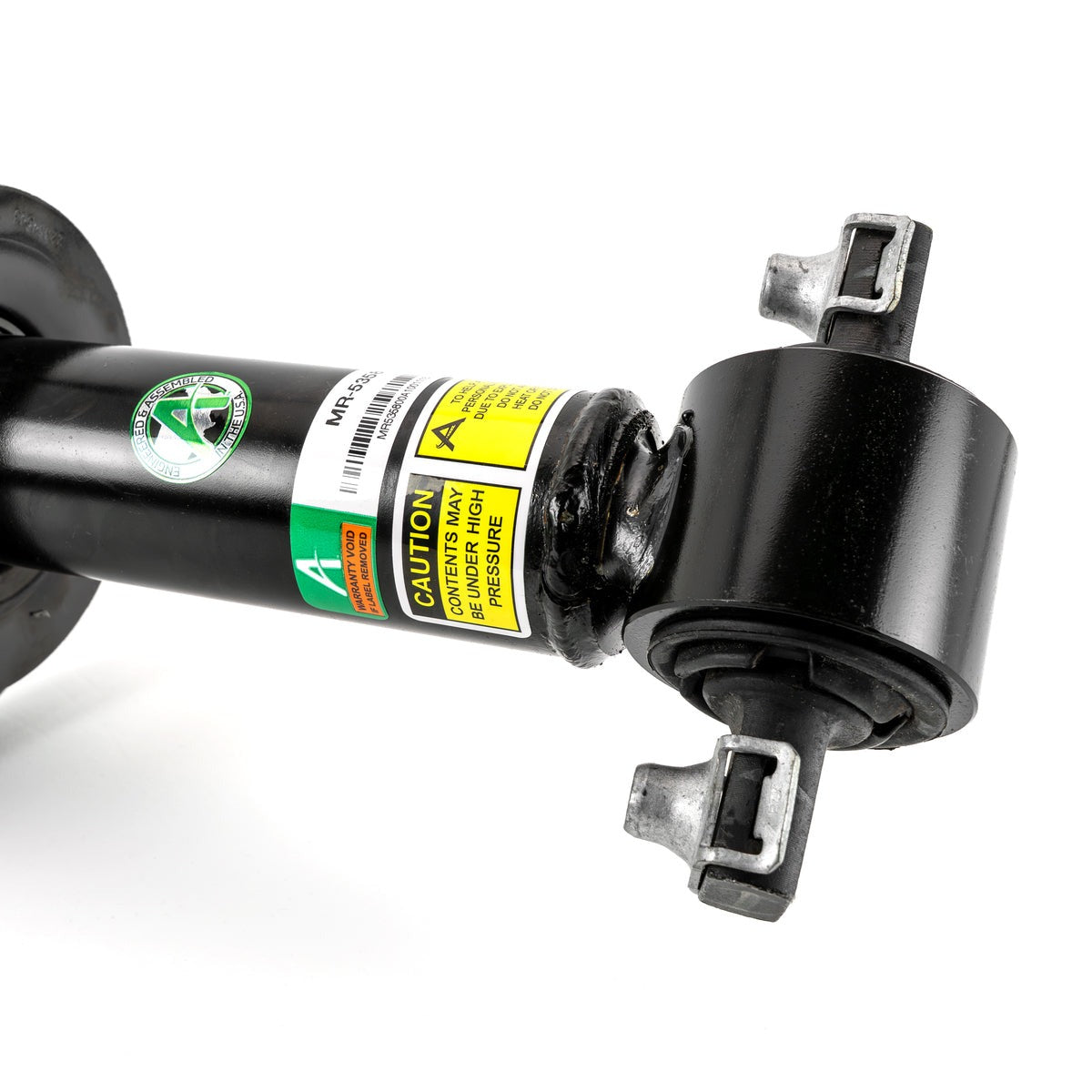

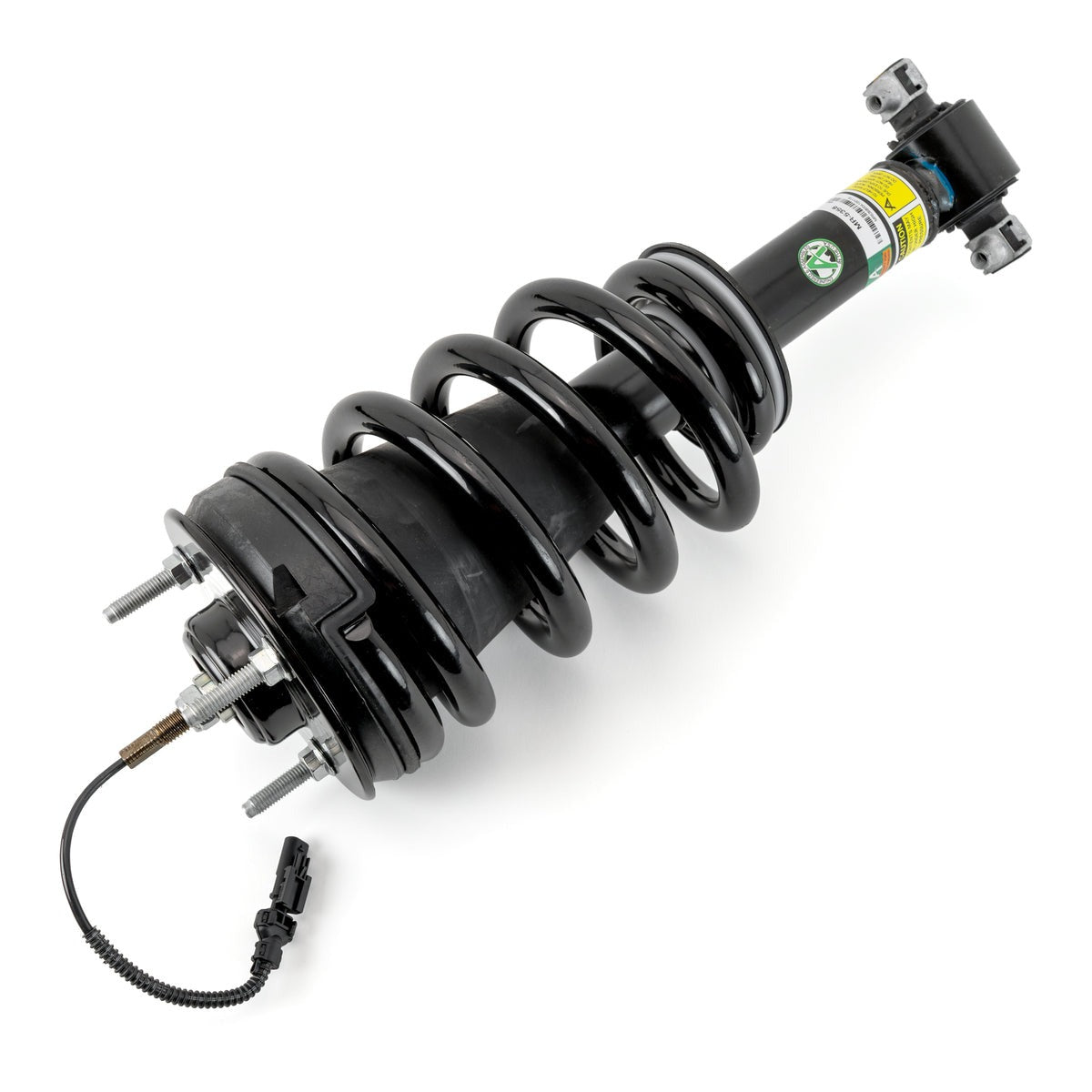

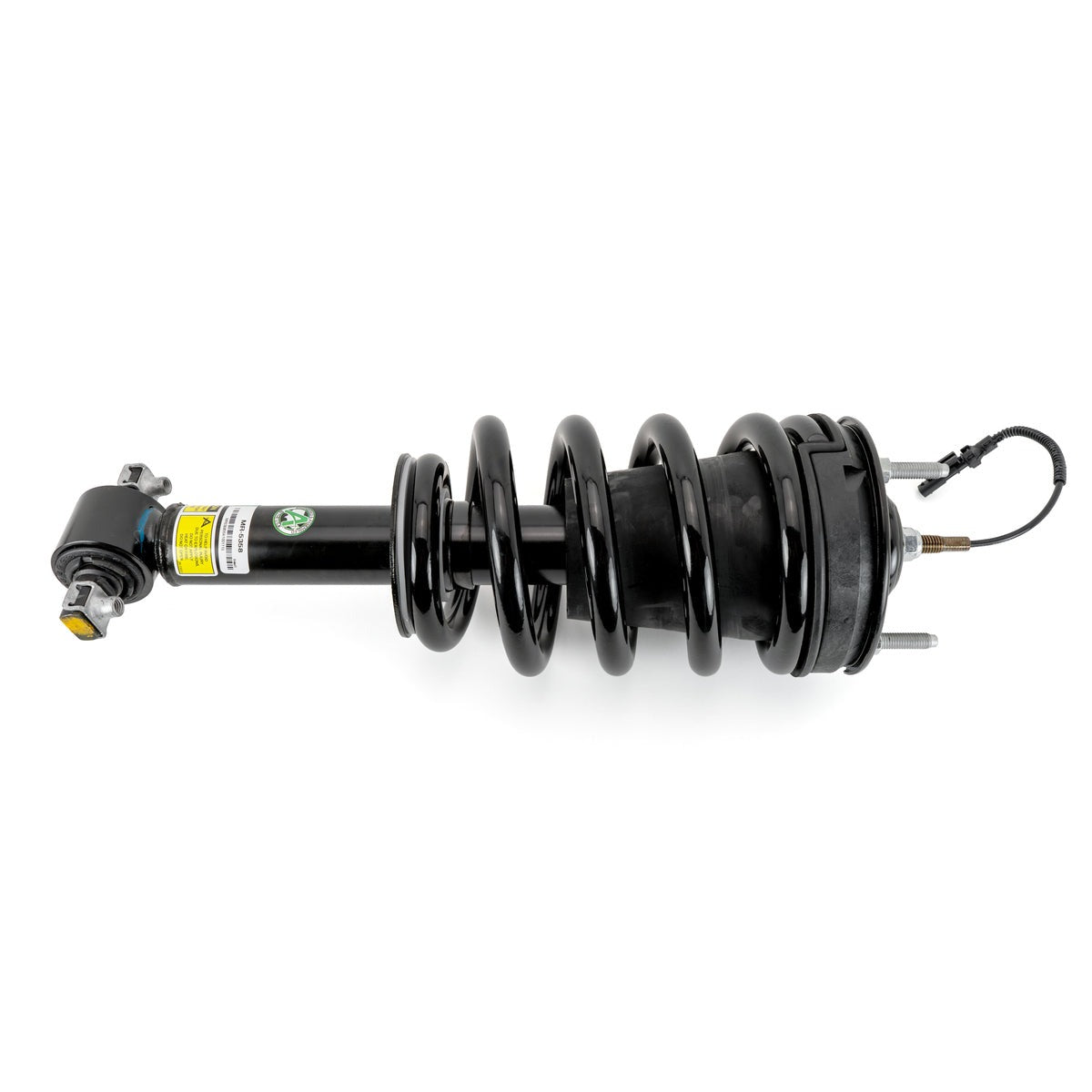

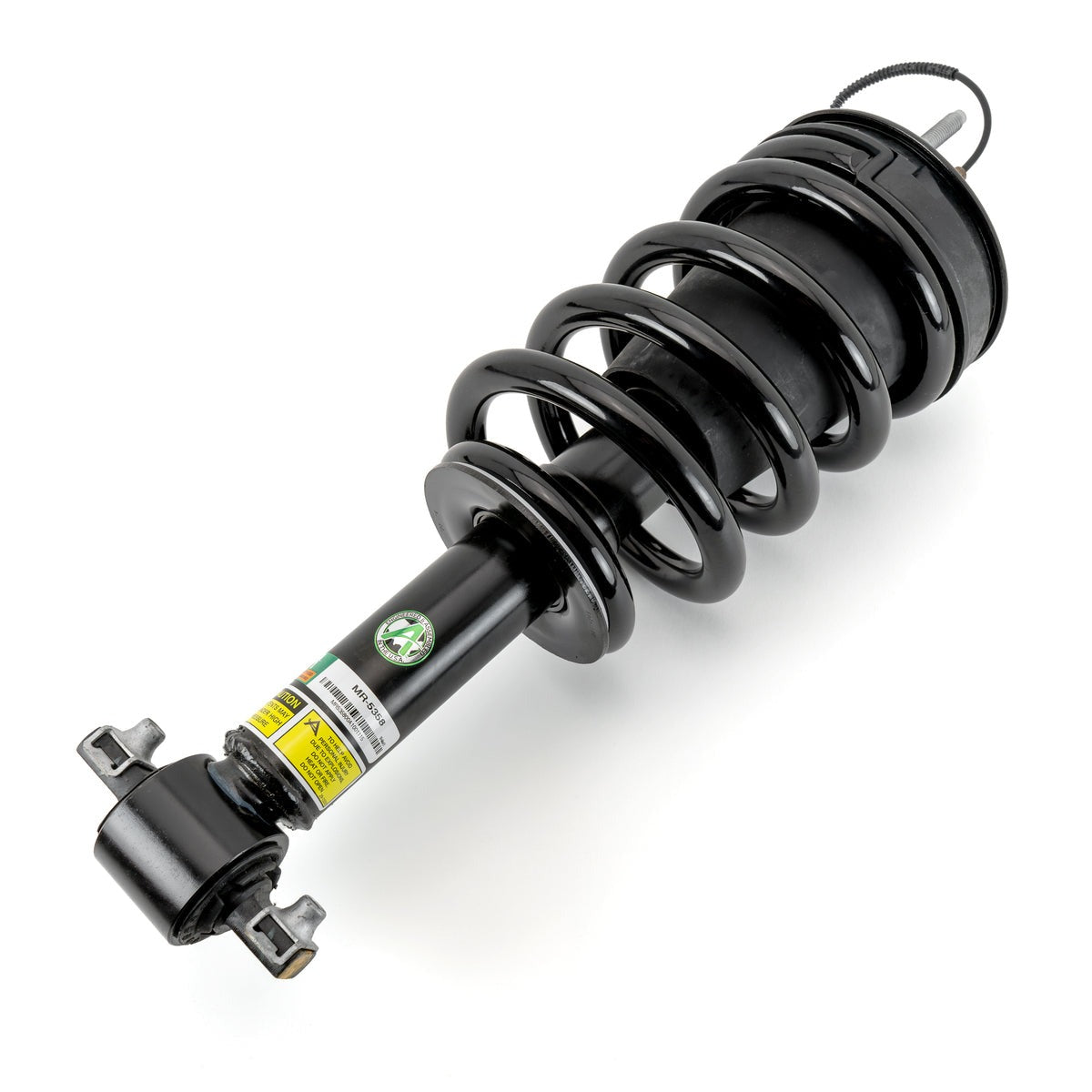

Arnott MR-5358 Front Magnetic Strut GM LWB SUVs and Trucks K2XL (K2YG/C) Chassis w/Magneride RPO Code Z95

Arnott Magnetic Ride Shock MR-5358

Arnott Magnetic Ride shocks and struts are an excellent cost-effective choice for vehicle owners looking to restore or Upgrade their suspension without losing the adaptive features of the magnetic ride system.

Features of the MR-5358:

• Magnetic Ride Control (MRC) Direct Replacement: Arnott shocks Magnetic Ride Replacement for GM SUV’s integrate with OEM magnetic ride systems, maintaining the vehicle's ability to dynamically adjust damping rates in real-time.
• Magnetic Fluid: Arnott uses magnetorheological fluid, which changes viscosity when subjected to the magnetic field in the struts , allowing for nearly instantaneous adjustments for different driving conditions.

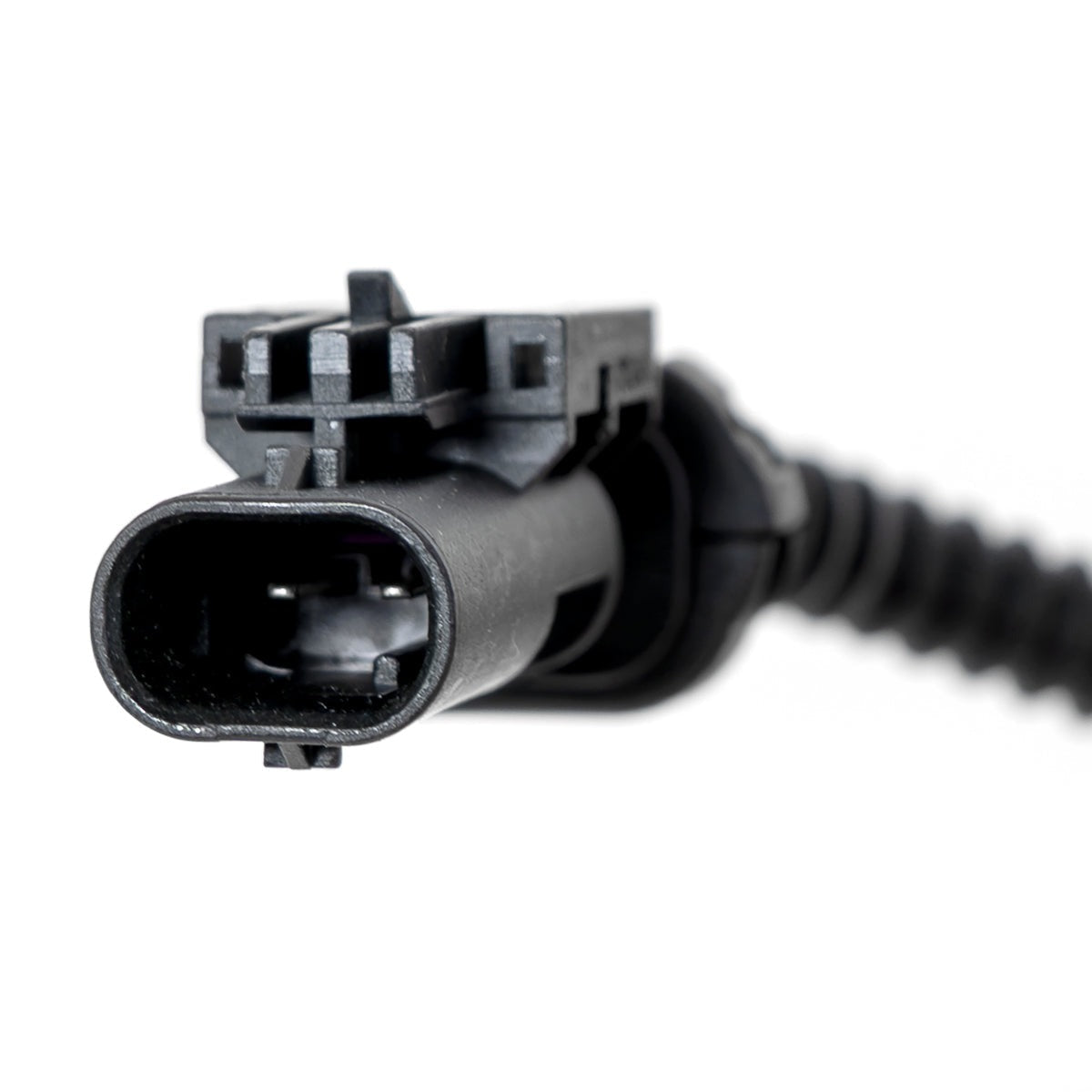

• Plug-and-Play Installation: Arnott's magnetic shocks are direct replacement, no modification, and include OEM direction connections.
• Premium Build Quality: All Arnott shocks are made from high-quality materials like aluminum and powder-coated steel.
• Adaptive Dampening: The shocks provide continuous adjustments to adapt to the different road conditions, weather, driver input, and vehicle load.

Benefits of the MR-5358:

• Improved Ride Comfort: The magnetic fluid technology allows the shocks to instantly soften or stiffen, providing a smoother, more comfortable ride over various surfaces.
• Cost-Effective Alternative: Arnott’s magnetic ride shocks are often more affordable than OEM replacements, offering an upgrade struts at a lower cost.
• Long Lasting Durability: Built with the highest of quality materials and strict manufacturing standards, Arnott shocks and struts offer long-lasting durability, reducing the need for frequent replacements.
• Upgraded OEM Performance: Arnott’s magnetic ride shocks and struts allow you to upgrade the vehicle’s factory ride quality, enhancing the performance benefits of an adaptive suspension.

Specifications of the MR-5358:

• Active Or Passive Suspension: Active
• Adjustable: No
• Adjustable Compression: No
• Adjustable Damping: Yes
• Adjustable Rebound: No
• Adjustable Ride Height: No
• Air Adjustable: No
• Air Bladder: No
• Air Bladder Material: No
• Air Ride Suspension: No
• Bearing Plate Included: No
• Bladder Heavy Duty Crimping Rings Included: No
• Bladder Sleeve(s) Included: No
• Bladder(s) Included: No
• Body End Measuring Point: Center Eye
• Boot Color: Black
• Boot Included: Yes
• Coil Over Springs Included: Yes
• Coil Spring Included: Yes
• Compressed Length (MM): 380
• Dust Shield Included: Yes
• Dust Shield Material: Rubber
• Extended Length (MM): 452.9
• Gas Charged: Yes
• Grade Type: Standard
• Heavy Duty Crimping Rings: No
• Housing Material: Steel
• Internal Construction Type: Monotube
• Internal Damper Type: Magnetic
• Lower Mount Type: Cross Pin
• Lower Mounting Isolator Included: No
• Mounting Hardware Included: Yes
• New Or Remanufactured: New
• Progressive Spring Rate: No
• Protective Aluminum Can: No
• Shock Absorber Rod End Measuring Point: Shoulder of Stud
• Shock Spring Assisted: Yes
• Shock/strut Color: Black
• Spring Isolators Included: Yes
• Spring Rate Type: Linear
• Spring Seat Included: Yes
• Springs Included: Yes
• Travel Length (MM): 72.9

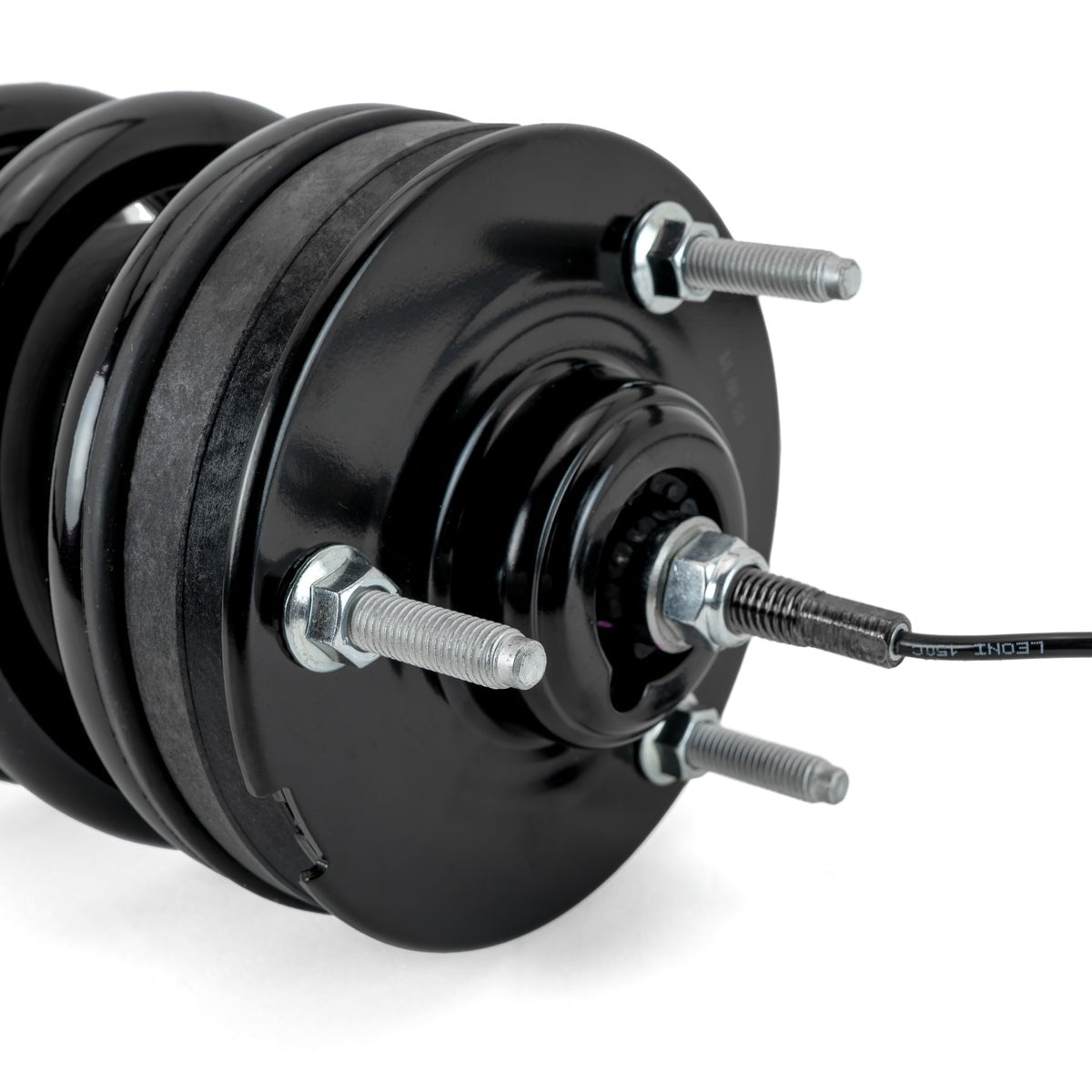

• Upper Mount Type: Stud
• Upper Mounting Isolator Included: No

Replaces OEM part Numbers: 23464589, 84977478, 84176631, 23312167, 84061228, 23151123
