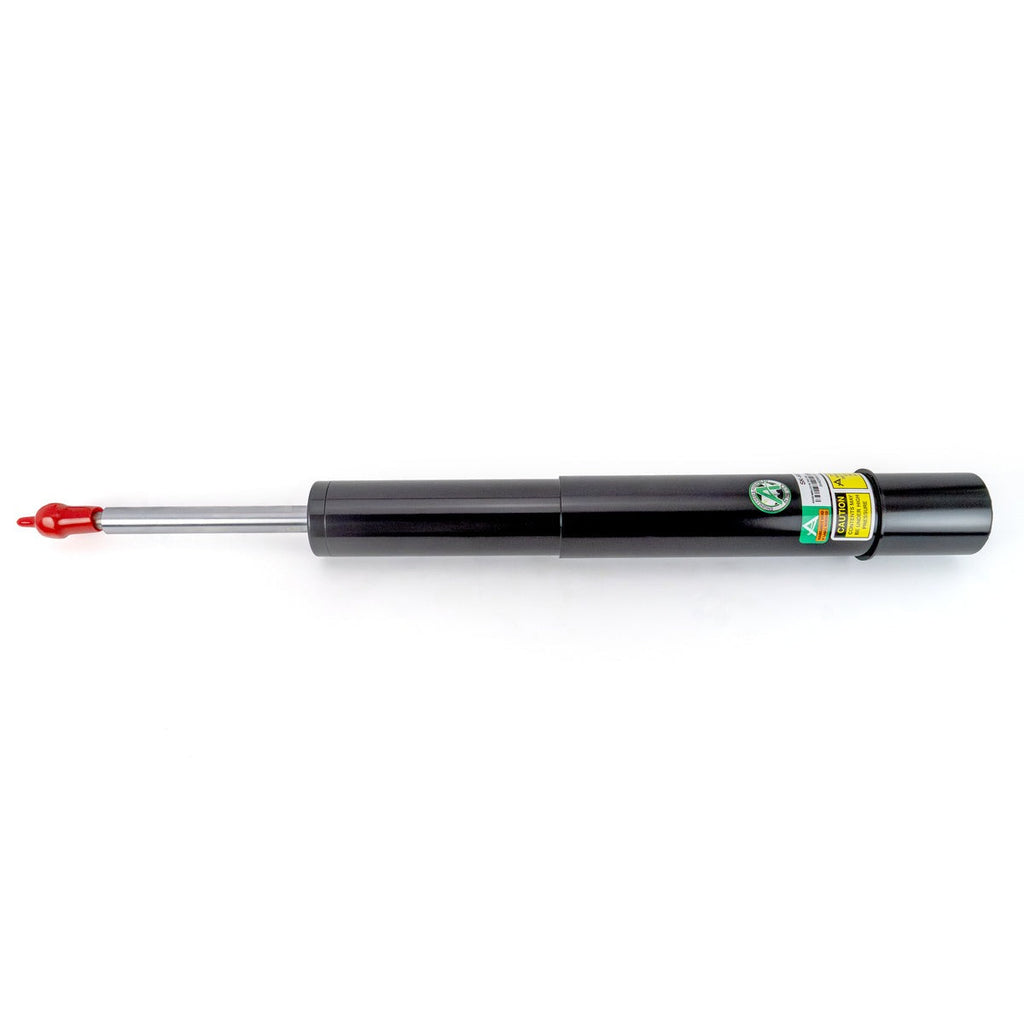

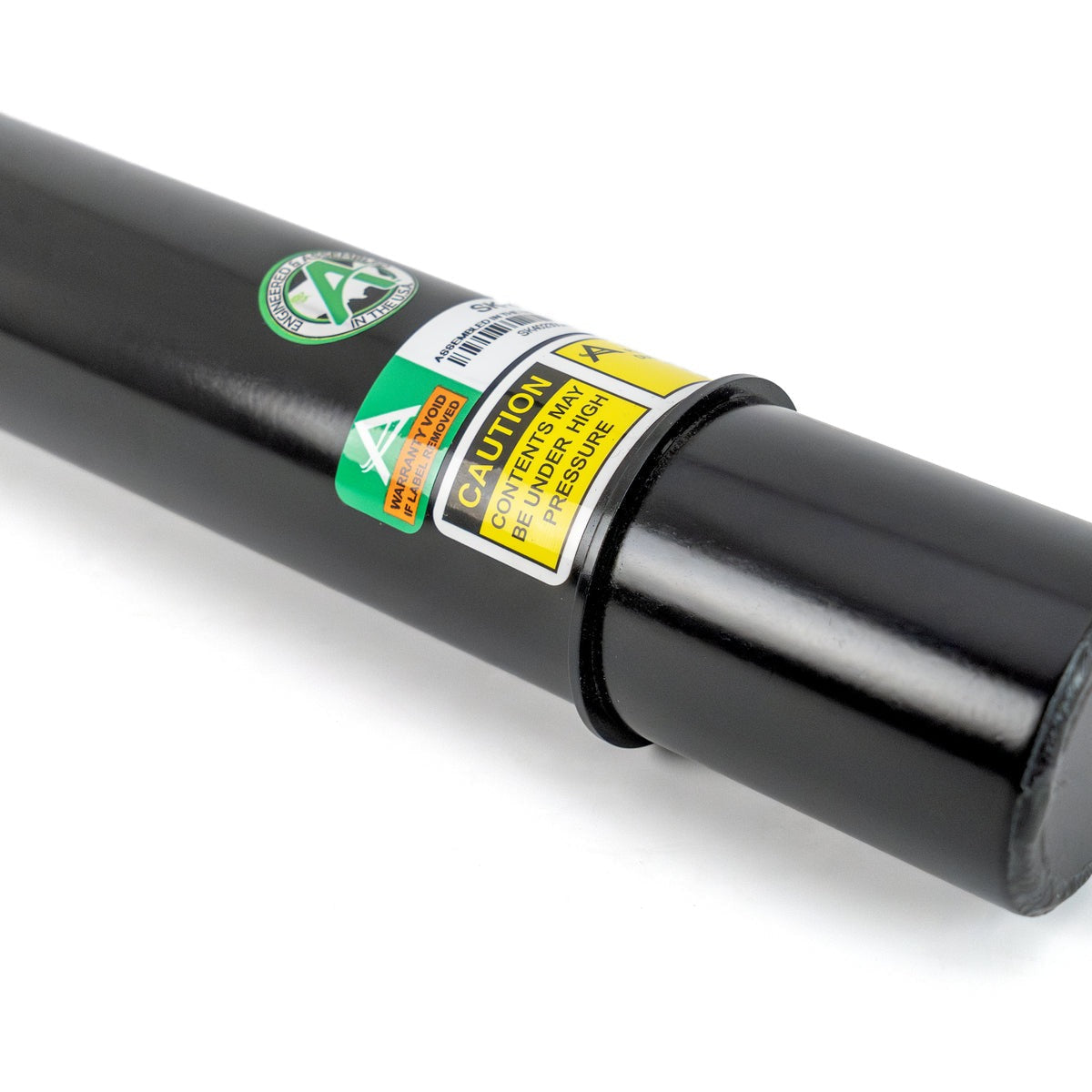

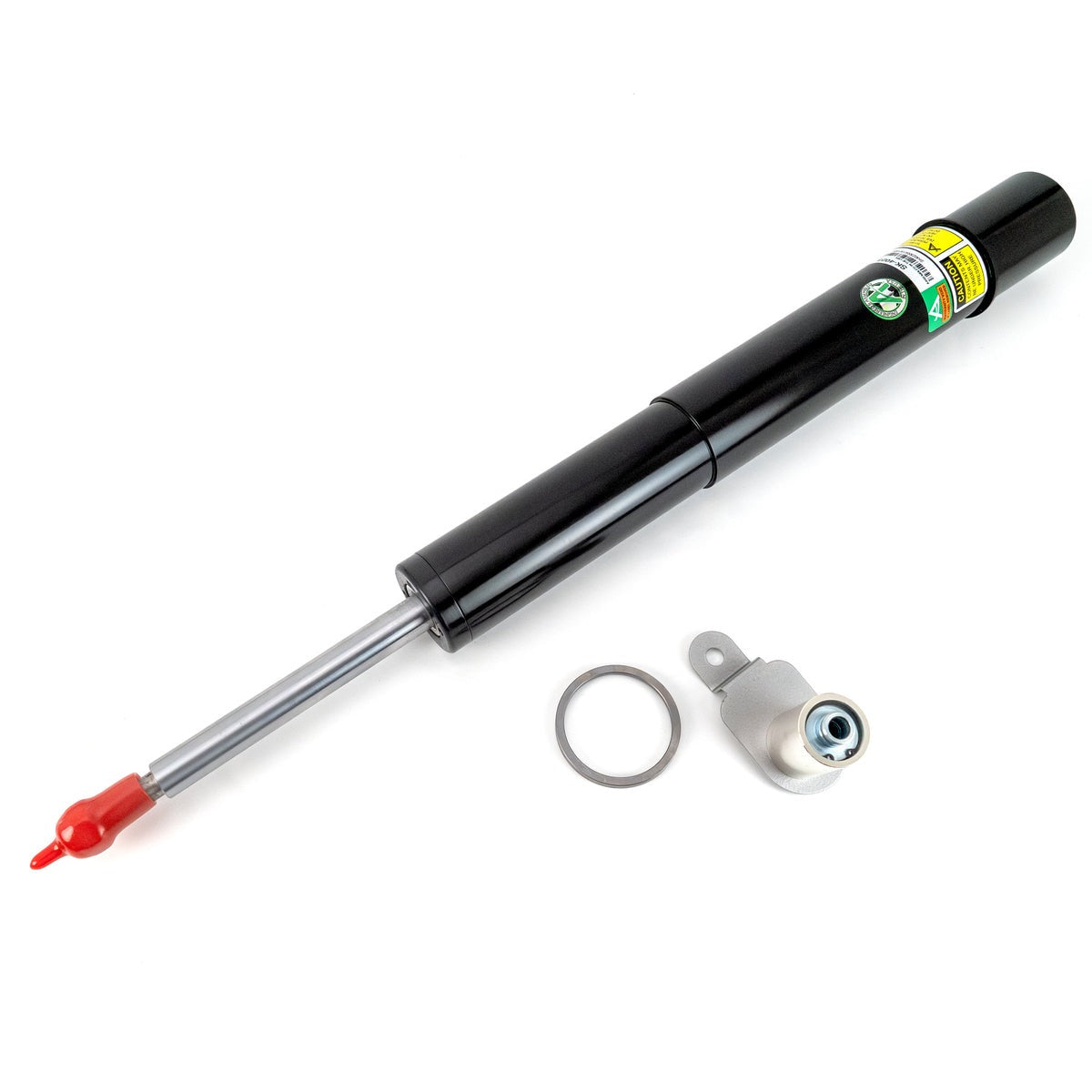

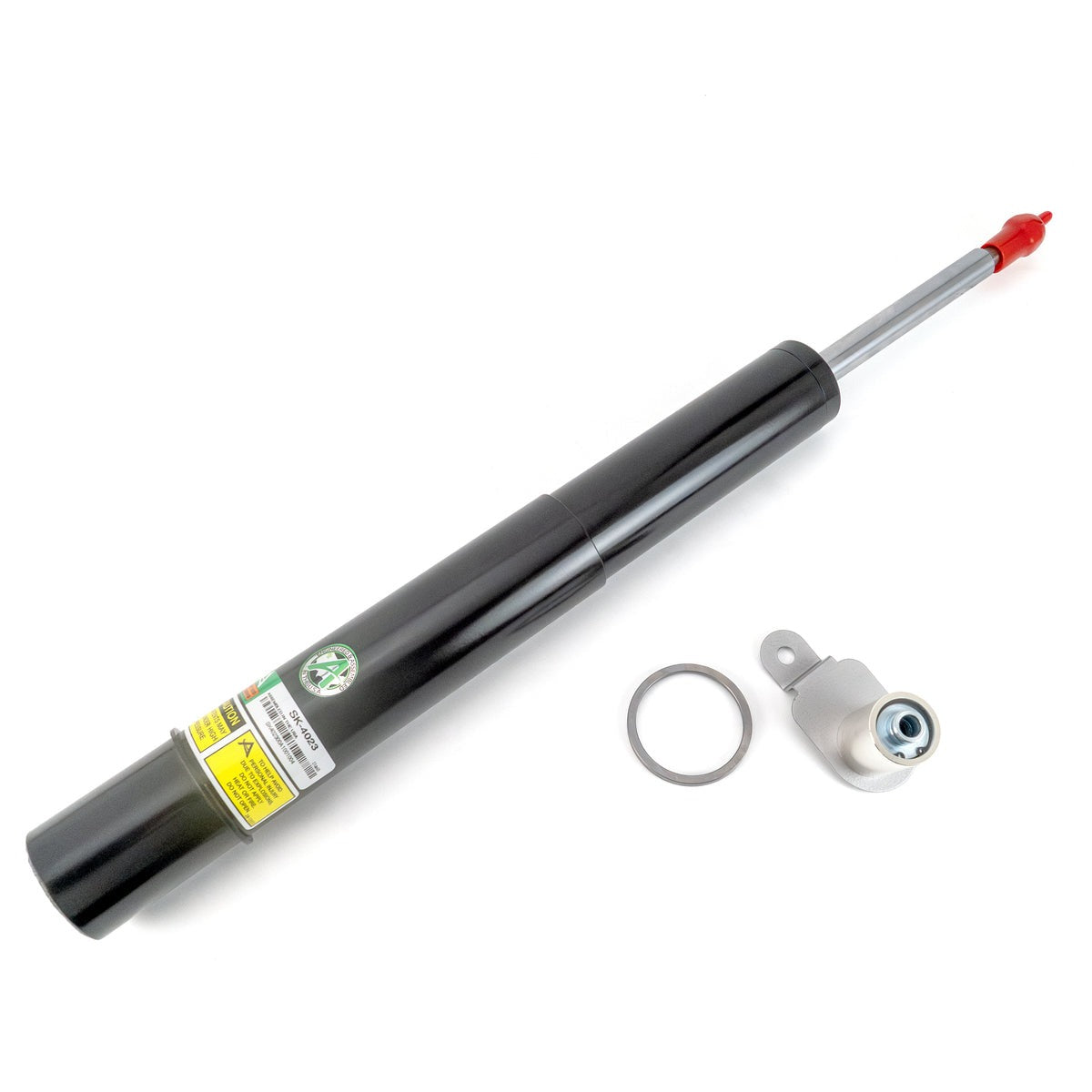

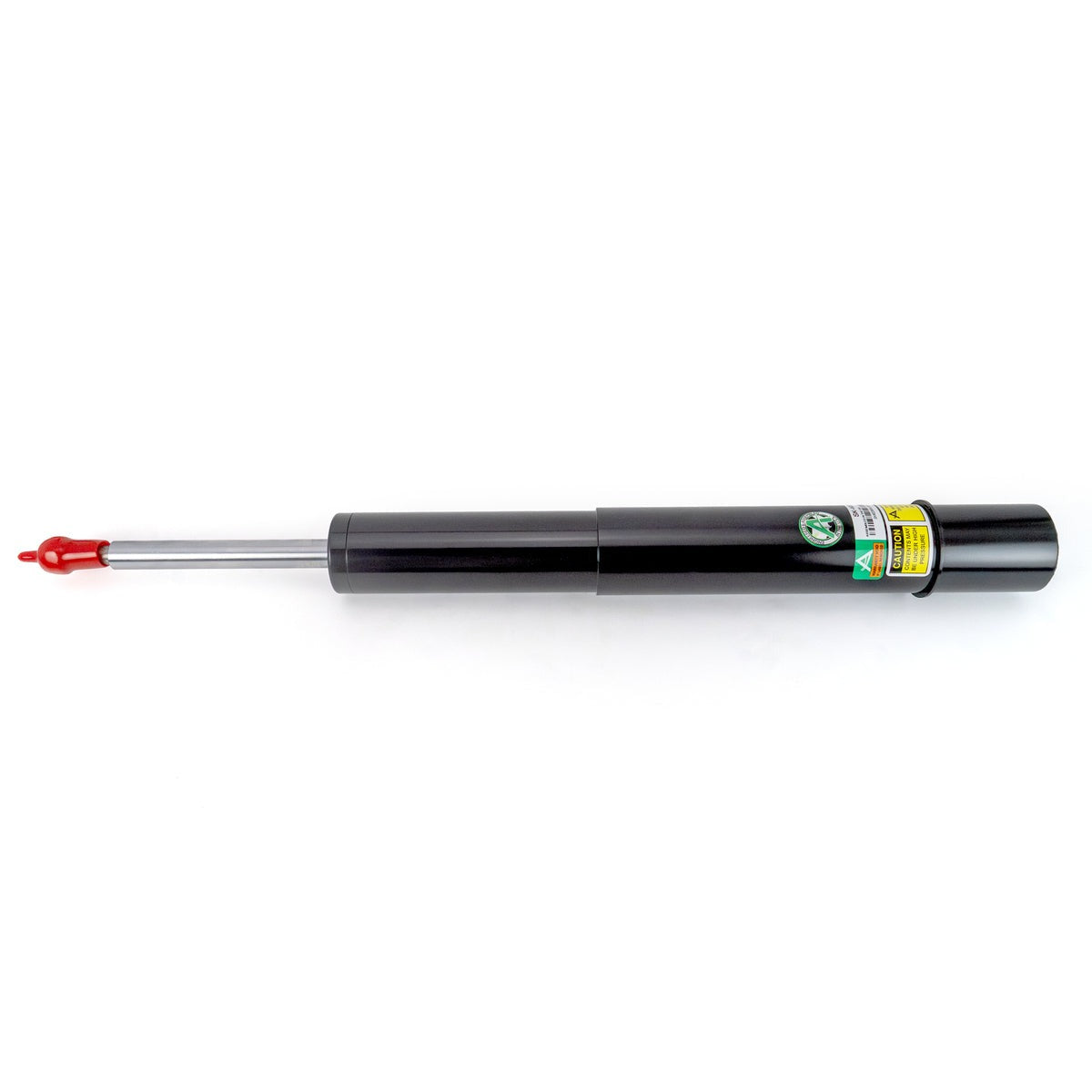

Arnott SK-4023 Front Shock Land Rover Velar (L560) w/Coil Suspension

Arnott engineered new aftermarket suspension strut for the front right or left side of the 2018-2020 Land Rover Velar (L560) with CVD. This assembly replaces the OE strut and features a new custom tuned shock absorber to provide an excellent ride and outstanding performance. The Arnott strut is assembled in the USA with Tier 1 air spring sleeve protected by an aluminum can along with an aluminum top mount. The new strut is assembled in the USA with Arnott's long-lasting seals, O-ring and bump stop.

FEATURES

• Exclusively for Land Rover Range Rover Velar (L560) with Coil Suspenson
• Fits FRONT RIGHT or LEFT
• Tested extensively to ensure proper functionality and longevity
• Designed & assembled in the USA
• Replace in Pairs

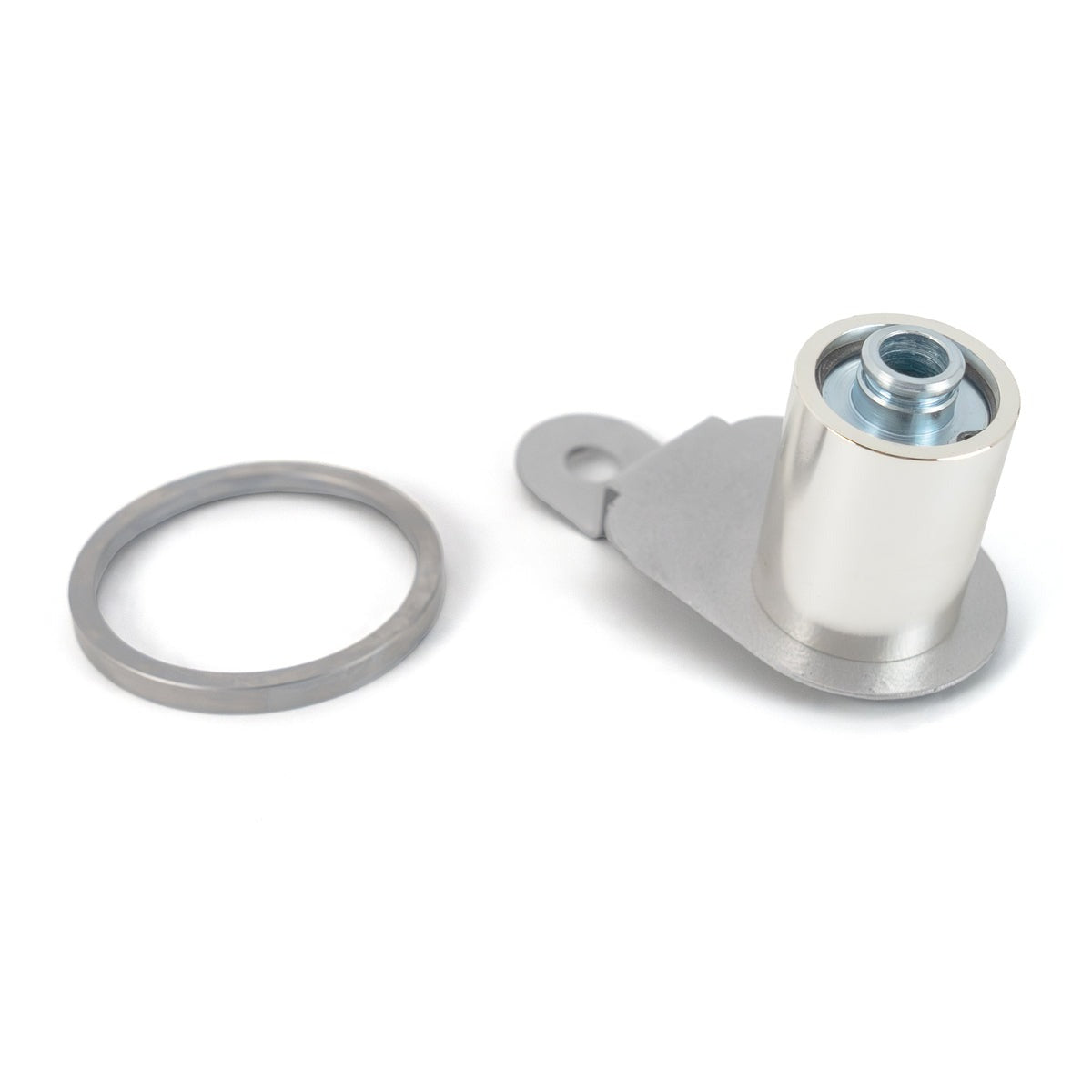

• NOTE: Spring seat should be reused from original assembly

SPECIFICATIONS

• Active Or Passive Suspension: Passive
• Adjustable: No
• Adjustable Compression: No
• Adjustable Damping: No
• Adjustable Rebound: No
• Adjustable Ride Height: No
• Air Adjustable: NO
• Air Bladder: NO
• Air Ride Suspension: NO
• Body End Measuring Point: Center Eye
• Boot Included: No
• Coil Over Springs Included: No
• Compressed Length: 436.9
• Dust Shield Included: No
• Extended Length: 561.3
• Gas Charged: YES
• Grade Type: Standard
• Internal Construction Type: Monotube
• Lower Mount Type: Special
• Lower Mounting Isolator Included: NO
• Mounting Hardware Included: NO
• New Or Remanufactured: New
• Protective Aluminum Can: No
• Shock Spring Assisted: NO
• Shock/strut Color: Black
• Spring Isolators Included: NO
• Spring Rate Type: Linear
• Spring Seat Included: NO
• Springs Included: NO
• Travel Length: 126.4
• Upper Mount Type: Special
• Upper Mounting Isolator Included: NO

Replaces OEM part Numbers: LR090615
