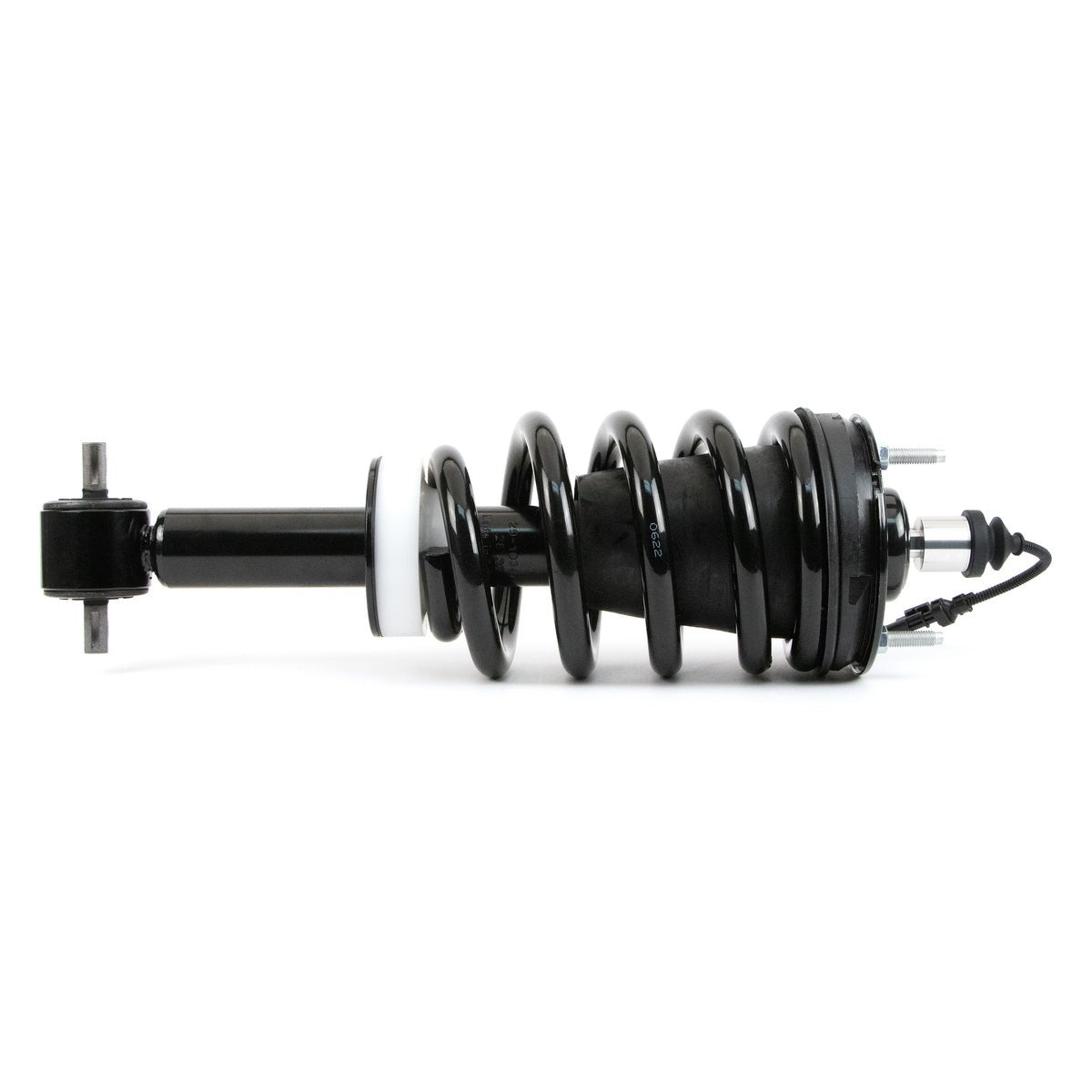

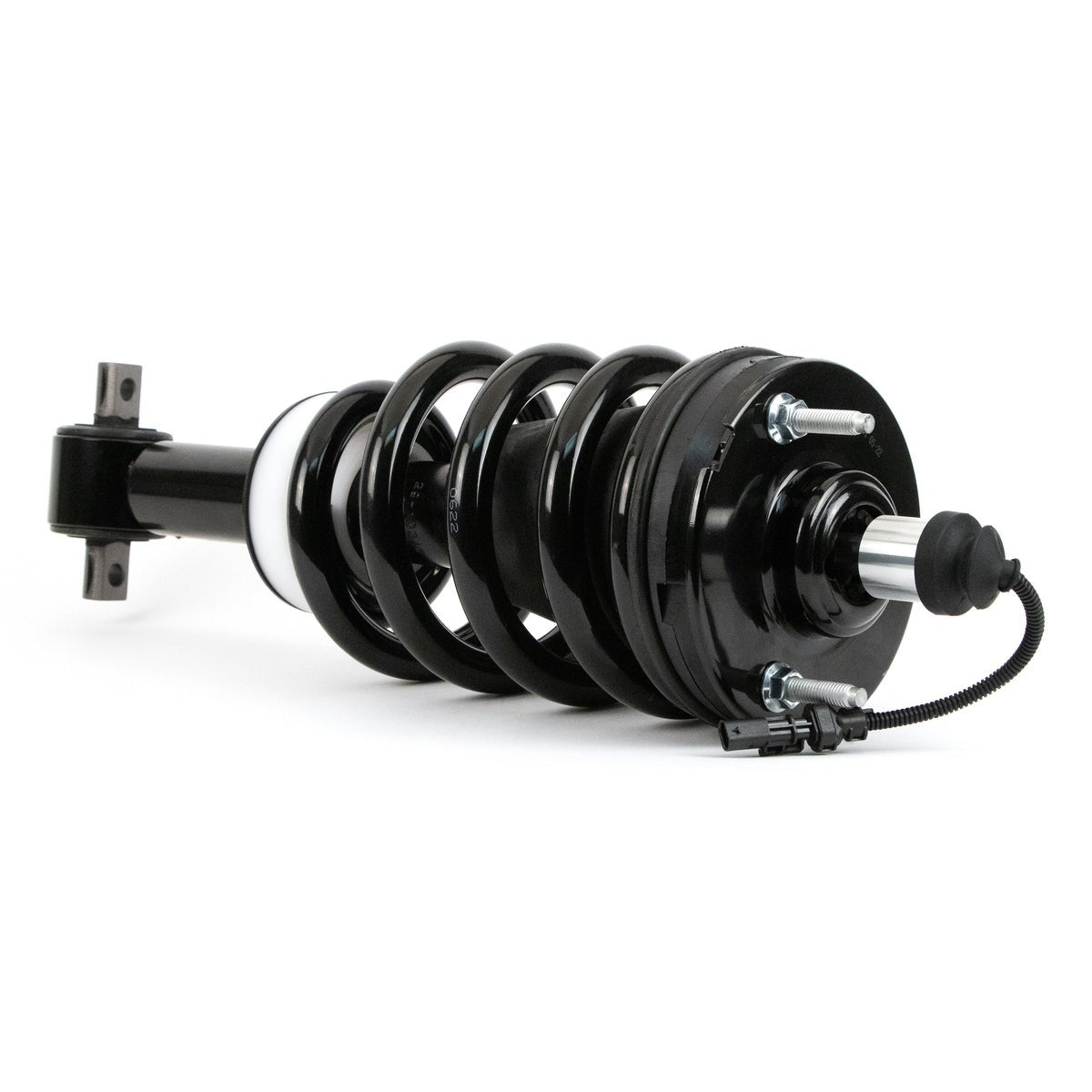

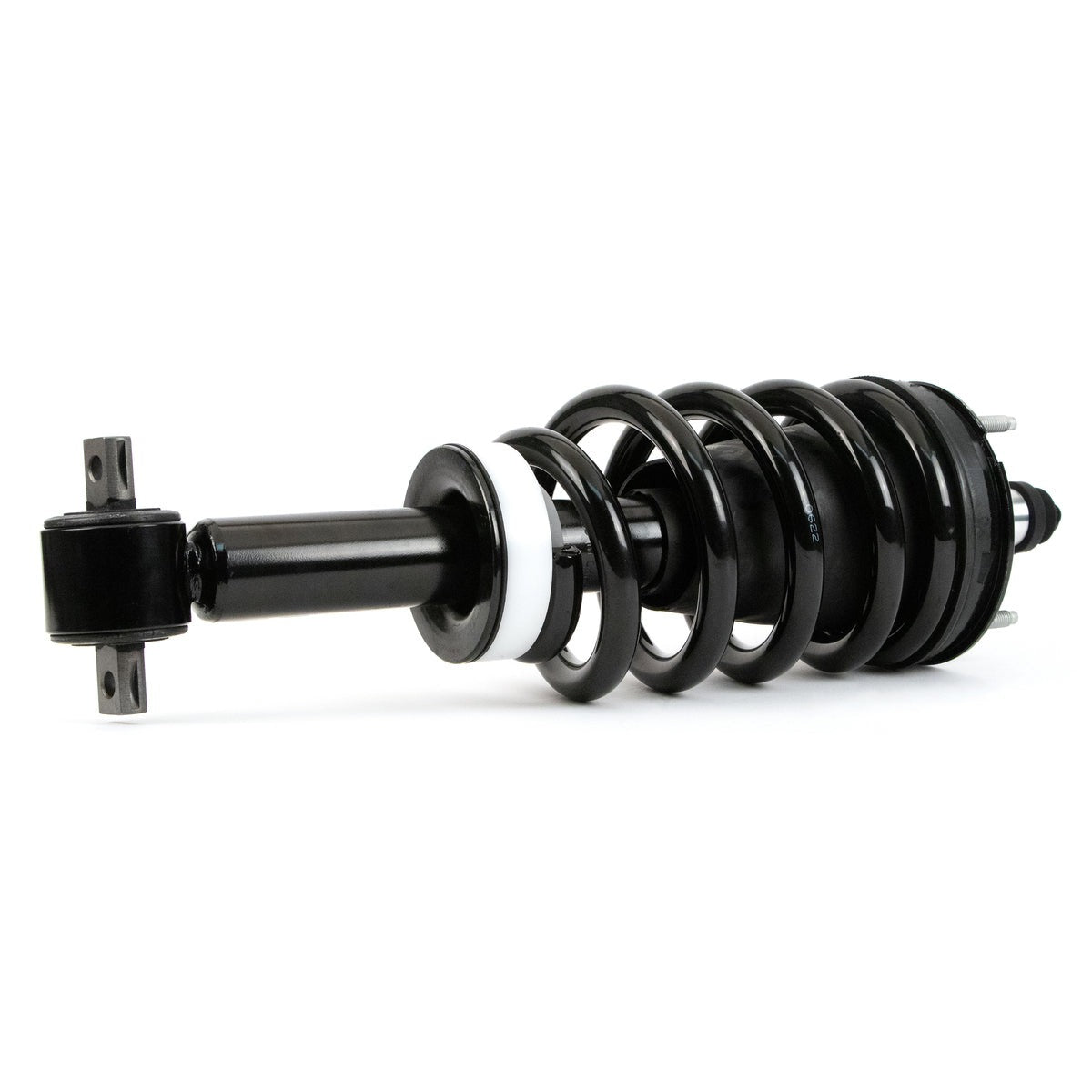

Arnott SK-4261 Front Coil-Over Strut Chev/GMC 4WD PickupTrucks (K2xx) w/Z95

The Arnott SK-4261 coil strut assembly is designed for the front of 2014-2018 GMC Sierra and Chevrolet Silverado trucks (4WD) equipped with Z95 MagneRide. This direct replacement assembly is engineered to restore factory ride height and dependable performance. The SK-4261 also gives drivers added flexibility. In addition to fitting truck applications, it can be used to achieve a 1 inch lift on 2015-2020 GM Short Wheelbase (4WD) and Long Wheelbase (RWD/4WD) SUVs, as well as 2014-2018 Sierra and Silverado (2WD) models with MagneRide. Each unit is completely new and built from premium components, including a powder-coated coil spring and a custom-valved shock absorber. Arnott engineers validate every strut through rigorous lab testing and thousands of miles on our test fleet, ensuring performance, durability, and comfort under real-world conditions. The SK-4261 converts the factory Z95 MagneRide to Arnott custom-tuned passive valving, with an included electronics bypass solution for seamless integration. The strut fits either front position, arrives fully pre-assembled for plug-and-play installation, and includes a detailed installation manual. Designed and assembled in the USA, the SK-4261 is recommended to be replaced in pairs for the best results. It is an excellent passive solution for aging electronic or air suspension systems, restoring confidence, stability, and a smooth ride.

FEATURES

• Converts factory Z95 MagneRide to Arnott's custom-tuned passive valving with included electronics bypass solution
• Restores vehicle to original ride height
• Fits front right or left position
• Fully pre-assembled for Plug-N-Play installation
• Detailed installation manual available
• Designed and assembled in the USA
• Replace in Pairs

SPECIFICATIONS

• Active Or Passive Suspension: Passive
• Adjustable: No
• Adjustable Compression: No
• Adjustable Damping: No
• Adjustable Rebound: No
• Adjustable Ride Height: No
• Air Adjustable: No
• Air Bladder: No
• Air Bladder Material: No
• Air Ride Suspension: No
• Bearing Plate Included: Yes
• Bladder Heavy Duty Crimping Rings Included: No
• Bladder Sleeve(s) Included: No
• Bladder(s) Included: No
• Body Diameter: 50.038
• Body End Measuring Point: Center Eye
• Boot Color: Black
• Boot Included: Yes
• Coil Over Springs Included: Yes
• Coil Spring Included: Yes
• Compressed Length: 312.928
• Dust Shield Included: Yes
• Dust Shield Material: Rubber
• Extended Length: 452.12
• Gas Charged: Yes
• Grade Type: Standard
• Heavy Duty Crimping Rings: No
• Housing Material: Steel
• Internal Construction Type: Twin-tube
• Internal Damper Type: Hydraulic
• Lower Mount Type: Cross Pin
• Lower Mounting Isolator Included: Yes
• Mounting Hardware Included: Yes
• New Or Remanufactured: New
• Outer Housing Diameter: 50.038
• Progressive Spring Rate: No
• Protective Aluminum Can: No
• Shock Absorber Rod End Measuring Point: Shoulder of Stud
• Shock Spring Assisted: Yes
• Shock/strut Color: Black
• Spring Isolators Included: Yes
• Spring Rate Type: Linear
• Spring Seat Included: Yes
• Springs Included: Yes
• Travel Length: 139.192
• Upper Mount Type: Bolt
• Upper Mounting Isolator Included: Yes

Replaces OEM part Numbers: 23151123, 23312167, 23464589, 84061228, 84176631, 84977478
