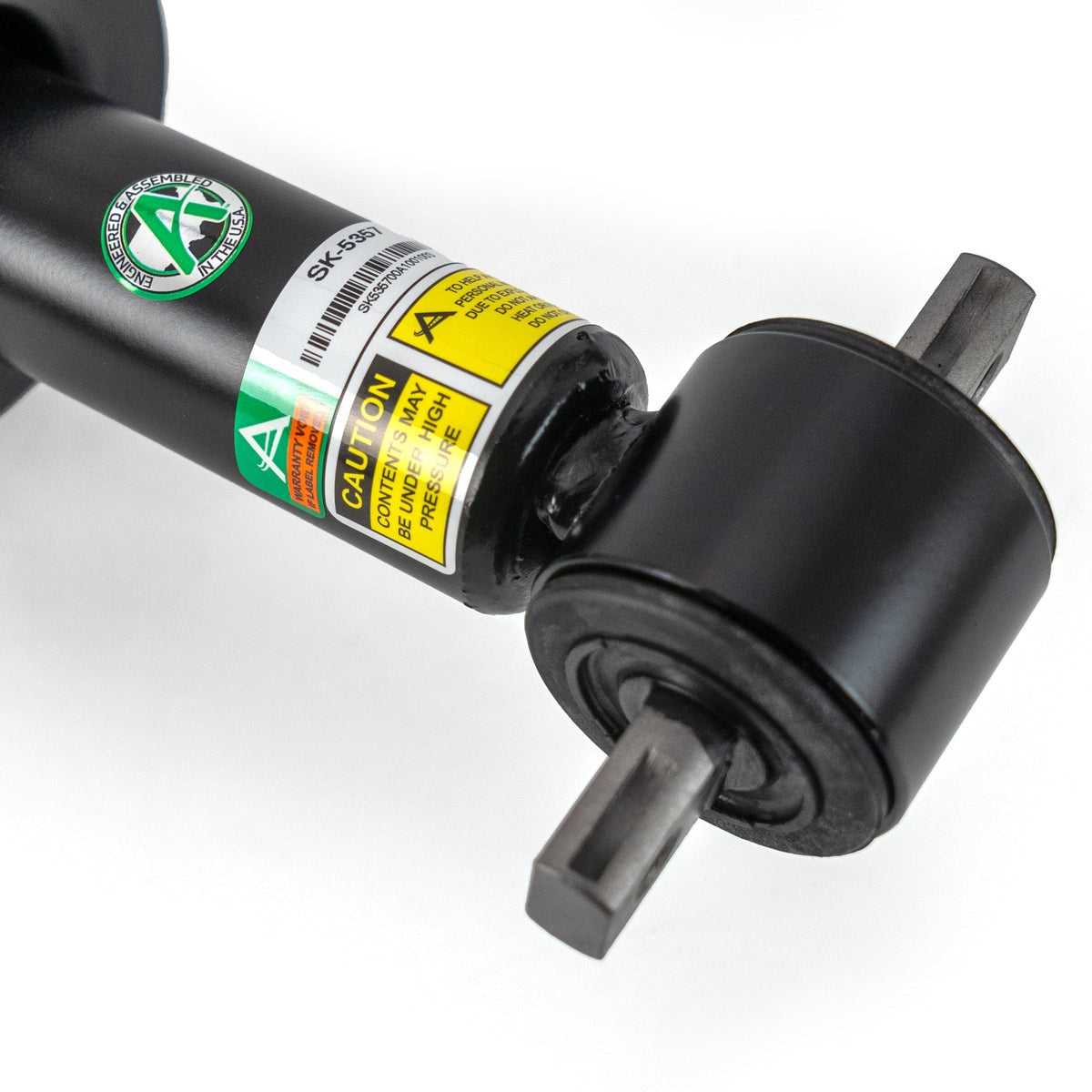

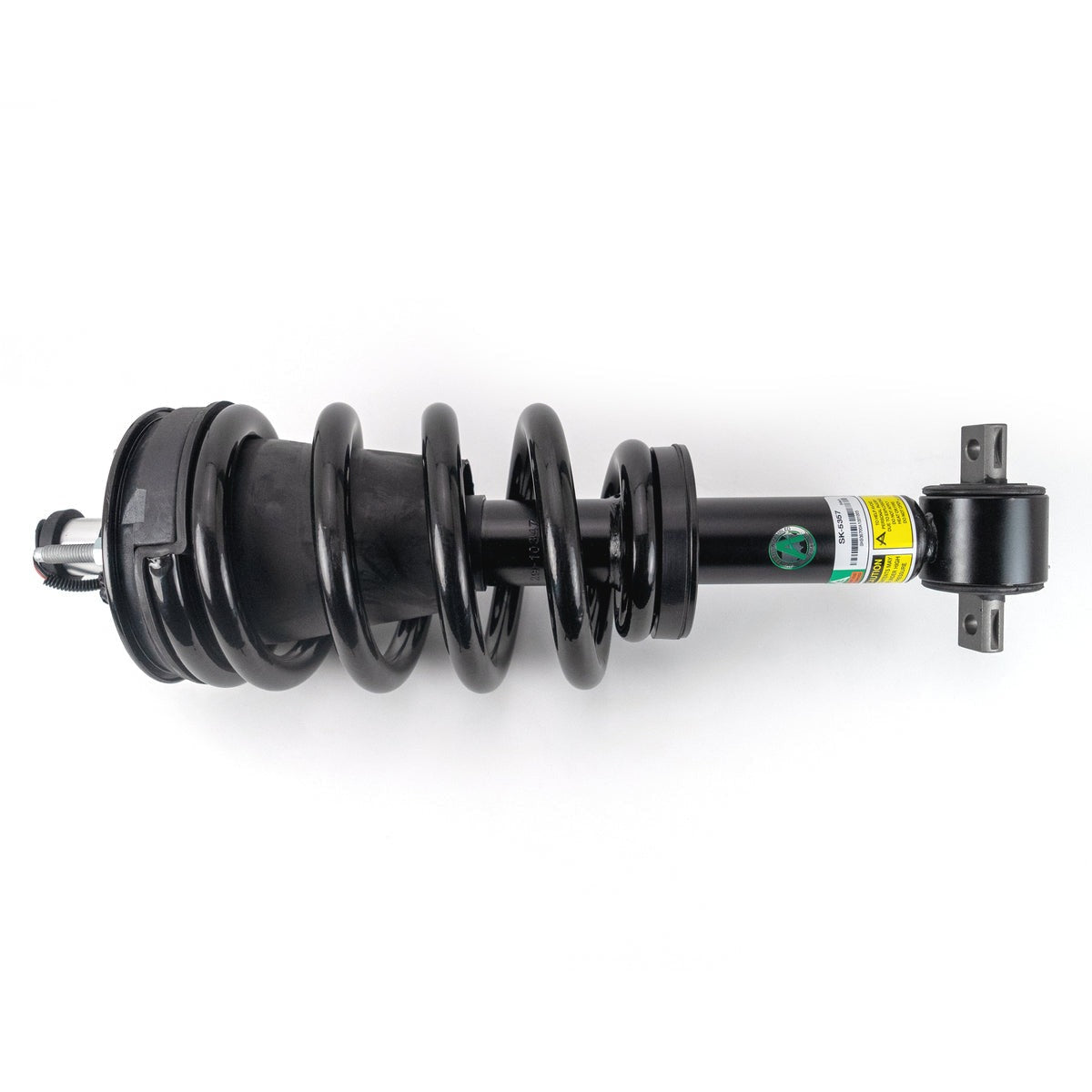

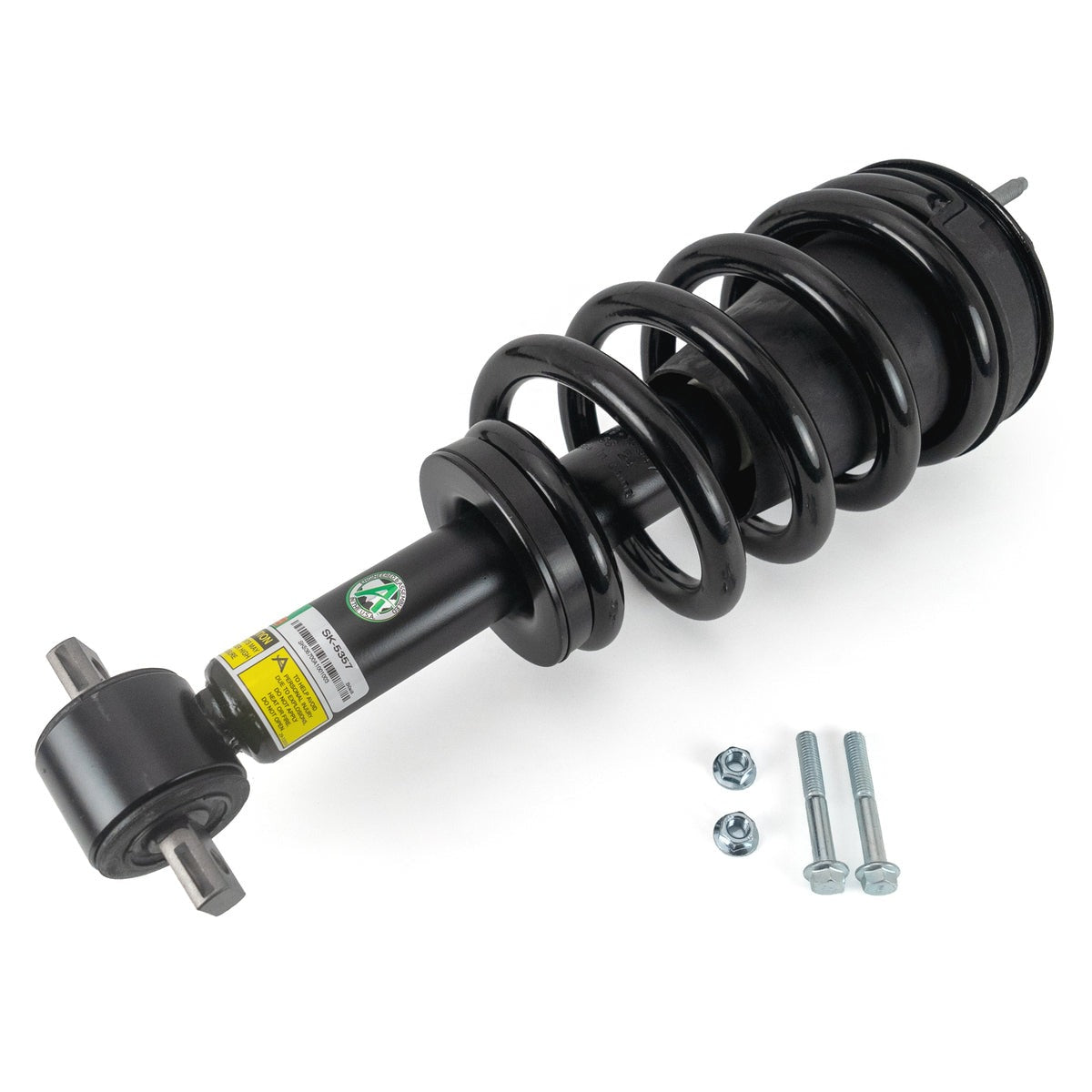

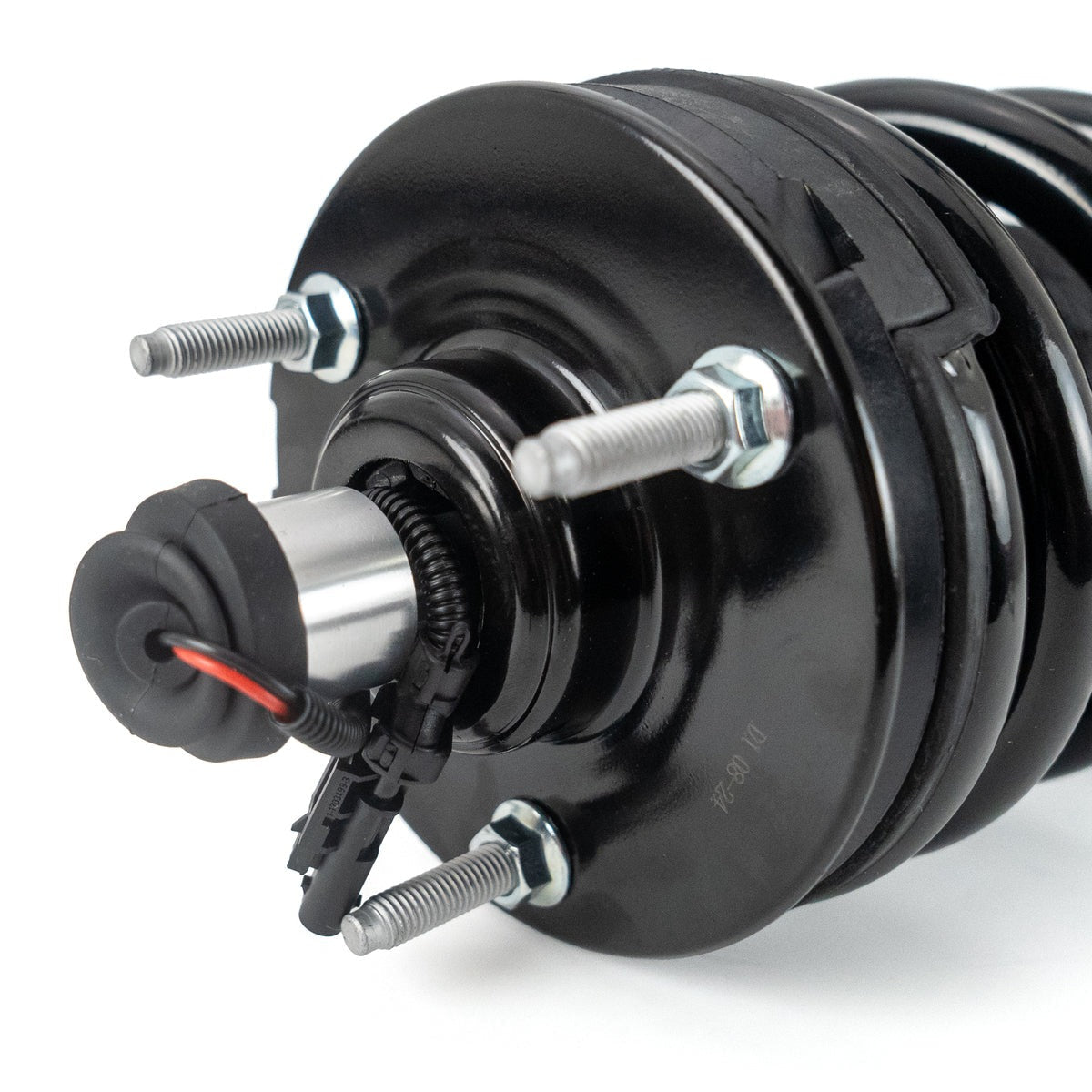

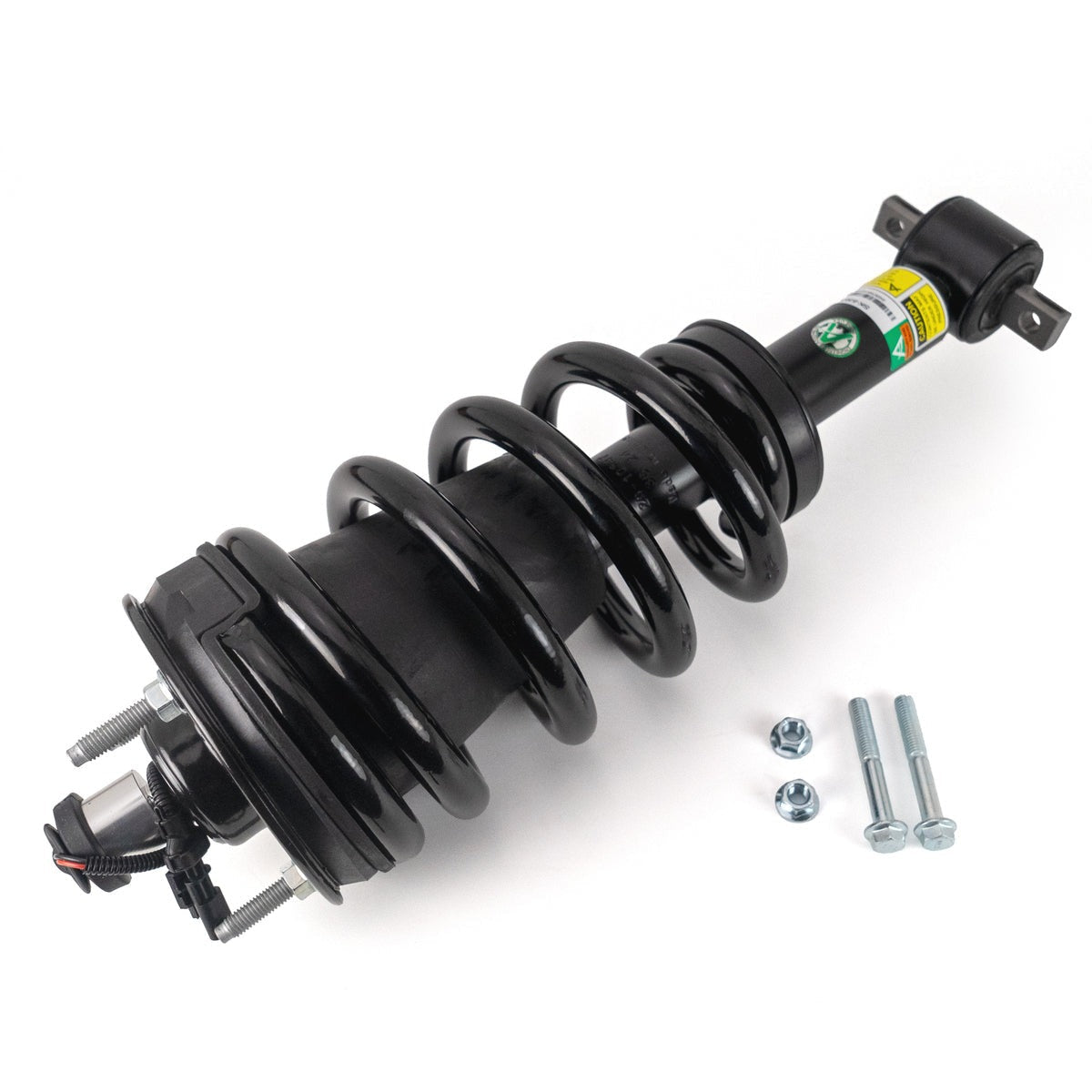

Arnott SK-5357 Front Coil Strut Assembly GM Long Wheel Base SUVs K2XL (K2YG/C) Chassis with MagneRide RPO Code Z95

The Arnott SK-5357 coil strut assembly is designed for the front of 2015-2020 GM Short Wheelbase (4WD) and Long Wheelbase (RWD/4WD) SUVs, as well as 2014-2018 GMC Sierra and Chevrolet Silverado (RWD) models equipped with Z95 MagneRide. This direct replacement restores proper factory ride height and dependable performance. For the GM K2 platform, Arnott offers two ride height options: the SK-5357 returns the vehicle to factory height, while the SK-4261 provides an additional 1 inch lift. Built from premium components, this completely new strut includes a powder-coated coil spring and a custom-valved shock absorber. Each unit is rigorously tested in The Arnott R&D lab and driven for thousands of miles on our fleet of test vehicles to ensure durability, comfort, and real-world performance. The SK-5357 also converts the factory Z95 MagneRide to Arnott custom-tuned passive valving. An electronics bypass solution is included for seamless system integration. The strut fits either front position, comes fully pre-assembled for plug-and-play installation, and includes a detailed installation manual. Designed and assembled in the USA, the SK-5357 should be replaced in pairs for the best results. It is an excellent passive alternative to aging electronic or air suspension systems, restoring comfort, stability, and confidence behind the wheel.

FEATURES

• Converts factory Z95 MagneRide to Arnott's custom-tuned passive valving with included electronics bypass solution
• Restores vehicle to original ride height
• Fits front right or left position
• Fully pre-assembled for Plug-N-Play installation
• Detailed installation manual available
• Designed and assembled in the USA
• Replace in Pairs

SPECIFICATIONS

• Active Or Passive Suspension: Passive
• Adjustable: No
• Adjustable Compression: No
• Adjustable Damping: No
• Adjustable Rebound: No
• Adjustable Ride Height: No
• Air Adjustable: No
• Air Bladder: No
• Air Bladder Material: No
• Air Ride Suspension: No
• Bearing Plate Included: Yes
• Bladder Heavy Duty Crimping Rings Included: No
• Bladder Sleeve(s) Included: No
• Bladder(s) Included: No
• Body End Measuring Point: Center Eye
• Boot Color: Black
• Boot Included: Yes
• Coil Over Springs Included: Yes
• Coil Spring Included: Yes
• Compressed Length: 12.32
• Dust Shield Included: Yes
• Dust Shield Material: Rubber
• Extended Length: 17.8
• Gas Charged: Yes
• Grade Type: Standard
• Heavy Duty Crimping Rings: No
• Housing Material: Steel
• Internal Construction Type: Twin-tube
• Internal Damper Type: Hydraulic
• Lower Mount Type: Cross Pin
• Lower Mounting Isolator Included: Yes

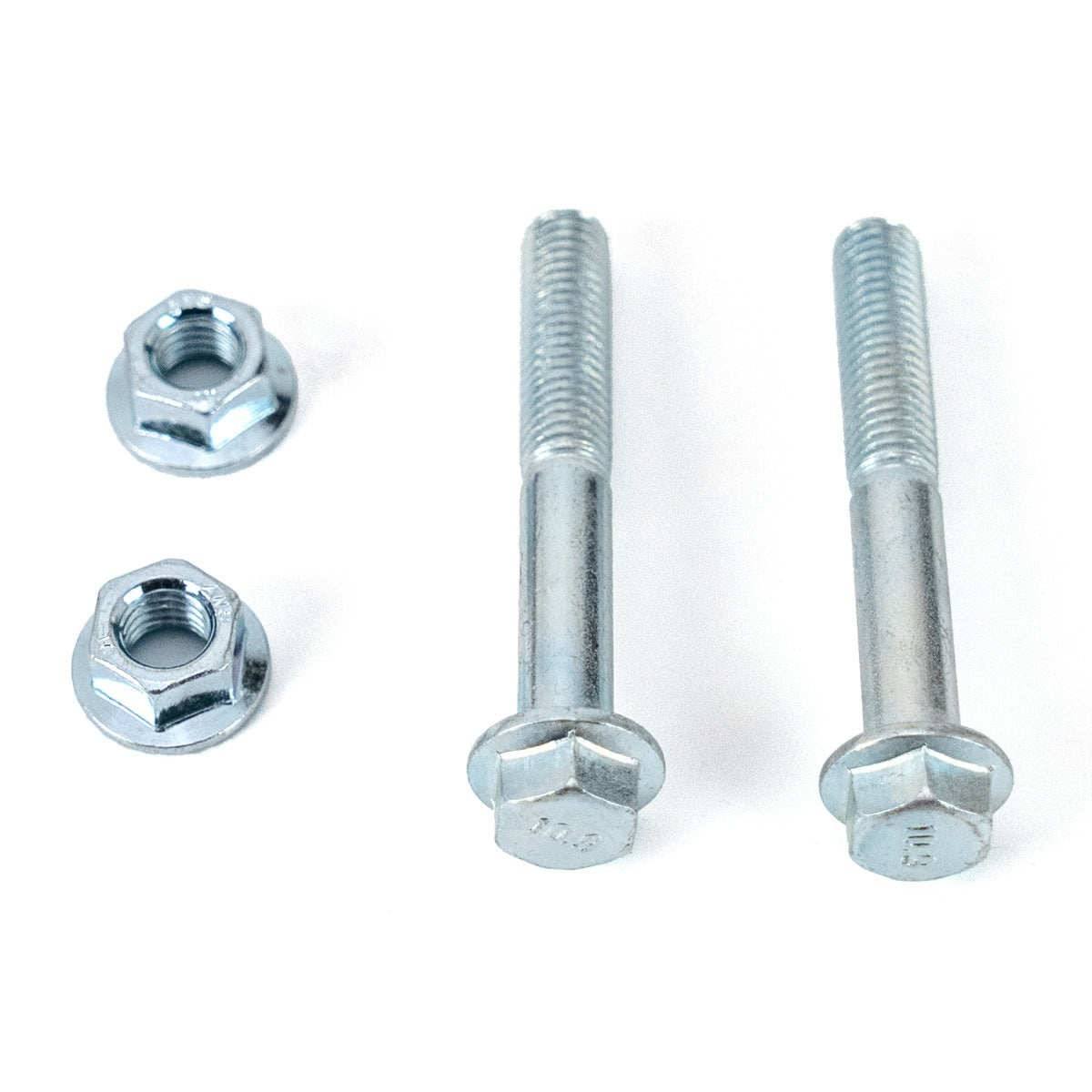

• Mounting Hardware Included: Yes
• New Or Remanufactured: New
• Progressive Spring Rate: No
• Protective Aluminum Can: No
• Shock Absorber Rod End Measuring Point: Shoulder of Stud
• Shock Spring Assisted: Yes
• Shock/strut Color: Black
• Spring Isolators Included: Yes
• Spring Rate Type: Linear
• Spring Seat Included: Yes
• Springs Included: Yes
• Travel Length: 5.48
• Upper Mount Type: Stud
• Upper Mounting Isolator Included: Yes

Replaces OEM part Numbers: 84977478, 84061228, 23151123, 84176631, 23312167, 23464589
