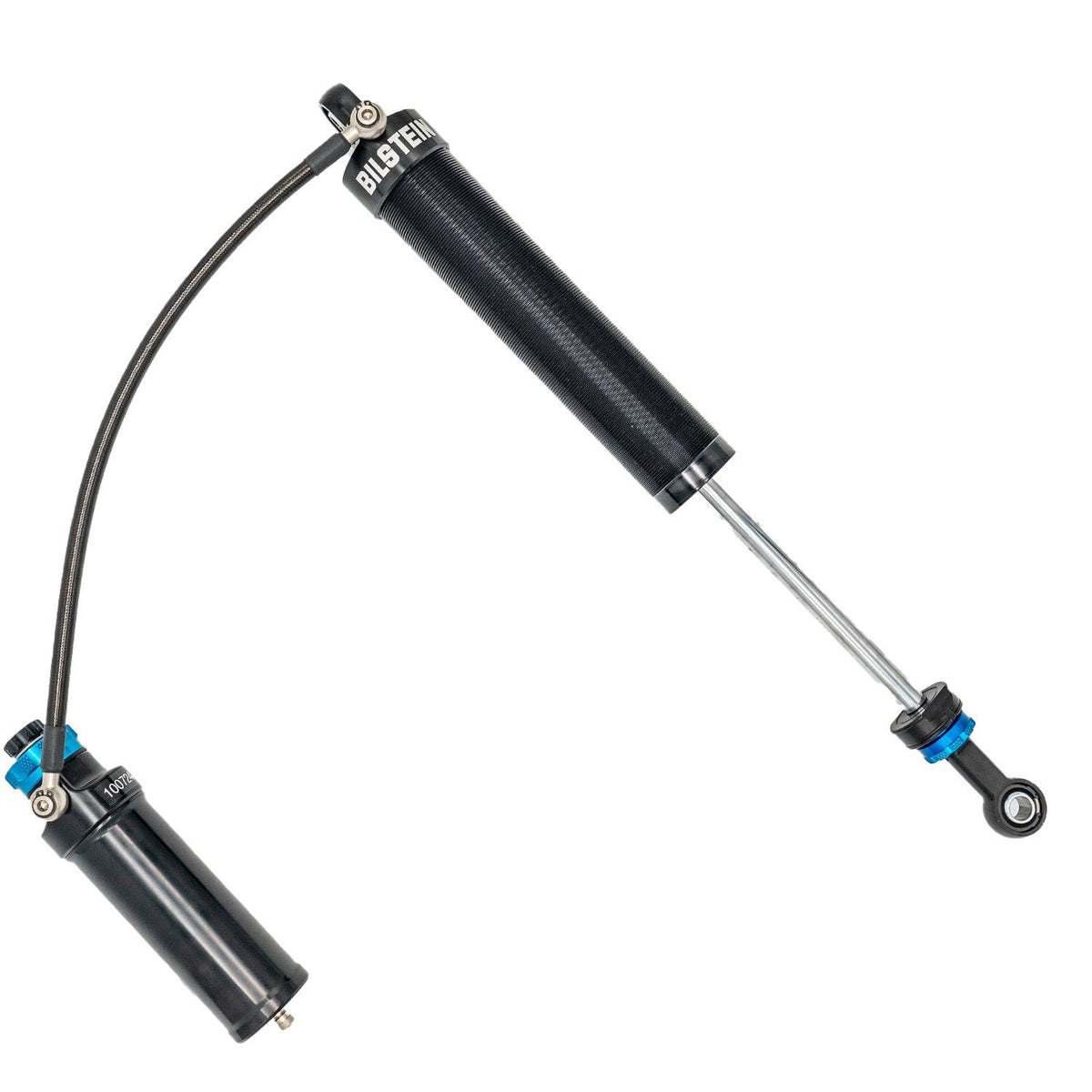

Bilstein 33-349923 AS2-R Series Shock

Bilstein AS2-R Series shock absorbers are designed for motorsports applications and provides premium performance through superior tuning and modular design. The package features an aluminum-bodied remote reservoir with tunable base valve technology and several adjustment options mated to Bilsteins AS2 Series aluminum modular shock. The lightweight threaded body shock can be used with or without coilover hardware. Pistons, piston bands and heims are sold separately to allow the greatest flexibility in upgrade combinations. The AS2-R Series shock absorbers offer racers a versatile damper that maximizes suspension travel and gives an endless range of options for tuning and upgradeability.

Specifications

• Adjustable Damping: Triple Adjustable - Rebound and High and Low Speed Compression
• Body Design: Threaded Body Screw Top (Coilover)
• Body Diameter (ID): 46mm
• Body Material: Aluminum
• Boot Included: No
• Collapsed Length (IN): 14.02
• Collapsed Length (MM): 355.9
• Extended Length (IN): 20.6
• Extended Length (MM): 523.1
• Finish: Clear Anodized
• Internal Design: Monotube
• Lower Mount Type: 1/2in Heim
• Piston Type: Digressive
• Prop 65 - Short Label: WARNING: Cancer & Reproductive Harm - www.P65Warnings.ca.gov
• Spring Seat Included: No
• Upper Mount Type: 1/2in Heim
• Valving Identifier: 5TH COIL HYDRO
