Bilstein B8 5100 Front and Rear Shocks For 0- 2" Lifts 4WD 24-251747, 24-302326

Bilstein's B8 5100 24-251747 shock for your Ram 3500 is one of the top choices for on and off-road enthusiasts looking for a performance shock to improve their vehicle's performance, especially on lifted trucks and SUVs, those who tow or love to take it off-road. Bilstein 5100 Shocks are also available for stock height trucks.

This package is for vehicles with an existing 2" Lift.

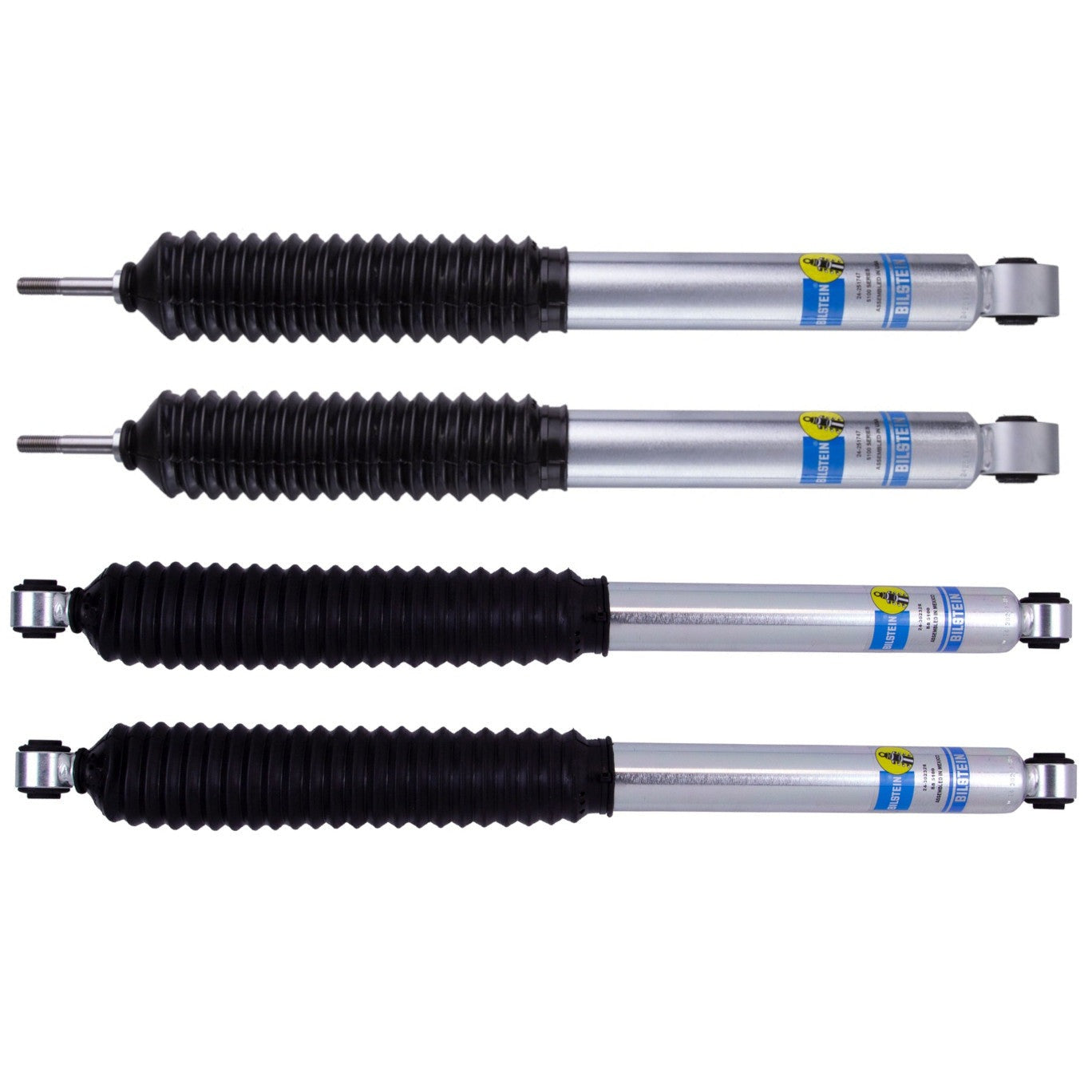

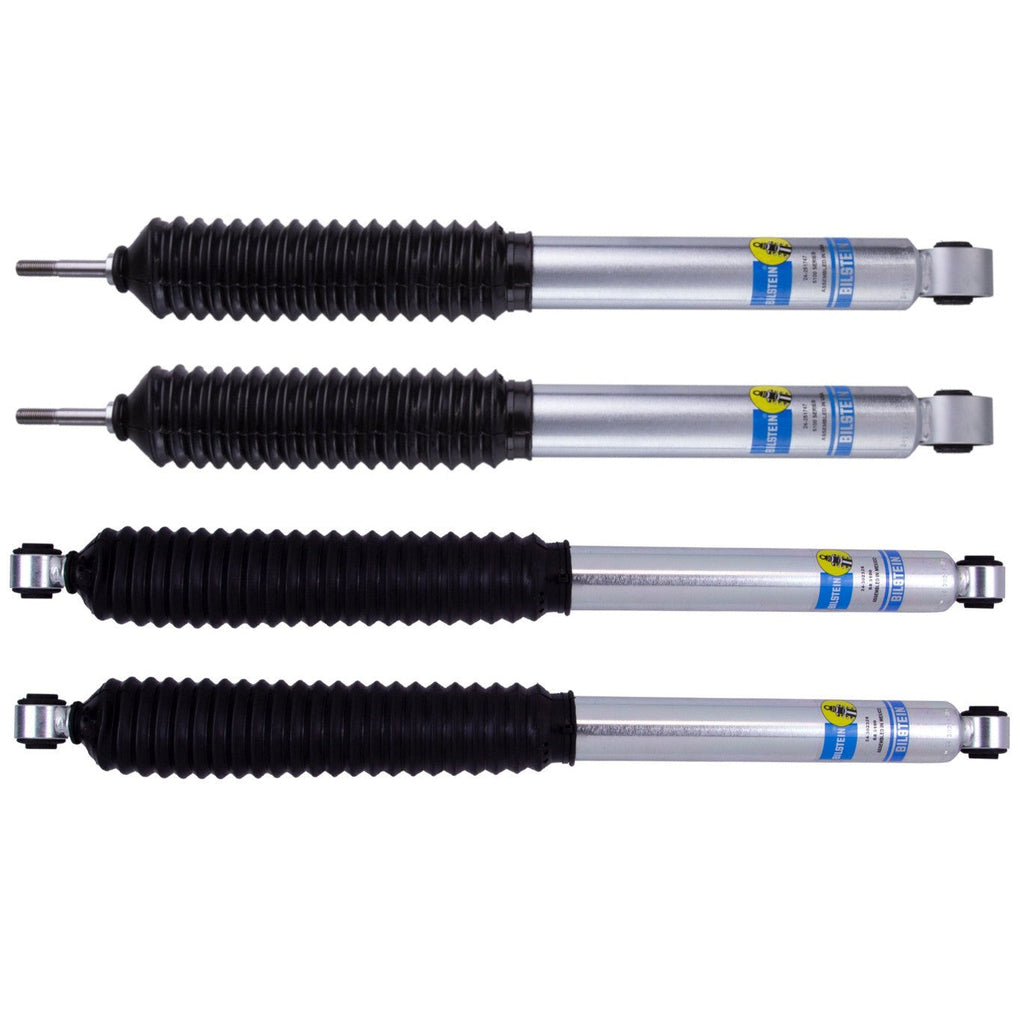

 This package comes with :

  2 - 24-251747 Bilstein Front Shocks
  2 - 24-302326 Bilstein Rear Shocks

Front Shock Specifications

• Adjustable Damping: Non-Adjustable
• Body Design: Smooth Body (Non-Coilover)
• Body Diameter (ID): 46mm
• Boot Included: Black Bellows
• Collapsed Length (IN): 15.04
• Collapsed Length (MM): 382.0
• Extended Length (IN): 22.64
• Extended Length (MM): 575.0
• Finish: Zinc Plated
• Internal Design: Monotube
• Lower Mount Type: Eye 14.1mm
• Reservoir: No
• Spring Seat Included: No
• Upper Mount Type: Stem

Rear Shock Specifications

• Adjustable Damping: Non-Adjustable
• Body Design: Smooth Body (Non-coilover)
• Body Diameter (ID): 46mm
• Boot Included: Black Bellows
• Collapsed Length (IN): 18.25
• Collapsed Length (MM): 463.5
• Extended Length (IN): 29.38
• Extended Length (MM): 746.2
• Finish: Zinc Plated
• Internal Design: Monotube
• Lower Mount Type: Eye 14.1mm
• Reservoir: No
• Spring Seat Included: No
• Upper Mount Type: Eye 14.1mm
