Bilstein B8 5100 Front and Rear Shocks For 3-4" Lifts 24-185523, 24-185417

Bilstein's B8 5100s shock for your Ford Bronco, Ford F-150, F-150 Heritage, Excursion is one of the top choices for on and off-road enthusiasts looking for a performance shock to improve their vehicle's performance, especially on lifted trucks and SUVs, those who tow or love to take it off-road. Bilstein 5100 Shocks are also available for stock height trucks.

This package is for vehicles with an existing 3-4" Lift.

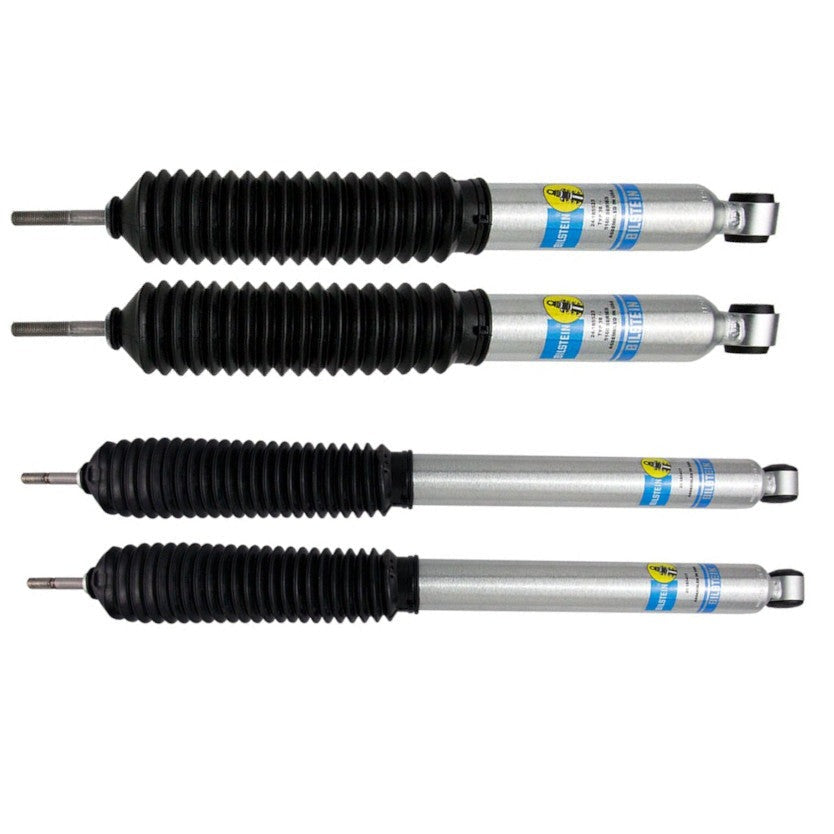

 This package comes with :

  2 - 24-185523 Bilstein Front Shocks
  2 - 24-185417 Bilstein Rear Shocks

Front Shock Specifications

• Adjustable Damping: Non-Adjustable
• Body Design: Smooth Body (Non-Coilover)
• Body Diameter (ID): 46mm
• Boot Included: Blue Straight
• Collapsed Length (IN): 12.17
• Collapsed Length (MM): 309.0
• Extended Length (IN): 18.98
• Extended Length (MM): 482.2
• Finish: Zinc Plated
• Internal Design: Monotube
• Lower Mount Type: Eye 16mm
• Reservoir: No
• Spring Seat Included: No
• Upper Mount Type: Stem

Rear Shock Specifications

• Adjustable Damping: Non-Adjustable
• Body Design: Smooth Body (Non-Coilover)
• Body Diameter (ID): 46mm
• Boot Included: Black Bellows
• Collapsed Length (IN): 16.38
• Collapsed Length (MM): 416.0
• Extended Length (IN): 27.32
• Extended Length (MM): 694.0
• Finish: Zinc Plated
• Internal Design: Monotube
• Lower Mount Type: Eye 12mm
• Reservoir: No
• Spring Seat Included: No
• Upper Mount Type: Stem
