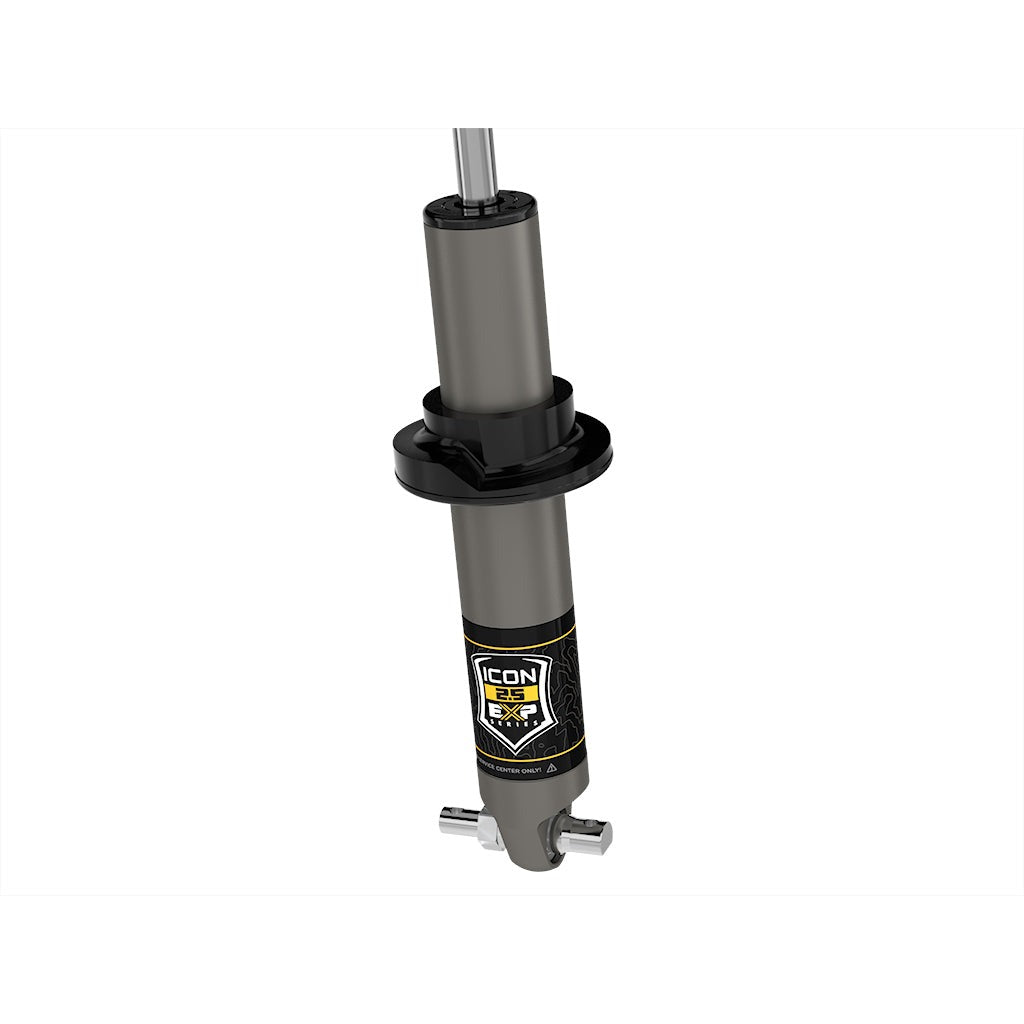

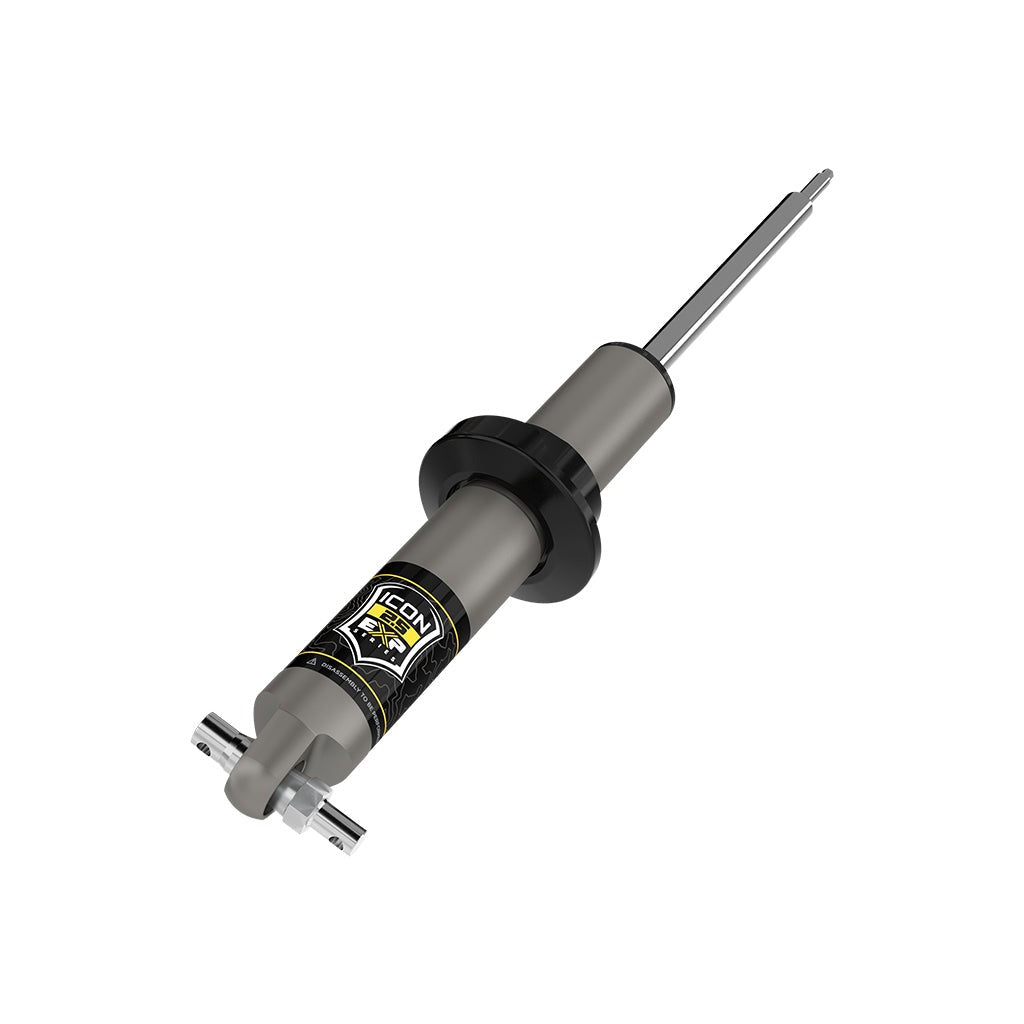

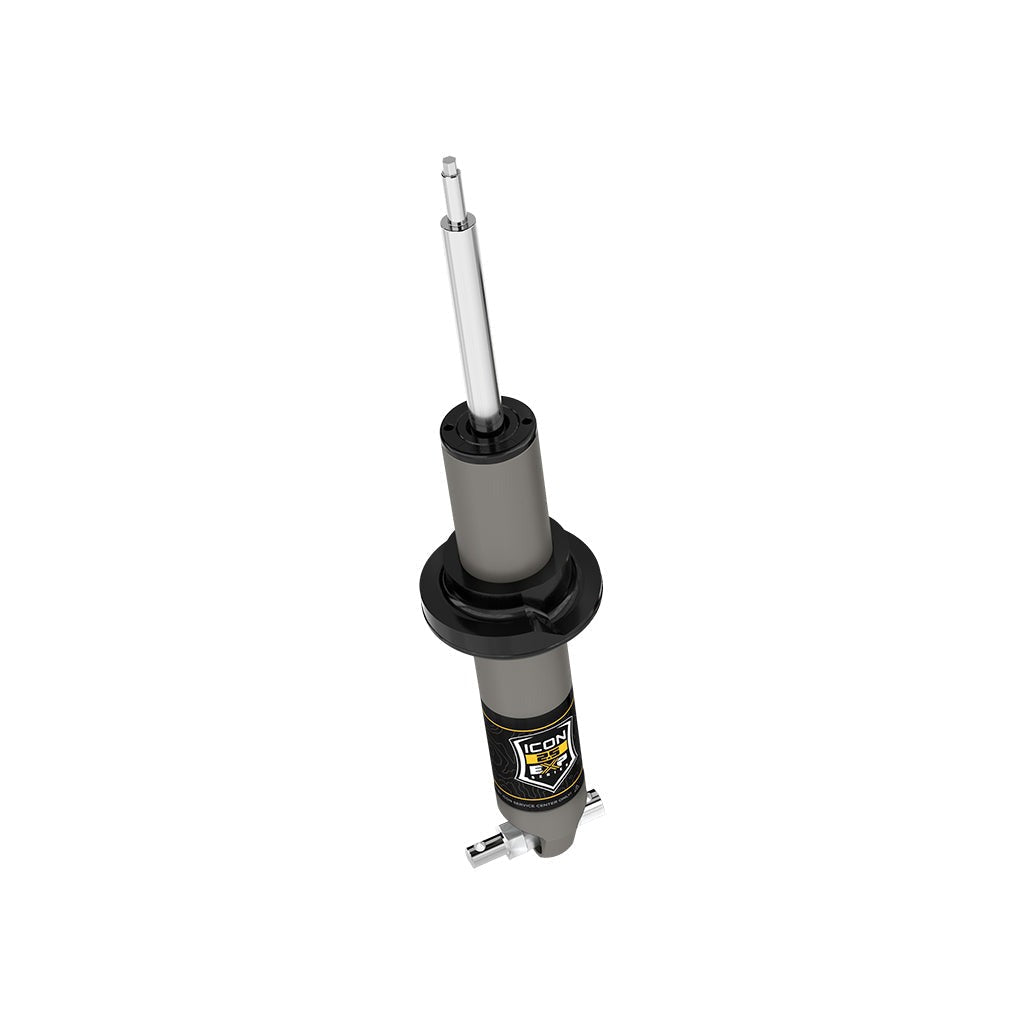

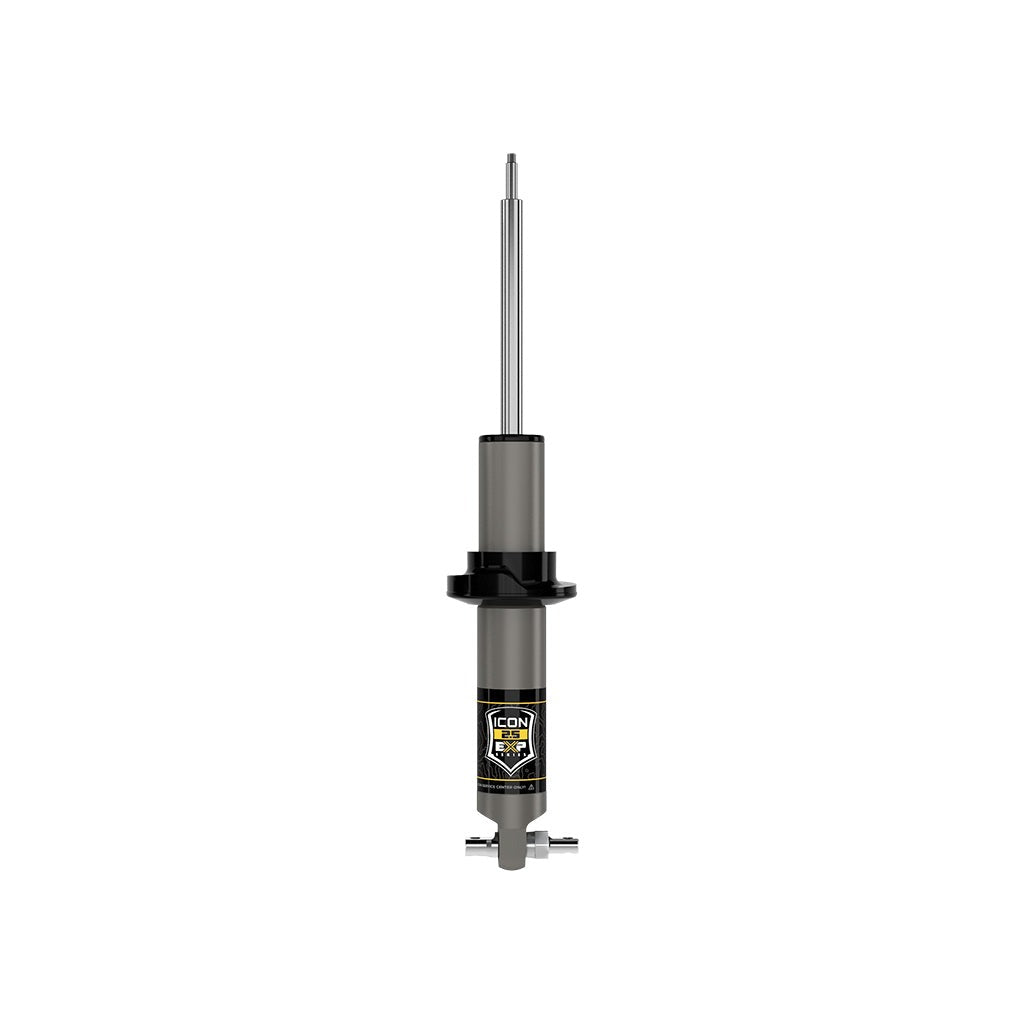

ICON 48602 Ford Bronco Hoss 2.0 Pkg Front 0-2" Lift 2.5 EXP Coilover

The 2021-2023 Ford Bronco EXP Series front shock absorbers by ICON Vehicle Dynamics combine the performance of a fully rebuildable 2.5-inch diameter premium shock absorber with the convenience and cost-benefits of re-using the Bronco's factory coil spring and other components. EXP bridges the gap between spacer lifts and threaded bodied coilovers, providing suspension lift, custom-tuned performance and maximum travel, all in an economical package.

FEATURES

• Vehicle specific design for 2021-2023 Ford Bronco with HOSS. 2.0 Suspension Package
• Vehicle specific tuned for superior shock damping and control
• 2.5 Aluminum Series Shock with Internal Reservoir
• Adjustable ride heights from 0-2" of front lift over stock with the use of snap ring
• Utilizes factory coil and coil hardware
• Inverted shaft up design featuring 7/8" diameter, induction hardened, chrome plated shaft
• One-piece, impact extruded, hard anodized aluminum cylinder offer excellent corrosion resistance and consistent finish
• CNC machined 6061 aluminum components with a black anodized finish
• PTFE lined spherical bearing for extended longevity and minimal deflection
• High strength alloy CNC machined lower bar pin
• 100% Bolt-on - no cutting or welding necessary for installation
• Fully rebuildable and re-tunable

SPECIFICATIONS

• Adjustable Damping: NO
• Adjustable Height: Yes
• Body Diameter (IN): 2.5
• Boot Included: No
• Coil Over Springs Included: No
• Damping Type: Oil
• Dust Shield: No
• Gas Charged: Yes
• Grade Type: Performance
• Lower Mount Type: BAR PIN
• Material: Aluminum
• Material: Steel
• Maximum Lift (IN): 2
• Minimum Lift (IN): 0
• OEM Wheels & Tires Fitment: Yes
• Remote Reservoir: NO
• Service Parts: 252010 - 2.5 IFP REBUILD KIT
• Shaft Diameter (IN): 0.875
• Shock Absorber Body End Measuring Point: Top of Upper Mount Plate
• Shock Absorber Rod End Measuring Point: Flat on Bar Pin
• Spring Color: Black
• Spring Material: Steel
• Spring Rate Type: Linear
• Upper Mount Type: Mounting Plate

TECH NOTES

• OEM Wheels & Tires Fitment: Yes
• Recommended Aftermarket Wheels (Without Sasquatch Package): ICON Alloys - 17x8.5" w/ 5.75" Backspace / 25mm Offset
• Recommended Aftermarket Wheels (With Sasquatch Package): ICON Alloys - 17x8.5" w/ 4.75" Backspace / 0mm Offset
• Recommended Aftermarket Tires (Without Sasquatch Package): 35" x 12.50" (Requires high clearance crash bars, ICON part number 42000. 37" tire packagesrequire coilover bump stop spacers along with trimming and modifications)
• Recommended Aftermarket Tires (With Sasquatch Package): 35" x 12.50" (37" tire packages require coilover bump stop spacers and may also require fender trimming and modifications)
• Only compatible with 2021-2023 Ford Broncos equipped with HOSS 2.0 Suspension Package
• EXP Coilovers are sold individually. A quantity of 2 are required per vehicle.
• Recommend ICON High Clearance Crash Bar Kit, part number 42000, when running 35" tires on Broncos without Sasquatch package
• 37" tires require bump stop spacer kit part number 611082
• When running 37" tires on Broncos without Sasquatch package crash bar removal may be required, but is not recommended
• Lift heights above 1.5" over stock may require aftermarket front upper control arms to maintain ideal front end alignment
• Not compatible with Bronco Raptor
