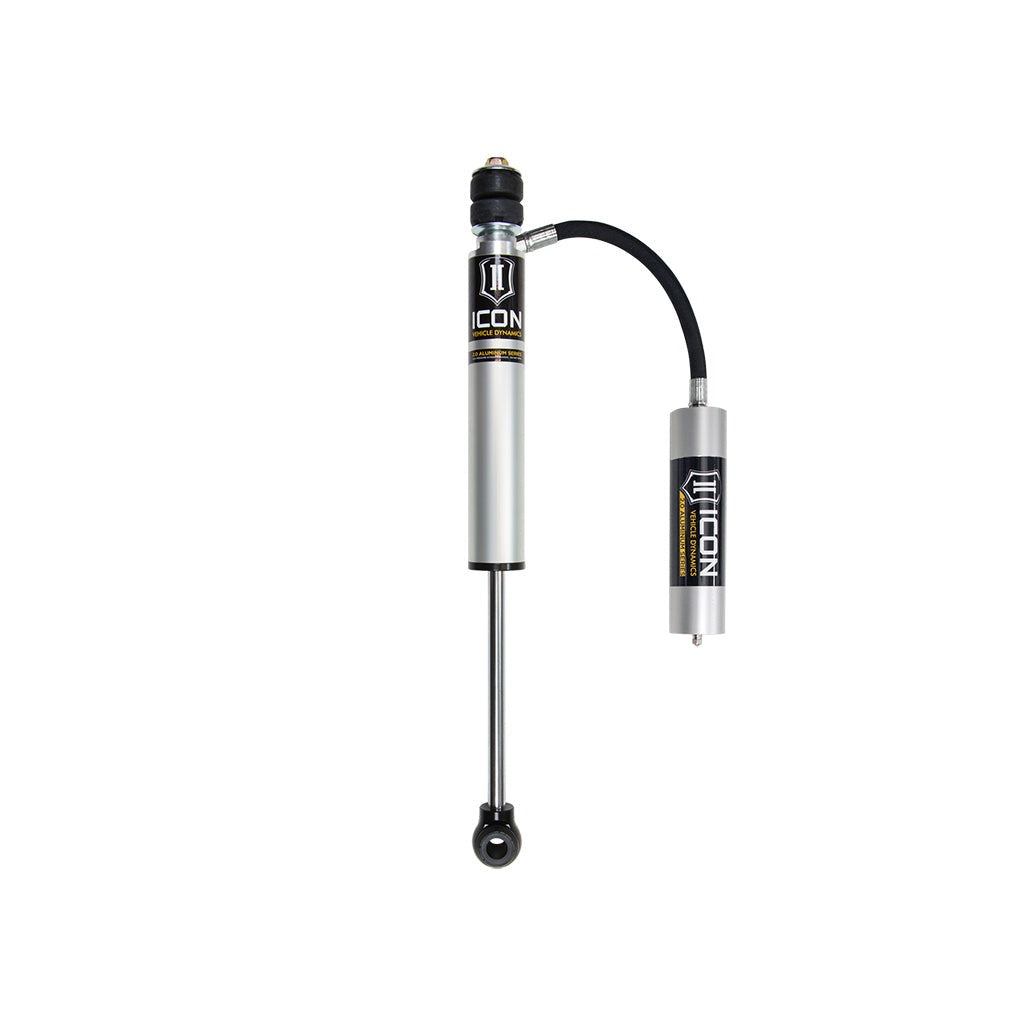

ICON 56516R Tundra 0-1.5"/Sequoia 0-3" Rear 2.0 VS Shock Remote Reservoir

ICON Vehicle Specific (V.S.) 2.0 Aluminum Series shock absorbers are the ultimate in cost effective upgrades, specifically tailored by ICON engineers for your application. The V.S. 2.0 Aluminum Series shocks are a high-quality upgrade for the everyday street driver and weekend warrior looking for improved on and off-road performance. Like all ICON shock absorbers, V.S. 2.0 Aluminum Series shocks are fully rebuildable and re-tunable. For those using their vehicle in extreme off-road situations, consider the ICON V.S. 2.5 Series shock to handle extra abuse and punishment your suspension will need to endure.

FEATURES

• Premium grade 5WT shock oil for consistent suspension damping along a wide temperature range
• Nitrogen charged monotube design with remote reservoir
• One piece linear/digressive piston design with vehicle specific valving for unsurpassed performance and ride quality on and off-road
• 5/8" chrome plated hardened steel shaft resists corrosion and pits
• 6061 aluminum rod end, top cap, and internals ensure strength and durability
• Polyurethane bushings, zinc plated sleeves, and forged steel mounting stems for OE factory type fitment
• 6063 anodized aluminum body and reservoir tubing for superb heat dissipation, excellent corrosion resistance, and high-tech appearance
• Nitrile rubber top out bumper for noise free operation
• Fully rebuildable and re-tunable

SPECIFICATIONS

• Adjustable Damping: Yes
• Body Diameter (IN): 2
• Boot Included: No
• Bore Diameter (IN): 1.75
• Bushing Color: Black
• Bushing Included: yes
• Bushing Material: Polyurethane
• Bushing Material: Rubber
• Cylinder Color: Silver
• Cylinder Material: Aluminum
• Damping Type: Oil
• Dust Shield: No
• External Reservoir: Yes
• Finish: Anodized
• Gas Charged: Yes
• Grade Type: Performance
• Hydraulic Lockout: No
• Includes Bump Stop: No
• Internal Construction Type: Single Tube
• Internal Rebound Spring: Yes
• Lower Mount Type: Eyelet
• Mounting Hardware Included: No
• Service Parts: 202003 - 2.0 REMOTE RESI REBUILD KIT
• Shaft Diameter (IN): 0.625
• Shaft Material: Chrome
• Shock Absorber Body End Measuring Point: Shoulder of Stem
• Shock Absorber Rod End Measuring Point: Center of Eyelet
• Suspension Type: Spring
• Upper Mount Type: Stem

TECH NOTES

• Compatible with 0-1.5" of rear lift on non-TRD Tundras or 0-1" lift on TRD Tundras equipped with rear coil springs
• Compatible with 0-3" of rear lift on Tundras equipped with rear OE Load-leveling Rear Height Control Air Suspension
• Compatible with 0-3" of rear lift on 2023 Sequoias equipped with rear coil springs
• If upgrading a vehicle equipped with Adaptive Variable Suspension (AVS) all other vehicle systems remain functional
• Not compatible with Sequoia TRD Pro
