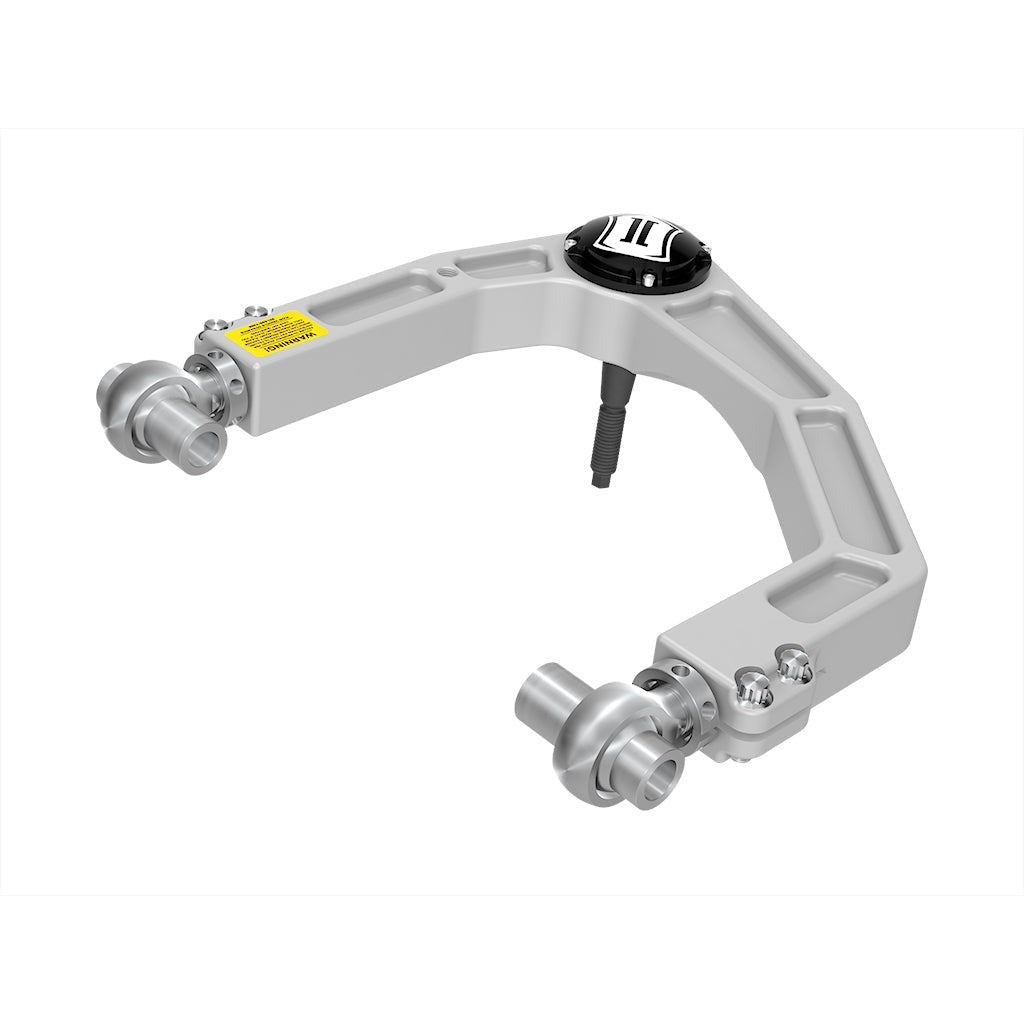

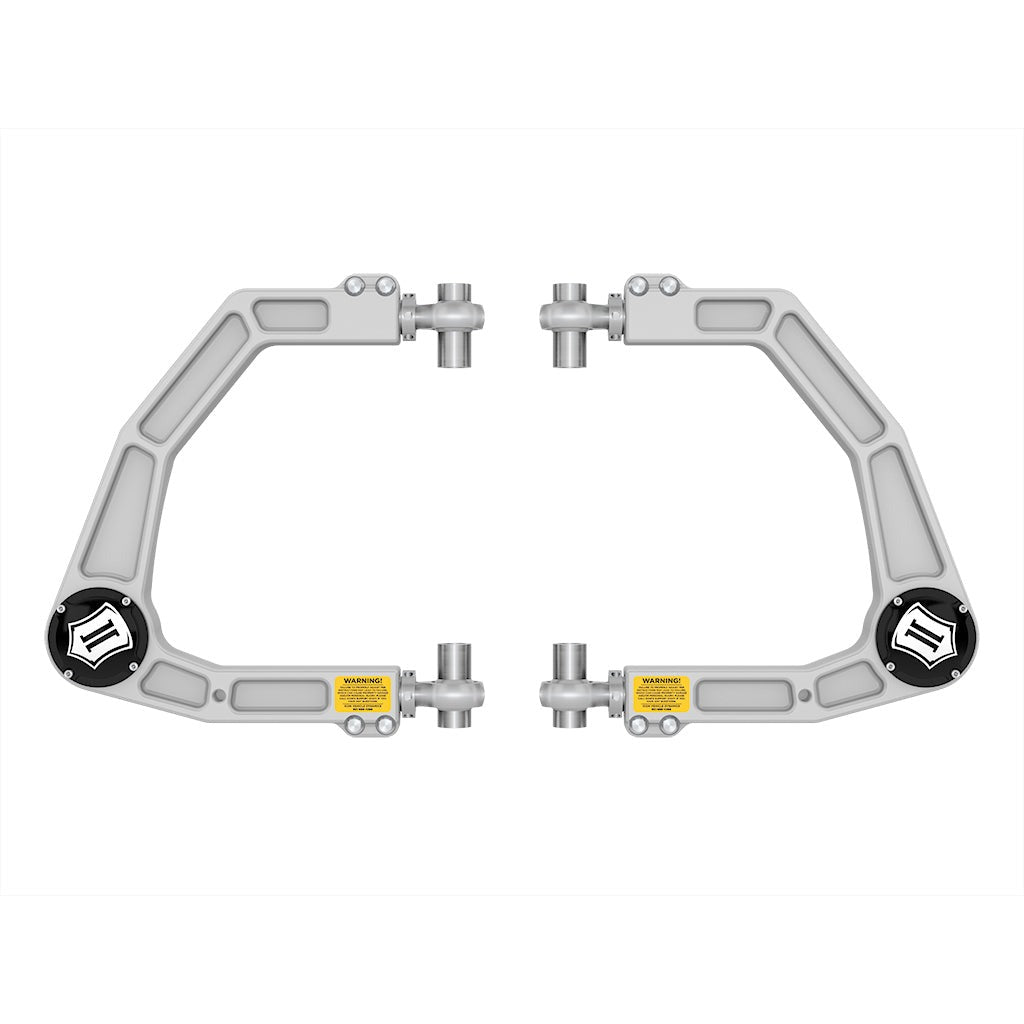

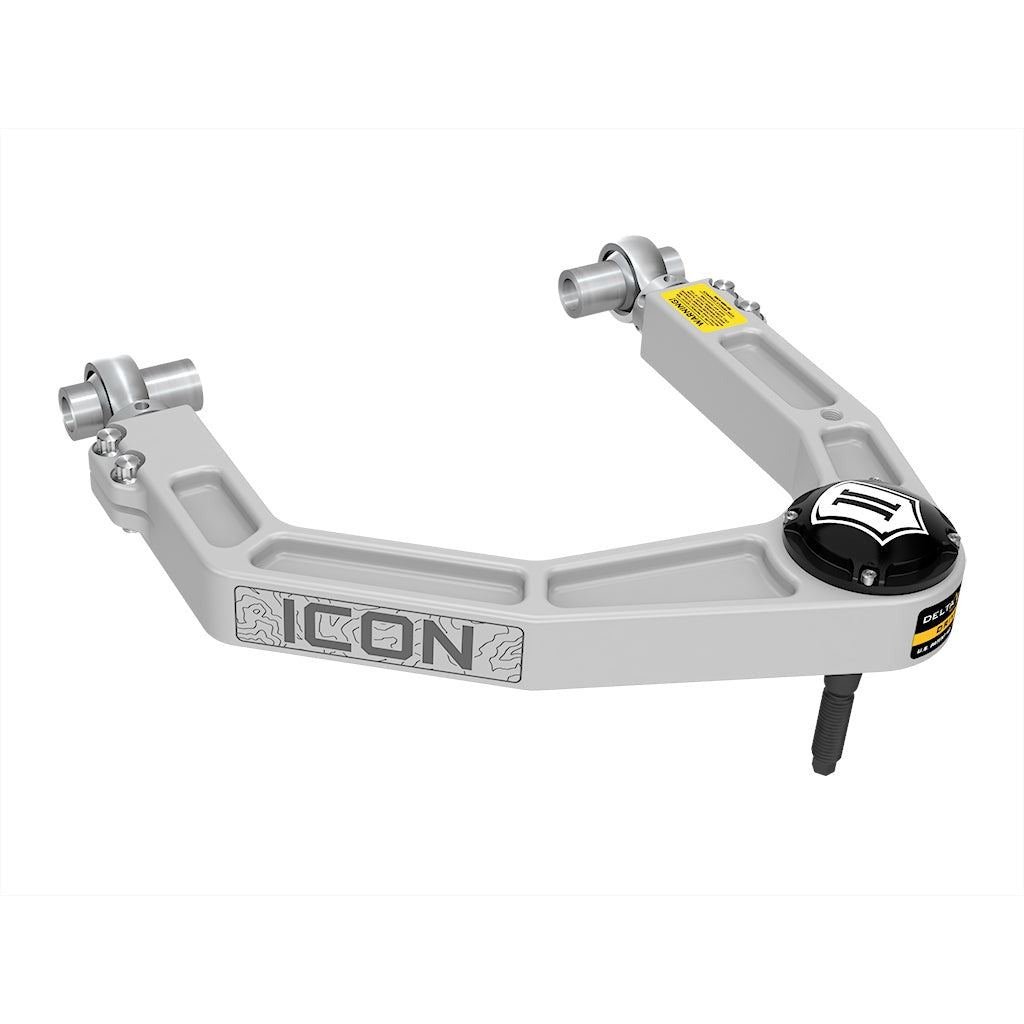

ICON 58561DJ Tundra/Sequoia Billet Upper Control Arm w/Delta Joint Pro Kit

This ICON billet aluminum upper control arm kit is designed to improve the overall performance of the 2022-2023 Toyota Tundra/2023 Toyota Sequoia with corrected front-end geometry, increased camber and caster adjustment, and improved suspension component clearance. Constructed of CNC machined 6061 billet aluminum utilizing a hybrid H-beam cross-section that is light-weight and resists bending forces better than tubular arms. Replacing the OE ball joint with the all-new, serviceable, and rebuildable ICON Delta Joint PRO allows for full bump and droop travel of the front suspension while eliminating bind. FK Rod End 3/4" heim joints provide precise and smooth function throughout the range of travel while ICON's signature double adjuster sleeve allows for on-vehicle camber and caster adjustment. Included with all components and hardware necessary for a complete install, these billet UCAs are the perfect front end upgrade for the 2022-2023 Toyota Tundra or 2023 Toyota Sequoia.

FEATURES

• CNC machined 6061 billet aluminum construction with satin anodized finish
• Corrects suspension geometry and allows for proper wheel alignment on Tundras with up to 3" of lift
• Quick, precise, on-vehicle adjustment for both caster and camber
• Delta Joint PRO allows maximum articulation without binding
• Delta Joint PRO is 100% serviceable and rebuildable
• FK Rod Ends at chassis pivots for strength and precision driving characteristics
• Built in O-ring sealed dust cover cap

SPECIFICATIONS

• Adjustable: Yes
• Ball Joint Included: Yes
• Ball Joint Mounting Type: Press In
• Ball Joint Stud Type: Threaded
• Bushing Material: Rod End Bearing
• Bushings Included: Yes
• Control Arm Color: Silver
• Control Arm Construction: Billet
• Control Arm Material: Aluminum
• Finish: Anodized
• Grade Type: Performance
• Grease Fitting Included: yes
• Mounting Hardware Included: Yes
• Pre-Greased: Yes
• Suspension Grade Type: Performance

TECH NOTES

• Factory Wheels & Tires Fitment: Yes
• Recommended Aftermarket Wheels: ICON Alloys - 17" x 8.5" with 5.75" Backspace / 25mm Offset
• Recommended Aftermarket Tires: 35" x 12.50"
• Compatible with 2022-2023 Tundra without TRD Sport Package equipped with 0-3.5" of front lift over stock
• Compatible with 2022-2023 Tundra with TRD Sport Package equipped with 0-4.5" of front lift over stock
• Compatible with 2022-2023 Tundra TRD Pro equipped with 0-1.75" of front lift over stock
• Compatible with ICON 2022-2023 Tundra 6" Lift Performance Suspension System but NOT compatible with 6" lift kits from other manufacturers
• Compatible with 2023 Sequoia equipped with 0-4.5" of front lift over stock
