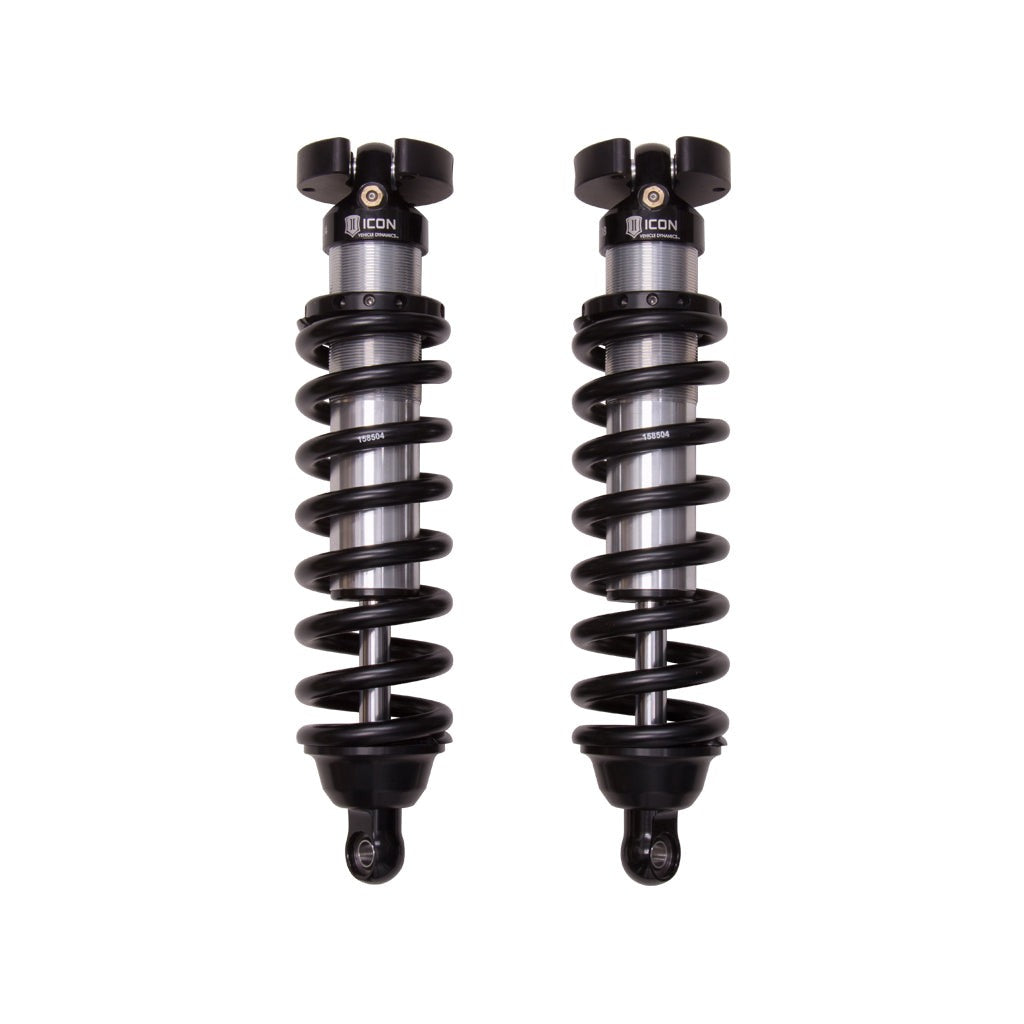

ICON 58615 Toyota Tacoma/4Runner 2.5 VS Extended Travel Coilover Kit

These adjustable coil-over shocks have proven their strength and longevity for years on end and they keep going. These shocks offer the best ride quality and handling. They increase suspension travel and dramatically increase the capabilities of your Tacoma or 4Runner's front suspension. These coil-over's are meant to be installed with an aftermarket uniball upper control arm kit to ensure the proper amount of wheel travel and to prevent premature ball joint wear. These are a Race-Proven shock designed for the daily driver and the avid off-roader all in one!

FEATURES

• Adjustable ride height from 0" - 3"
• Race shock piston with flutter stack compression valving
• Cad-plated threaded body
• Billet aluminum upper mount
• 5/8" PTFE-lined spherical bearings
• Completely re-buildable
• 2.5" shock diameter to prevent overheating
• Chrome-silicon spring
• 250 PSI nitrogen-charged internal reservoir

SPECIFICATIONS

• Body Diameter (IN): 2.5
• Coil Over Springs Included: Yes
• Damping Type: Oil
• Dust Shield: No
• Gas Charged: yes
• Grade Type: Performance
• Lower Mount Type: Eyelet
• OEM Wheels & Tires Fitment: Yes
• Remote Reservoir: NO
• Service Parts: 254100G - 1 GALLON ICON PERFORMANCE SHOCK OIL
• Service Parts: 252002 - UNIVERSAL SPANNER WRENCH (2.0/2.5/3.0)
• Service Parts: 611067 - TACOMA/FJ/4RNR LOWER CO BRG/SPCR KIT
• Service Parts: 252004 - ECONOMY NEEDLE CHARGING TOOL
• Service Parts: 252001 - 2.5 FIXED SPANNER WRENCH
• Service Parts: 252003 - SEAL INSTALL TOOL 2.5/3.0
• Service Parts: 611019 - COILOVER HARDWARE KIT PAIR
• Service Parts: 257301 - 7/8 SHAFT 10.25 OAL, 6.00 TRAVEL
• Service Parts: 252010 - 2.5 IFP REBUILD KIT
• Shaft Diameter (IN): 0.875
• Shock Absorber Body End Measuring Point: Top of Upper Mount Plate
• Shock Absorber Rod End Measuring Point: Center of Eylet
• Spring Color: Black
• Spring Material: Steel
• Spring Rate (PPI): 650
• Upper Mount Type: Mounting Plate

TECH NOTES

• Factory Wheels & Tires Fitment: Yes
• Recommended Aftermarket Wheels: 8.5" wide wheel with 4.75" backspace
• Recommended Aftermarket Tires: 33" x 11.50" (Larger Tires May Fit but Fender Trimming and Modifications will be Required)
• Aftermarket front upper control arms required for installation
