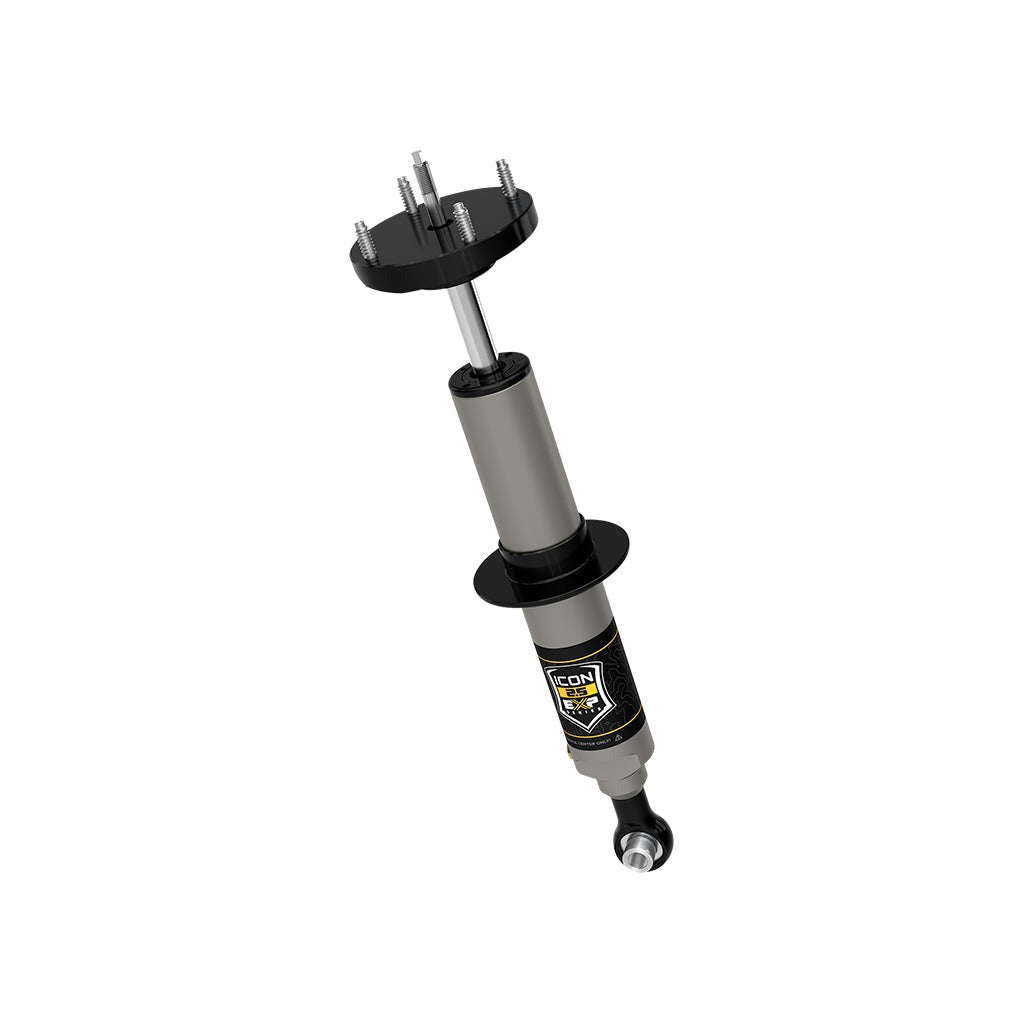

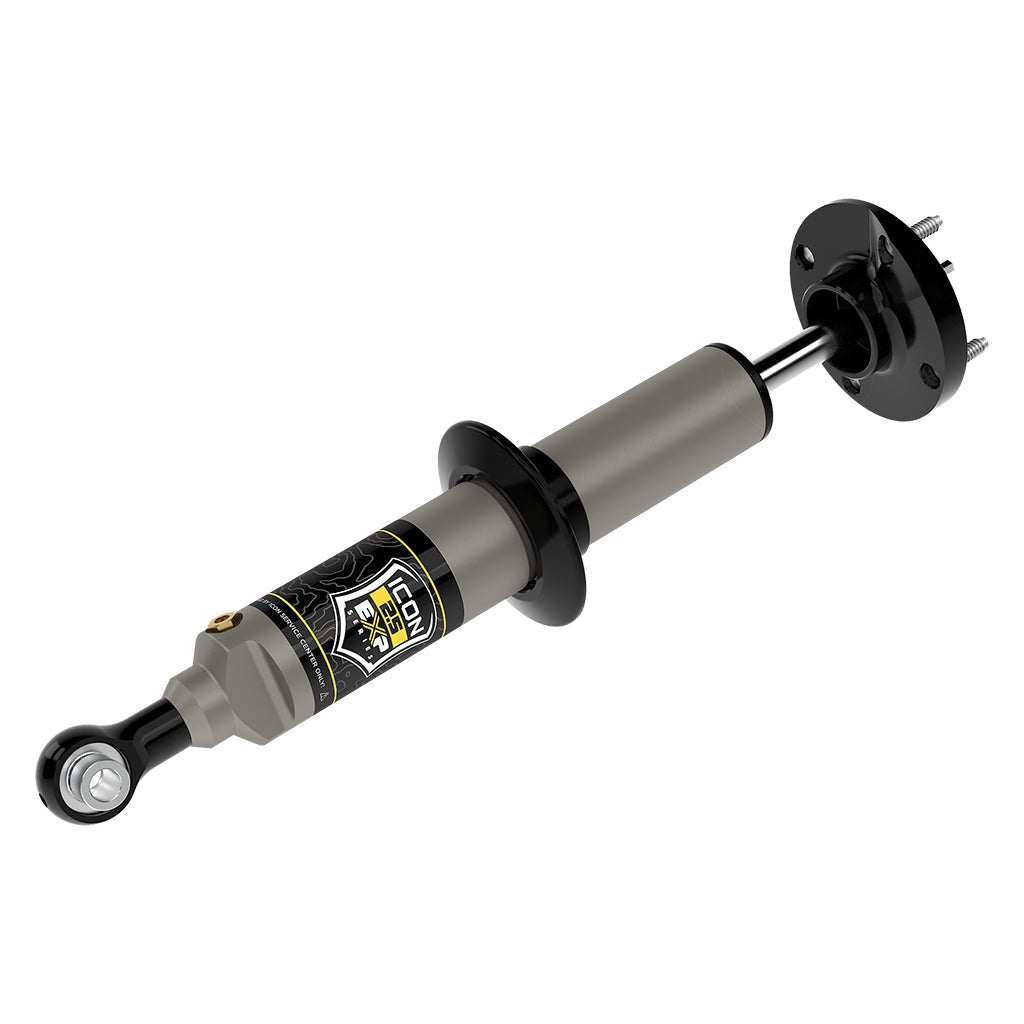

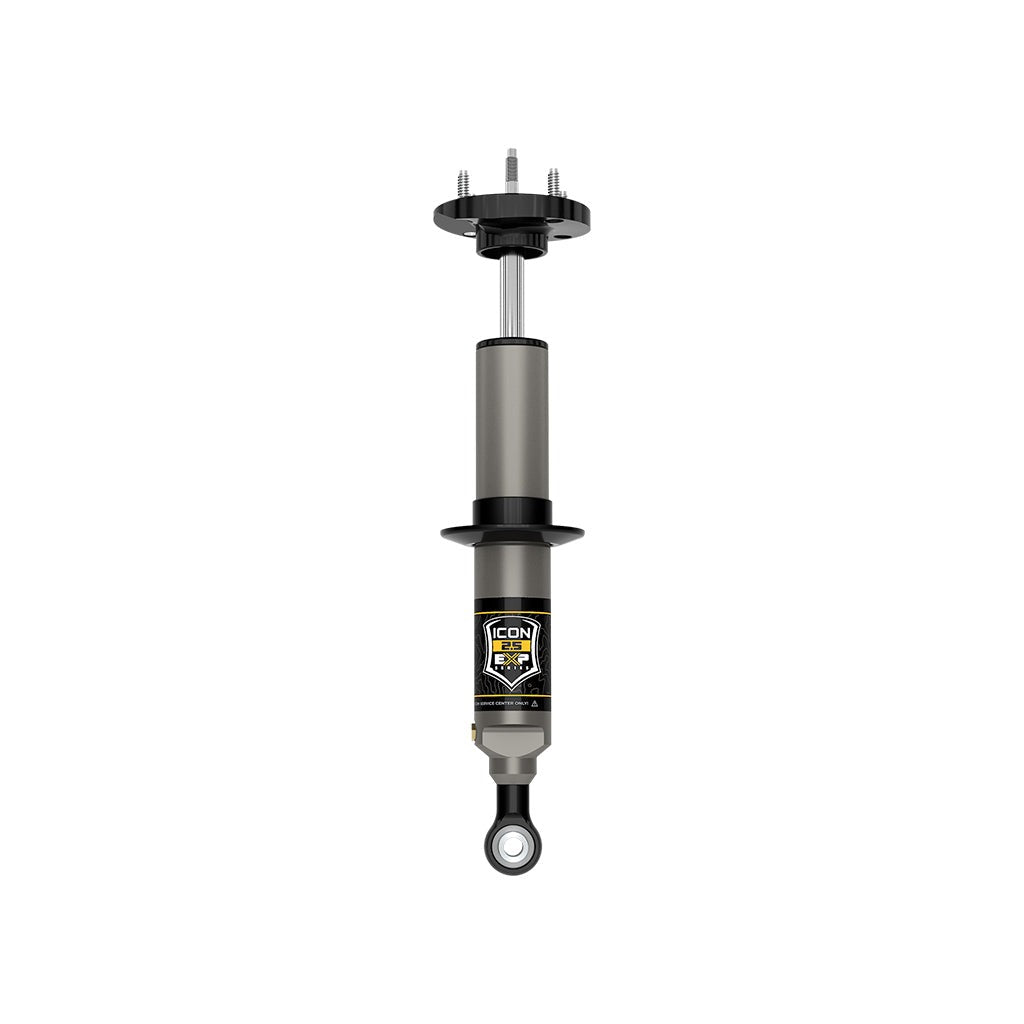

ICON 58655 Toyota Tundra Front EXP Coilover

EXP Series is based on ICON's proven 2.5-inch diameter Aluminum Series shock absorber, featuring a one-piece impact-extruded aluminum shock body. Hard anodizing provides a great-looking, consistent finish with superior resistance to abrasion and corrosion. The massive 7/8-inch diameter shaft is induction hardened and chrome plated. 2007-2021 Toyota Tundra EXP shocks mount in a shaft-up orientation and include the upper shock mount and spring seat.

FEATURES

• Vehicle specific design for 2007-2021 Toyota Tundra
• Vehicle specific tuned for superior shock damping and control
• 2.5 Aluminum Series Shock with Internal Reservoir
• Adjustable ride heights from 0-2.25" of front lift over stock with the use of snap ring
• Utilizes factory coil and coil hardware
• Inverted shaft up design featuring 7/8" diameter, induction hardened, chrome plated shaft
• Impact extruded, hard anodized aluminum cylinder offer excellent corrosion resistance and consistent finish
• CNC machined 6061 aluminum components with a black anodized finish
• PTFE lined spherical bearing for extended longevity and minimal deflection
• Fully rebuildable and re-tunable

SPECIFICATIONS

• Adjustable Damping: NO
• Adjustable Height: Yes
• Body Diameter (IN): 2.5
• Boot Included: No
• Coil Over Springs Included: No
• Damping Type: Oil
• Dust Shield: No
• Gas Charged: Yes
• Grade Type: Performance
• Lower Mount Type: Eyelet
• Material: Aluminum
• Material: Steel
• Maximum Lift (IN): 2.25
• Minimum Lift (IN): 0
• Remote Reservoir: NO
• Service Parts: 252010 - 2.5 IFP REBUILD KIT
• Shaft Diameter (IN): 0.875
• Shock Absorber Body End Measuring Point: Center of Eyelet
• Shock Absorber Rod End Measuring Point: Shoulder of Stem
• Upper Mount Type: Stem

TECH NOTES

• OEM Wheels & Tires Fitment: Yes
• Recommended Aftermarket Wheels: ICON Alloys - 17x8.5 with 5.75" Backspace / 25mm Offset
• Recommended Aftermarket Wheels: ICON Alloys - 18x9 with 6.00" Backspace / 25mm Offset
• Recommended Aftermarket Wheels: ICON Alloys - 20x9 with 5.625" Backspace / 16mm Offset
• Recommended Aftermarket Tires: 35" x 12.50" (Minor fender trimming may be required)
• APPLICATION NOTE #55: SHOCKS ARE FULLY SERVICEABLE. LIFT HEIGHTS INDICATED ARE FOR A STOCK EQUIPPED VEHICLE.
• APPLICATION NOTE #110: TRIMMING REQUIRED FOR RECOMMENDED TIRE SIZE
• APPLICATION NOTE #144: NOT COMPATIBLE WITH TRD PRO
