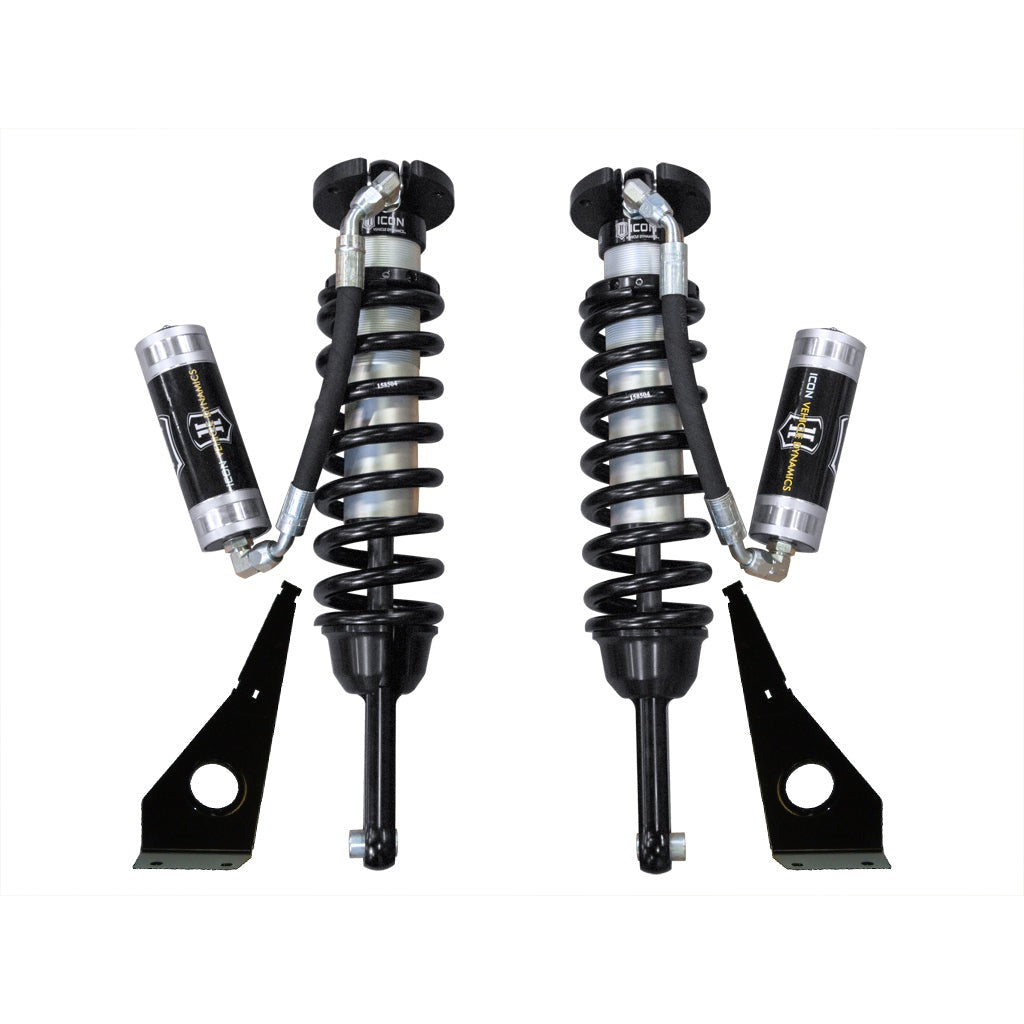

ICON 58746 Toyota 4Runner/FJ Cruiser 2.5 VS Remote Reservoir Coilover Kit

ICON Vehicle Dynamics has taken their already perfect performing coilover shocks and given it the heat dissipation and long lasting performance of a full blown race shock. All of this has been developed to bolt on and install with ease. They increase suspension travel and dramatically increase the capabilities of your FJ Cruiser or 4Runner's front suspension. These coilovers come complete with all the hardware necessary to complete the installation as well as a sway bar relocation bracket kit to adjust the location of the sway bar to clear the larger shock. These coil-over's are meant to be installed with an aftermarket uniball upper control arm kit to ensure the proper amount of wheel travel and to prevent premature ball joint wear.

FEATURES

• Adjustable ride height from 0" - 3.5"
• Race shock piston with flutter stack compression valving
• Kit Includes Sway bar relocation brackets
• Kit also Includes Reservoir Mounting Brackets
• Cad-plated threaded body / Extreme Weather Plating Option Available
• Billet aluminum upper mount
• 5/8" PTFE-lined spherical bearing
• Completely re-buildable
• Hose Length Optimized for Increased Fluid Transfer
• Mounting Bracket Orients Reservoir for Optimum Tire Clearance
• External Reservoir Ensures Maximum Cooling
• Chrome-silicon spring
• 250 PSI nitrogen-charged internal reservoir

SPECIFICATIONS

• Adjustable Damping: NO
• Adjustable Height: yes
• Body Diameter (IN): 2.5
• Boot Included: No
• Coil Over Springs Included: Yes
• Damping Type: Oil
• Dust Shield: No
• Gas Charged: yes
• Grade Type: Performance
• Lower Mount Type: Eyelet
• OEM Wheels & Tires Fitment: Yes
• Remote Reservoir: Yes
• Service Parts: 252002 - UNIVERSAL SPANNER WRENCH (2.0/2.5/3.0)
• Service Parts: 254100G - 1 GALLON ICON PERFORMANCE SHOCK OIL
• Service Parts: 252003 - SEAL INSTALL TOOL 2.5/3.0
• Service Parts: 611019 - COILOVER HARDWARE KIT PAIR
• Service Parts: 257301 - 7/8 SHAFT 10.25 OAL, 6.00 TRAVEL
• Service Parts: 252011 - 2.5 PIGGYBACK/REMOTE RESI/BYPASS REBUILD KIT
• Service Parts: 191016 - 7.5" FINNED RESI UPGRADE KIT
• Service Parts: 252001 - 2.5 FIXED SPANNER WRENCH
• Service Parts: 611067 - TACOMA/FJ/4RNR LOWER CO BRG/SPCR KIT
• Shaft Diameter (IN): 0.875
• Shock Absorber Body End Measuring Point: Top of Upper Mount Plate
• Shock Absorber Rod End Measuring Point: Center of Eylet
• Spring Color: Black
• Spring Material: Steel
• Spring Rate (PPI): 650
• Upper Mount Type: Mounting Plate

TECH NOTES

• Factory Wheels & Tires Fitment: Yes
• Recommended Aftermarket Wheels: 8.5" wide wheel with 4.75" backspace
• Recommended Aftermarket Tires: 33" x 11.50" (Larger Tires May Fit but Fender Trimming and Modifications will be Required)
