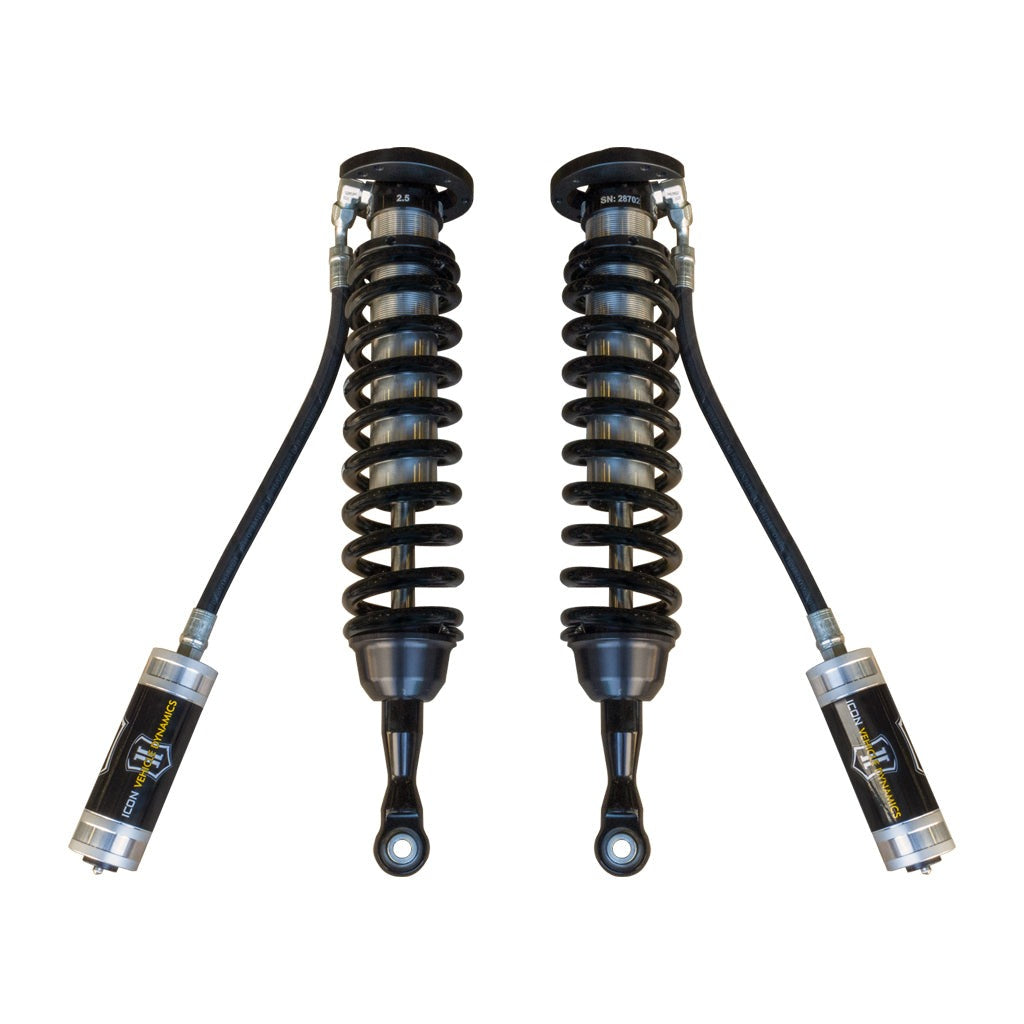

ICON 58750 Toyota Tundra 2.5 VS Remote Reservoir Coilover Kit

ICON Vehicle Dynamics has taken their already perfect performing coil-over shocks and given it the heat dissipation and long lasting performance of a full blown race shock. All of this has been developed to bolt on and install with ease. They increase suspension travel and dramatically increase the capabilities of your Tundra's front suspension. These coil-over's come complete with all the hardware necessary to complete the installation.

FEATURES

• Adjustable ride height from 1" - 3" of lift over stock
• Mounting Bracket Orients Reservoir for Optimum Tire Clearance
• External Reservoir Ensures Maximum Cooling
• Chrome-silicon spring
• 250 PSI nitrogen-charged internal reservoir
• Race shock piston with flutter stack compression valving
• Kit also Includes Reservoir Mounting Brackets
• Corrosion resistant CAD plated shock bodies with 7/8" induction hardened, chrome plated shafts
• Billet aluminum upper mount
• 5/8" PTFE-lined spherical bearing
• Completely re-buildable
• Hose Length Optimized for Increased Fluid Transfer

SPECIFICATIONS

• Adjustable Damping: NO
• Adjustable Height: yes
• Body Diameter (IN): 2.5
• Boot Included: No
• Coil Over Springs Included: Yes
• Damping Type: Oil
• Dust Shield: No
• Gas Charged: yes
• Grade Type: Performance
• Lower Mount Type: Eyelet
• Maximum Lift (IN): 3
• OEM Wheels & Tires Fitment: Yes
• Remote Reservoir: Yes
• Service Parts: 257337 - 7/8 SHAFT 11.25 OAL, 7.00 TRAVEL
• Service Parts: 191016 - 7.5" FINNED RESI UPGRADE KIT
• Service Parts: 252003 - SEAL INSTALL TOOL 2.5/3.0
• Service Parts: 611025 - 07 TUNDRA CO HARDWARE KIT PAIR
• Service Parts: 252011 - 2.5 PIGGYBACK/REMOTE RESI/BYPASS REBUILD KIT
• Service Parts: 254100G - 1 GALLON ICON PERFORMANCE SHOCK OIL
• Service Parts: 252001 - 2.5 FIXED SPANNER WRENCH
• Service Parts: 252002 - UNIVERSAL SPANNER WRENCH (2.0/2.5/3.0)
• Shaft Diameter (IN): 0.875
• Shock Absorber Body End Measuring Point: Top of Upper Mount Plate
• Shock Absorber Rod End Measuring Point: Center of Eylet
• Spring Material: Steel
• Spring Rate (PPI): 650
• Upper Mount Type: Mounting Plate

TECH NOTES

• Factory Wheels & Tires Fitment: Yes
• Recommended Aftermarket Wheels: ICON Alloys - 17x8.5 with 5.75" Backspace / 25mm Offset
• Recommended Aftermarket Wheels: ICON Alloys - 18x9" w/ 6" Backspace / 25mm Offset
• Recommended Aftermarket Wheels: ICON Alloys - 20x9" w/ 6" Backspace / 25mm Offset
• Recommended Aftermarket Tires: 35" x 12.50" (Larger Tires May Fit but Fender Trimming and Modifications will be Required)
