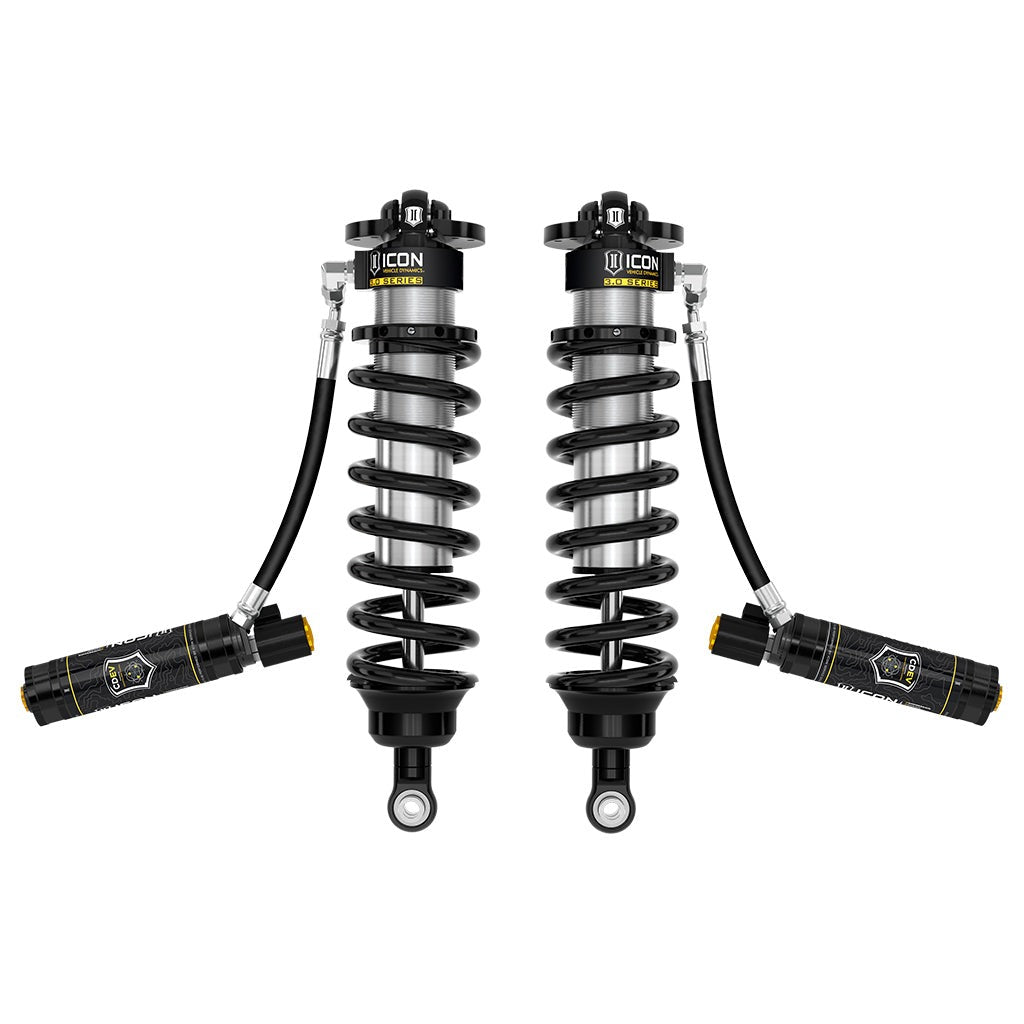

Name: ICON 58775E Tundra 1.25-3.25"/Sequoia 3-4.25" 3.0 VS CO Kit w/CDEV Pair
Brand: ICON
SKU: ico58775E
Price: 8085.30 USD
Availability: InStock

ICON 58775E Tundra 1.25-3.25"/Sequoia 3-4.25" 3.0 VS CO Kit w/CDEV Pair

$8,085.30 $26,951.00

ICON's 3.0 Series Coilovers with CDEV for 2022-2023 Toyota Tundra and 2023 ToyotaSequoia are designed to take the off-road capability of the truck to new levels by increasing wheel travel by up to 40% and significantly improving the damping ability of the front shocks.

FEATURES

40% increase in front wheel travel over stock
Adjustable up to 1.25-3.25" of front lift height over stock on Tundra or 3-4.25" of front lift on Sequoia
Vehicle specific design and tuning for superior shock damping and control
3.0" Body diameter for increased oil volume and larger piston area

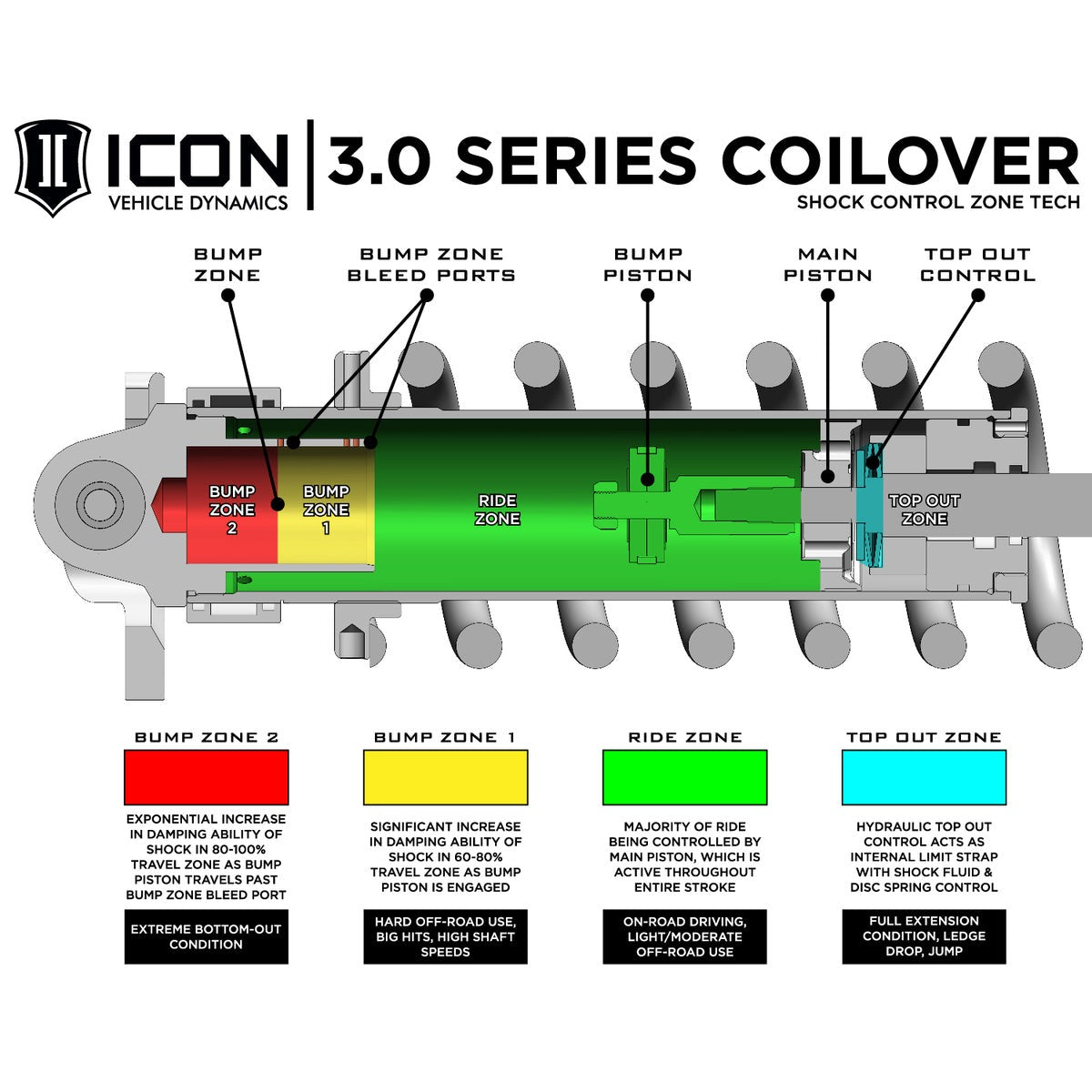

ICON's multi-stage, tunable hydraulic "Bump Zone" exponentially increases bottom-out resistance in the last 40% of compression travel
ICON's CDE Valve technology allows for in vehicle adjustment of compression damping settings and active adjustment via the ICON Intelligent Control (IIC)
CNC machined 6061 aluminum components with a black anodized finish
PTFE lined spherical bearings for extended longevity and minimal deflection
7/8" diameter induction hardened, chrome plated shock shafts
Fully Rebuildable and Re-tunable

SPECIFICATIONS

Adjustable Damping: Yes
Adjustable Height: Yes
Body Diameter (IN): 3
Boot Included: No
Coil Over Springs Included: Yes
Damping Adjustment Type: Electronic
Damping Type: Oil
Dust Shield: No
Gas Charged: Yes
Grade Type: Performance
Lower Mount Type: Eyelet
Material: Aluminum
Material: Steel
Maximum Lift (IN): 3.25
Minimum Lift (IN): 1.25
Remote Reservoir: Yes
Service Parts: 254100G - 1 GALLON ICON PERFORMANCE SHOCK OIL
Shaft Diameter (IN): 0.875
Shock Absorber Body End Measuring Point: Top of Upper Mount Plate
Shock Absorber Rod End Measuring Point: Center of Eyelet
Spring Color: Black
Spring Material: Steel
Spring Rate Type: Linear
Upper Mount Type: Mounting Plate

TECH NOTES

OEM Wheels & Tires Fitment: Yes
Recommended Aftermarket Wheels: 17x8.5" w/ 5.75" Backspace / 25mm Offset
Recommended Aftermarket Tires: 35" x 12.50" (Minor fender trimming and modifications may be required)
APPLICATION NOTE #55: SHOCKS ARE FULLY SERVICEABLE. LIFT HEIGHTS INDICATED ARE FOR A STOCK EQUIPPED VEHICLE.
APPLICATION NOTE #85: ADVERTISED LIFT HEIGHT RANGES ARE FOR A STOCK EQUIPPED VEHICLE. INCREASING WEIGHT OF VEHICLE DUE TO ACCESSORIES WILL ALTER LIFT RANGE.
APPLICATION NOTE #149: FOR 4WD MODELS WITHOUT TRD OFF-ROAD PACKAGE ICON RECOMMENDS USING ICON DIFF DROP (PART# 55156) OR USING TOYOTA TRD AXLES (PART# 434200C020 DRIVER / 434100C020 PASS). FAILURE TO DO SO COULD RESULT IN FRONT AXLE DAMAGE. NOT REQUIRED FOR TRD PRO.
Requires installation of ICON front upper control arms
Also requires installation of IIC kit (Part # 53508) and CDEV rear shocks (Part # 57840EP or 57845EP)
If upgrading a vehicle equipped with Adaptive Variable Suspension (AVS) all other vehicle systems remain functional
Most Tundra sub-models equipped with i-Force gasoline engine will have front lift height range of 1.25-3.25" over stock
Most Tundra sub-models equipped with i-Force MAX hybrid engine will have front lift height range of .75-2.75" over stock
Tundra SR5 equipped with TRD Sport Suspension package will have lift height range of 2.25-4.25" over stock
Tundra TRD Pro will have front lift height range of 0-1.5" over stock
Most Sequoia sub-models will have front lift height range of 3.5-4.25" over stock
Not compatible with Sequoia TRD Pro
Tundra lift heights above 2.25" require sway bar drop bracket kit part number 55154. Required for all lift heights on Tundra TRD Pro and Sequoia.
