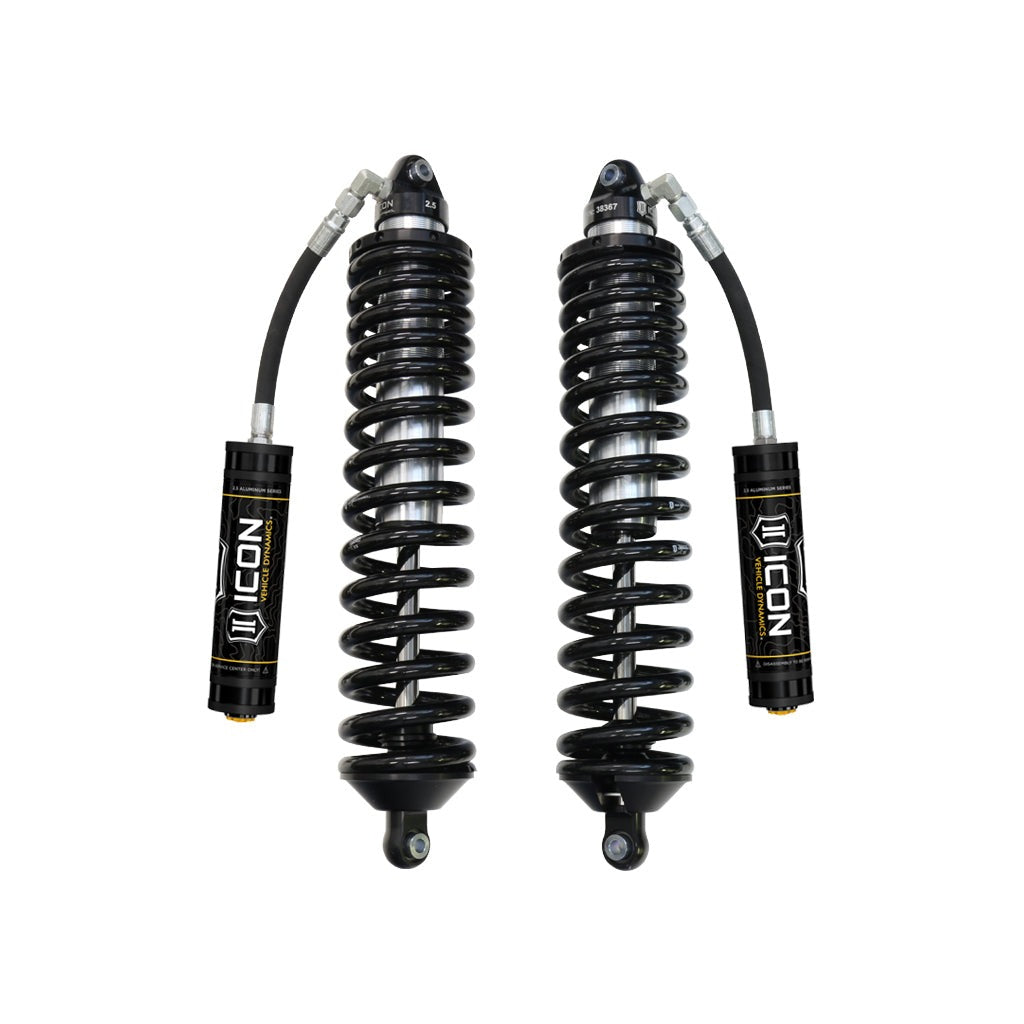

ICON 61700 Ford F250/350 4WD 7-9" Lift Front 2.5 VS RR Coilover Conversion Kit

These coil-over shocks are the ultimate suspension modification for your Super Duty. These are not race style shocks that were modified to fit they were designed from the ground up for the 2008 - 2016 Super Duty. They are adjustable in ride height from 7" to 9" of lift. They have any external Reservoir for excellent heat dissipation, a Dual Rate Spring for a great ride quality on or off-road, and are completely Rebuilable.

SPECIFICATIONS

• Adjustable Damping: NO
• Adjustable Height: yes
• Body Diameter (IN): 2.5
• Boot Included: No
• Coil Over Springs Included: Yes
• Damping Type: Oil
• Dust Shield: No
• Gas Charged: yes
• Grade Type: Performance
• Lower Mount Type: Eyelet
• OEM Wheels & Tires Fitment: Yes
• Remote Reservoir: Yes
• Service Parts: 252011 - 2.5 PIGGYBACK/REMOTE RESI/BYPASS REBUILD KIT
• Service Parts: 254100G - 1 GALLON ICON PERFORMANCE SHOCK OIL
• Service Parts: 252001 - 2.5 FIXED SPANNER WRENCH
• Service Parts: 191015 - 10" FINNED RESI UPGRADE KIT
• Service Parts: 252002 - UNIVERSAL SPANNER WRENCH (2.0/2.5/3.0)
• Service Parts: 257340 - 7/8 SHAFT 14.25 OAL, 10.00 TRAVEL
• Service Parts: 252003 - SEAL INSTALL TOOL 2.5/3.0
• Service Parts: 611019 - COILOVER HARDWARE KIT PAIR
• Shaft Diameter (IN): 0.875
• Shock Absorber Body End Measuring Point: Center of Eylet
• Shock Absorber Rod End Measuring Point: Center of Eylet
• Spring Color: Black
• Spring Material: Steel
• Upper Mount Type: Eyelet

TECH NOTES

• Factory Wheels & Tires Fitment: Yes
• Recommended Aftermarket Wheels: 8.5" wide wheel with 5" backspace
• Recommended Aftermarket Tires: 35" x 12.50" (Larger Tires May Fit but Fender Trimming and Modifications will be Required)
• ICON Coilover Conversion Hoops Part # 61950L & 61950R required for installation
