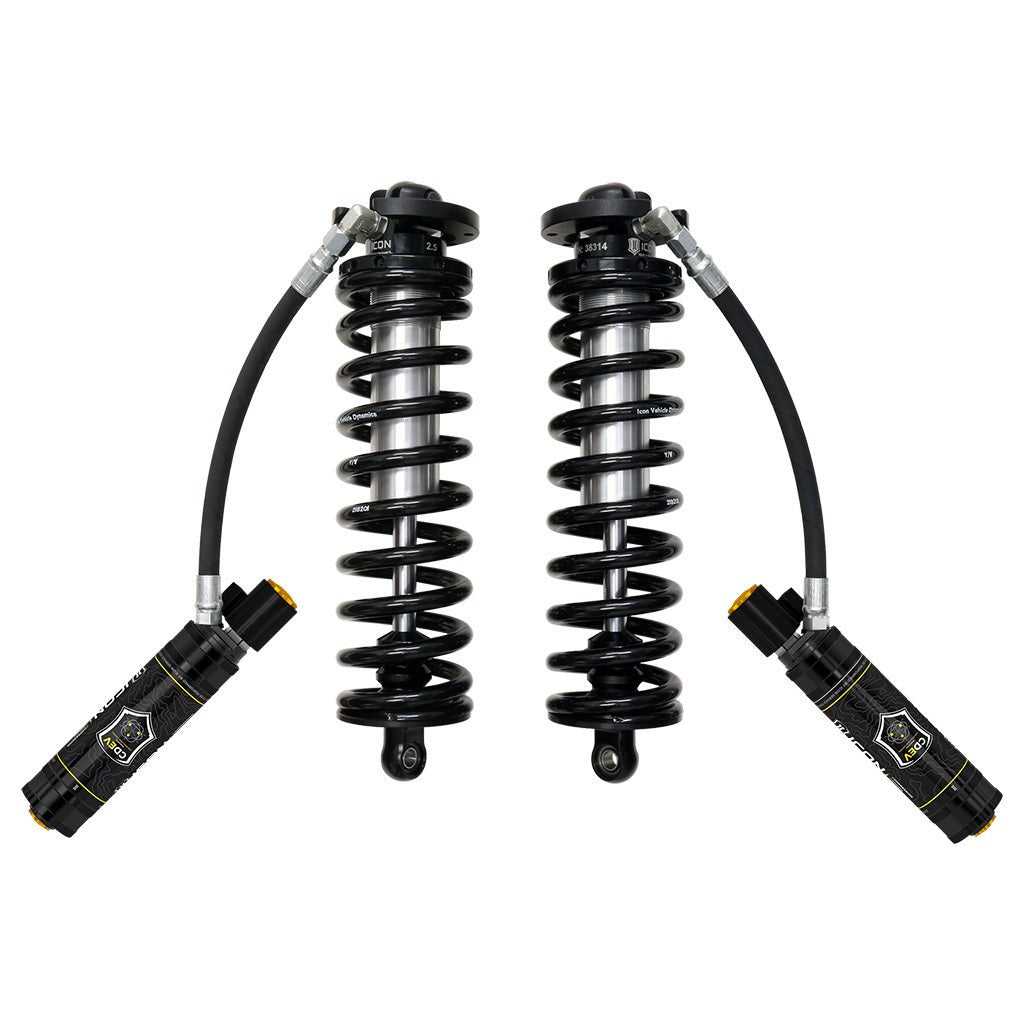

Name: ICON 61721E Ford F250/350 4WD 4-5.5" Lift 2.5 VS RR/CDEV Coilover Conversion Kit
Brand: ICON
SKU: ico61721E
Price: 6578.70 USD
Availability: InStock

ICON 61721E Ford F250/350 4WD 4-5.5" Lift 2.5 VS RR/CDEV Coilover Conversion Kit

$6,578.70 $21,929.00

ICON's 2.5 VS Series Remote Reservoir Bolt-In Coilover Conversion Kit will add a new level of performance and adjustability to 2017-UP F-250 and F-350 trucks. The advantage of utilizing a coilover conversion kit is that they have been designed to increase the overall damping ability of the vehicle while at the same time allowing for user-defined ride height adjustment. The 2.5" Remote Reservoir Coilover featured in these kits is based off of ICON's 2.5 VS Series shock line - meaning that features like ICON engineered coil springs, FK Rod End bearings, and vehicle-specific valving come standard. Quality machined components and a fully serviceable design make for a product that will stand the test of time, yet retain the ability to be rebuilt or re-tuned as necessary. The ICON CDE Valve upgrade is included for those desiring an easy way to tune the ride electronically from inside the vehicle.

FEATURES

Bolt-in system fits in OE coil bucket location
Ride height adjustable coilovers (4-5.5" or 4.75-6.25" depending on year of vehicle)
ICON's CDE Valve technology allows for in vehicle adjustment of compression damping settings and active adjustment via the ICON Intelligent Control (IIC)
Decreased body roll and improved on and off-road ride dynamics
Vehicle-specific shock valving provides unparalleled ride quality and control
Coilover conversion allows for addition of optional secondary shocks
Corrosion resistant CAD plated coilover shock body with 7/8" shaft
ICON engineered coil springs guaranteed for life against sagging or breakage
FK Rod End bearings for extended longevity and minimal deflection
Fully rebuildable and re-tunable

SPECIFICATIONS

Adjustable Damping: Electronically
Adjustable Height: Yes
Body Diameter (IN): 2.5
Boot Included: No
Coil Over Springs Included: Yes
Damping Type: Oil
Dust Shield: No
Gas Charged: Yes
Grade Type: Performance
Lower Mount Type: Eyelet
Material: Aluminum
Material: Steel
Maximum Lift (IN): 6.25
OEM Wheels & Tires Fitment: Yes
Remote Reservoir: Yes
Service Parts: 252011 - 2.5 PIGGYBACK/REMOTE RESI/BYPASS REBUILD KIT
Service Parts: 191016 - 7.5" FINNED RESI UPGRADE KIT
Service Parts: 254100G - 1 GALLON ICON PERFORMANCE SHOCK OIL
Service Parts: 257338 - 7/8 SHAFT 12.25 OAL, 8.00 TRAVEL
Shaft Diameter (IN): 0.875
Shock Absorber Body End Measuring Point: Top of Upper Mount Plate
Shock Absorber Rod End Measuring Point: Center of Eylet
Spring Color: Black
Spring Material: Steel
Spring Rate Type: Linear
Upper Mount Type: Mounting Plate

TECH NOTES

OE Wheels & Tires Fitment: Yes
Recommended Aftermarket Wheels: ICON Alloys - 17x8.5" w/ 5.00" Backspace / 6mm Offset
Recommended Aftermarket Wheels: ICON Alloys - 18x9" w/ 5.25" Backspace / 6mm Offset
Recommended Aftermarket Wheels: ICON Alloys - 20x9" w/ 5.25" Backspace / 6mm Offset
Recommended Aftermarket Tires: 37" x 12.50" (Larger tires may fit but fender trimming and modifications will be required.)
Only compatible with 4WD models
Springs are rated for diesel engines only
Removal of the coil centering cup in factory coil bucket required for installation
Also requires installation of IIC part number 93500 and CDEV rear shock part number 37701EP
Connectivity for optional CDEV secondary front shocks in OE location in addition to CDEV coilovers coming soon!
2020-UP Super Duty models have a lower ride height from the factory than 2017-2019 models. This results in an increase of approximately .75" of additional lift height over ICON's advertised numbers.
2020-UP Super Duty sub-models equipped with Tremor package will have lift height range of 2.75-4.25" over stock
