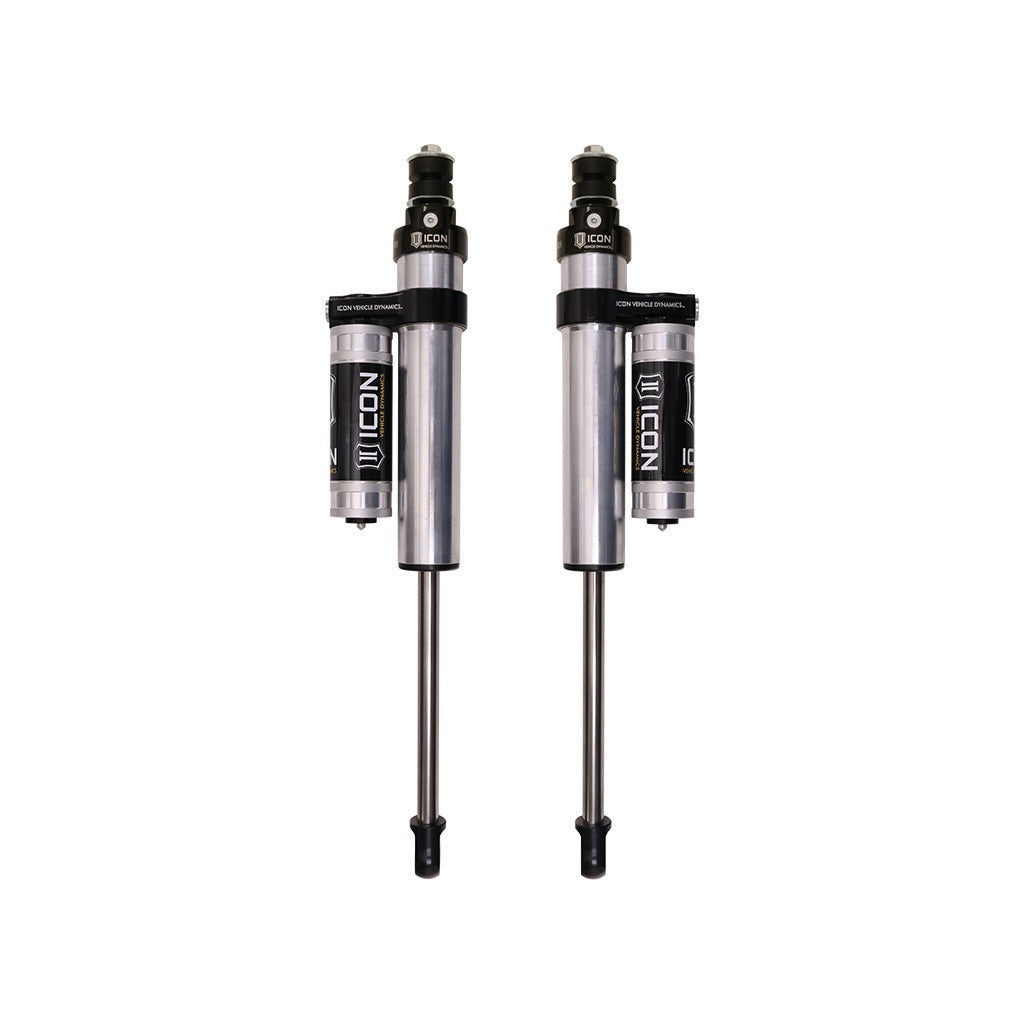

ICON 77726P GM 2500/3500 HD 6-8" Lift Front 2.5 VS Piggyback Res Shocks Pair
ICON 77726P GM 2500/3500 HD 6-8" Lift Front 2.5 VS Piggyback Res Shocks Pair
ICON Vehicle Specific (V.S.) 2.5 Series shocks are designed and built to give your vehicle outstanding performance off-road and a smooth ride on the street. These shocks are configured specifically for each application in both length and damping tune. Like all ICON'S Shock Absorbers, V.S. 2.5 Series shocks are 100% rebuildable and 100% revalveable. For piggyback and specific remote reservoir applications, ICON'S unique use of a 6061 billet aluminum manifold a few inches below the top cap of the shock creates an internal Bump Zone that when used creates an additional 20% of damping force. This additional force helps prevent harsh bottom outs and controls the suspension when compressing at high velocity.
FEATURES
- ICON's internal "Bump Zone" increases damping by 20% to provide more control as the shock approaches full compression
- Remote reservoir design improves heat dissipation to reduce shock fade during prolonged use
- Premium grade 5WT shock oil for consistent suspension damping along a wide temperature range
- Nitrogen charged monotube design with piggyback reservoir
- One piece digressive piston design with vehicle specific valving for unsurpassed performance and ride quality on and off-road
- 7/8" diameter induction hardened, chrome plated shock shaft
- PTFE lined spherical bearings and application specific mounting hardware
- 6061 aircraft grade aluminum CNC machined components
- CAD plated, precision machined 1026 DOM steel shock body for maximum durability and corrosion resistance
- All ICON 2.5 Series Piggyback and Remote Reservoir shocks can be upgraded to ICON's Compression Damping Control Valve (CDCV)
- 100% Rebuildable
- 100% Revalveable
SPECIFICATIONS
- Adjustable: NO
- Boot Included: NO
- Bore Diameter (IN): 2.25
- Cylinder Color: Silver
- Cylinder Material: Steel
- Damping Type: Oil
- External Reservoir: Yes
- Gas Charged: Yes
- Grade Type: Performance
- Lower Mount Type: EYELET
- Mounting Hardware Included: Yes
- Service Parts: 191016 - 7.5" FINNED RESI UPGRADE KIT
- Service Parts: 257338 - 7/8 SHAFT 12.25 OAL, 8.00 TRAVEL
- Service Parts: 252002 - UNIVERSAL SPANNER WRENCH (2.0/2.5/3.0)
- Service Parts: 611006 - 9/16 HD STEM BUSHING KIT
- Service Parts: 252011 - 2.5 PIGGYBACK/REMOTE RESI/BYPASS REBUILD KIT
- Service Parts: 252003 - SEAL INSTALL TOOL 2.5/3.0
- Service Parts: 252001 - 2.5 FIXED SPANNER WRENCH
- Service Parts: 254100G - 1 GALLON ICON PERFORMANCE SHOCK OIL
- Shaft Diameter (IN): 0.875
- Shaft Material: Chrome
- Shock Absorber Body End Measuring Point: Shoulder of Stem
- Shock Absorber Rod End Measuring Point: Center of Eylet
- Tube Outside Diameter (IN): 2.5
- Upper Mount Type: Stem
