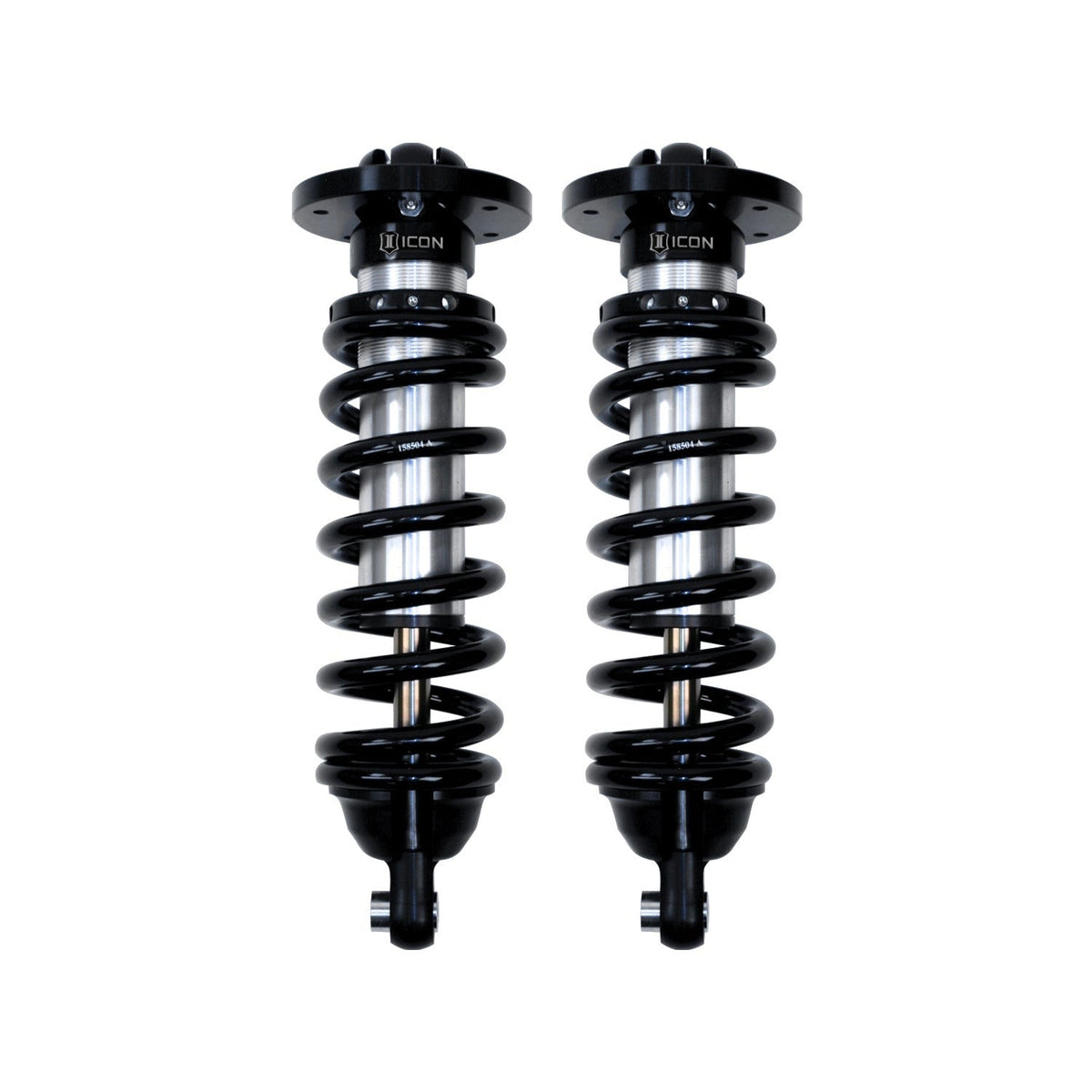

ICON 81000 Nissan Titan 0-3" Lift 2.5 VS Coilover Kit
Sale price
$3,106.50
Regular price $10,355.00
Skip to product information
ICON 81000 Nissan Titan 0-3" Lift 2.5 VS Coilover Kit
Sale price
$3,106.50
Regular price $10,355.00
These 0 - 3 Inch Adjustable Coil-over shocks will increase the handling and ride quality of your Nissan Titan or Armada. They are preset with 2 inches of lift out of the box to level out your vehicle and give clearance of 33 Inch Tall Tires.
FEATURES
- Adjustable ride height from 0" - 3"
- Race shock piston with flutter stack compression valving
- Cad-plated threaded body / Optional Extreme Weather Plating
- Billet aluminum upper mount
- 5/8" PTFE-lined spherical bearing
- Completely re-buildable and re-valvable shock
- 2.5" shock diameter to prevent overheating
- Chrome-silicon spring
- 250 PSI nitrogen-charged internal reservoir
SPECIFICATIONS
- Adjustable Damping: NO
- Adjustable Height: yes
- Body Diameter (IN): 2.5
- Boot Included: No
- Coil Over Springs Included: Yes
- Damping Type: Oil
- Dust Shield: No
- Gas Charged: yes
- Grade Type: Performance
- Lower Mount Type: Eyelet
- OEM Wheels & Tires Fitment: Yes
- Remote Reservoir: NO
- Service Parts: 611067 - TACOMA/FJ/4RNR LOWER CO BRG/SPCR KIT
- Service Parts: 611019 - COILOVER HARDWARE KIT PAIR
- Service Parts: 252010 - 2.5 IFP REBUILD KIT
- Service Parts: 257303 - 7/8 SHAFT 9.25 OAL, 5.00 TRAVEL
- Service Parts: 252004 - ECONOMY NEEDLE CHARGING TOOL
- Service Parts: 252001 - 2.5 FIXED SPANNER WRENCH
- Service Parts: 254100G - 1 GALLON ICON PERFORMANCE SHOCK OIL
- Service Parts: 252003 - SEAL INSTALL TOOL 2.5/3.0
- Service Parts: 252002 - UNIVERSAL SPANNER WRENCH (2.0/2.5/3.0)
- Shaft Diameter (IN): 0.875
- Shock Absorber Body End Measuring Point: Top of Upper Mount Plate
- Shock Absorber Rod End Measuring Point: Center of Eylet
- Spring Color: Black
- Spring Material: Steel
- Upper Mount Type: Mounting Plate
TECH NOTES
- Factory Wheels & Tires Fitment: Yes
- Recommended Aftermarket Wheels: 8.5" wide wheel with 5" backspace
- Recommended Aftermarket Tires: 33" x 11.50" (Larger Tires May Fit but Fender Trimming and Modifications will be Required)
