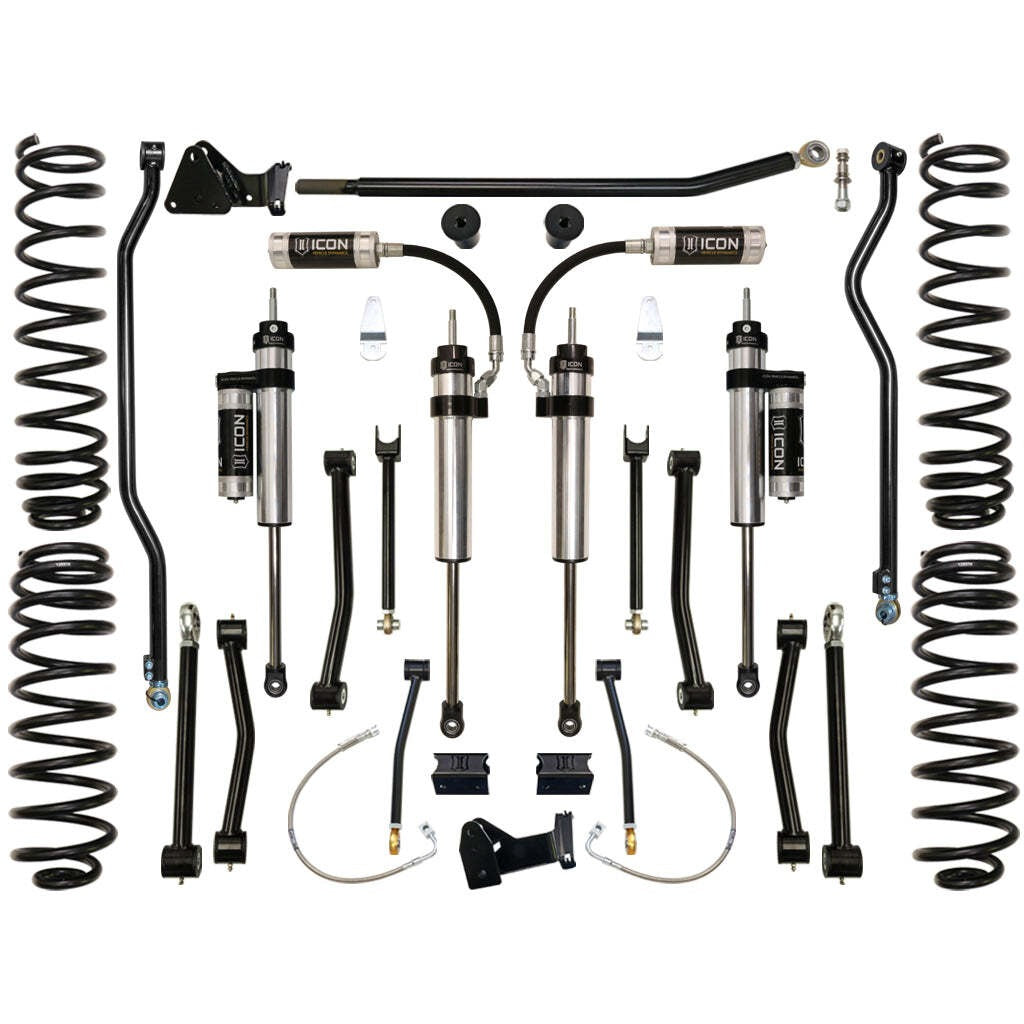

ICON K24003 Stage 3 Suspension System Jeep JK Wrangler 4.5" Lift

ICON's 4.5" Jeep JK Performance Suspension Systems aims to strike a perfect balance between wheel travel, articulation, ground clearance, and precise on and off-road handling characteristics. With these goals met, ICON-equipped JK's can take on rolling desert whoops, crawl over obstacle-riddled trails, and drive back home in comfort all in the same day. One of the major benefits of the ICON 4.5" JK system (or any ICON system) is that they are comprehensive suspension solutions, not just "lift kits". As a complete manufacturer ICON is able to engineer & create shock absorbers, coil springs, link arms, track bars, and all associated parts to work in conjunction with each other and extract maximum performance out of the Jeep JK.

• Dual-rate coil springs front and rear guaranteed never to sag
• High-steer flip kit for proper steering geometry without a drop pitman arm and increased ground clearance over stock
• Stainless steel high-steer taper adapter eliminates drilling of the factory knuckle
• All links and track bars utilize dual-rate bushings and PTFE-lined rod ends for tuned vibration isolation, controlled deflection, with maximum articulation and responsiveness
• Track bars are on vehicle adjustable designed for optimizing axle postion
• Includes high-performance rebuildable and revalvable reservoir 2.5 Series shocks
• 2.5 series shocks feature an internal bump zone for added bottom out control
• Increased wheel travel and articulation over stock
• No welding or cutting required
• 100% returnable to stock

• OEM Wheels & Tires Fitment: Yes
• APPLICATION NOTE #62: FRONT DRIVESHAFT CAN HIT CERTAIN MODEL SKID PLATES AT FULL DROOP AND MAY NEED TO BE TRIMMED FOR FULL ARTICULATION
• APPLICATION NOTE #66: 2 DOOR MODELS SIT SLIGHTLY HIGHER THAN 4 DOOR MODELS BUT REMAIN LEVEL WHEN INSTALLED
• APPLICATION NOTE #80: FRONT DRIVE SHAFT REQUIRED FOR PROPER FRONT DRIVELINE CLEARANCE (ICON PART #22014 [12-UP] / #22016 [07-11]
• APPLICATION NOTE #123: MAY REQUIRE REAR ALIGNMENT CAM KIT
• APPLICATION NOTE #150: SHOCKS ARE FULLY SERVICEABLE
• TECH NOTE: ICON's advertised lift heights are based around a typical Jeep JK build which usually includes added weight of accessories such as heavier front bumper/winch and heavier rear bumper/spare tire. Lift heights may be higher than advertised if installed on a stock weighted vehicle.
• Ships In Multiple Boxes
