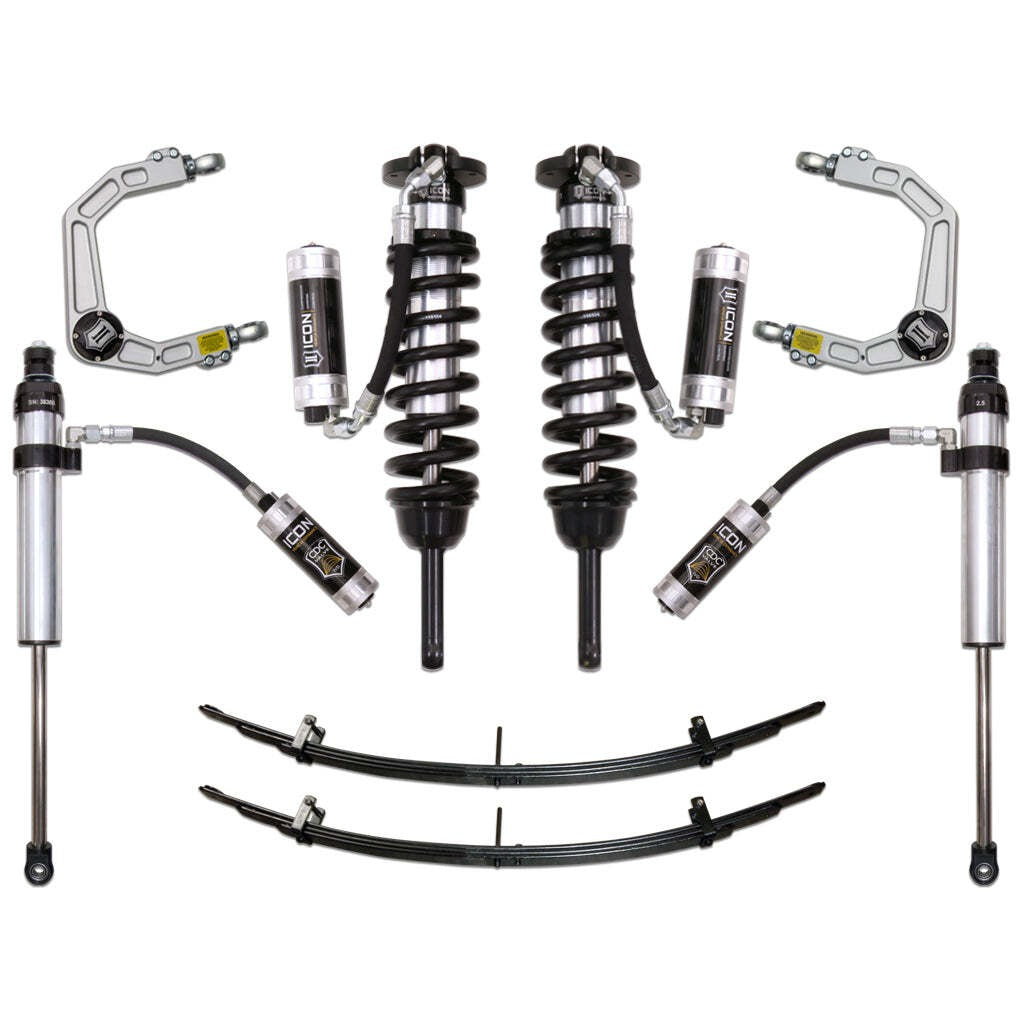

ICON K53006 Stage 6 Suspension System Billet UCA Toyota Tacoma 0-3.5" / 16-Up 0-2.75" -

2005-2015 TACOMA 0-3.5" LIFT/16-UP 0-2.75" LIFT STAGE 6 SUSPENSION SYSTEM WITH BILLET UPPER CONTROL ARMS

• Increased wheel travel and ride quality over stock
• Shocks are fully rebuildable and revalveable
• Bolt-on system means no cutting or welding necessary for install
• Vehicle-specific tuned front and rear shocks for superior shock damping and control
• CDC Valve technology allows for quick and easy compression damping adjustment without the need for tools
• Adjustable coilovers with CDCV provide up to 3.5" of front lift height on 2005 to 2015 models and up to 2.75" on 2016-up models
• Extended Travel coilovers matched with ICON UCA provides increased front droop travel
• 6061 aircraft grade aluminum CNC machined components
• Corrosion resistant CAD plated coilover shock body with 7/8" shaft
• Rear 2.5 Aluminum Series remote reservoir shocks feature anodized, one-piece impact extruded aluminum shock bodies and 7/8" shafts
• FK Rod End bearings for extended longevity and minimal deflection

• OEM Wheels & Tires Fitment: Yes
• APPLICATION NOTE #47: 700LB/IN EXPEDITION COIL AVAILABLE FOR HEAVIER EQUIPPED VEHICLES
• APPLICATION NOTE #55: SHOCKS ARE FULLY SERVICEABLE. COILOVER HEIGHTS INDICATED ARE FOR A STOCK EQUIPPED VEHICLE
• APPLICATION NOTE #109: 2016-UP TACOMA LIFT RANGE IS 0-2.75"
• APPLICATION NOTE #110: TRIMMING REQUIRED FOR RECOMMENDED TIRE SIZE
• APPLICATION NOTE #111: BUMP STOP SPACER KIT 51045 CAN BE INSTALLED TO INCREASE PRELOAD .25" BEYOND MAXIMUM
• TECH NOTE: 2017-UP Tacoma TRD Pro models will have front lift height range of 0-1.25" and 1" of rear lift over stock
• Ships in Multiple Boxes
