ICON K53195 Stage 5 2.5 Suspension System Billet Toyota Tundra 1.25-3.5" Lift

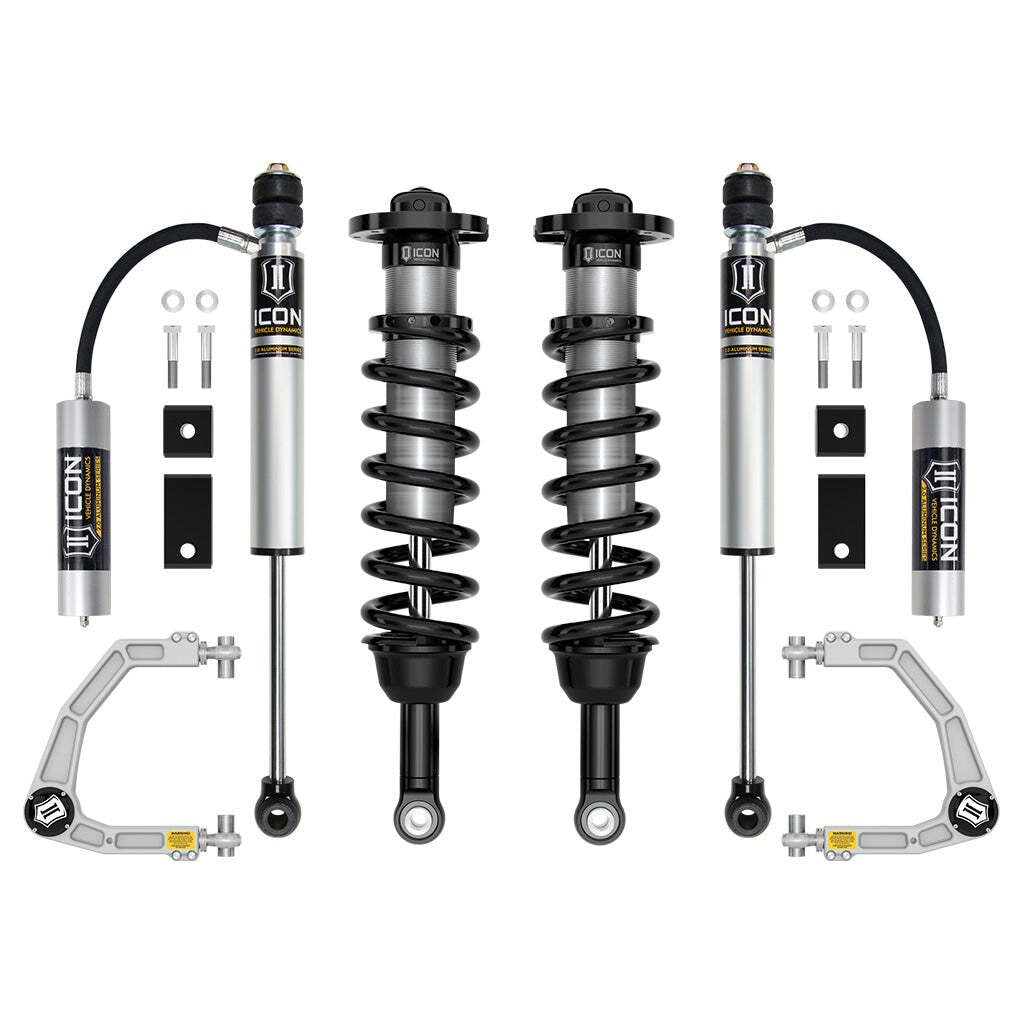

The ICON Vehicle Dynamics Stage 5 complete suspension system for the 2022-2023 Toyota Tundra builds upon the Stage 4 system with the upgrade of the 2.0 Aluminum Series rear shocks to remote reservoir versions. This system offers improved on- and off-road performance, with greater rear shock heat dissipation, as well as improved alignment specs and increased front-end lift height range for a proper stance and fitment of up to 35" tires. To compliment the 2.0 remote reservoir rear shocks, a 2.5 Series internal reservoir front coilover shock and billet front upper control arm combo is included along with a front sway bar drop kit.

• Vehicle specific design for 2022-2023 Toyota Tundra
• 2.5 Series front coilovers with internal reservoirs for superior damping and vehicle control
• Adjustable front ride heights from 1.25-3.5" of front lift over stock when used with included billet UCAs
• Billet aluminum UCAs for added strength, durability, and on-vehicle caster/camber adjustment for optimum drivability
• UCAs feature the patented (U.S. Pat. 10,731,700) Delta Joint Pro with 90 degrees of total articulation
• Included sway bar drop brackets reduce bind in OE sway bar links
• Allows for up to 40% increase in front wheel travel over stock without overstressing OE components
• 2.0 Aluminum Series rear remote reservoir shocks provide balanced tune with coilovers and increased performance
• All ICON shock absorbers are fully rebuildable and re-tunable
• 100% Bolt-on system - no drilling, cutting, or welding necessary for install

• OEM Wheels & Tires Fitment: Yes
• APPLICATION NOTE #55: SHOCKS ARE FULLY SERVICEABLE. LIFT HEIGHTS INDICATED ARE FOR A STOCK EQUIPPED VEHICLE.
• APPLICATION NOTE #85: ADVERTISED LIFT HEIGHT RANGES ARE FOR A STOCK EQUIPPED VEHICLE. INCREASING WEIGHT OF VEHICLE DUE TO ACCESSORIES WILL ALTER LIFT RANGE.
• APPLICATION NOTE #142: NOT COMPATIBLE WITH TUNDRAS EQUIPPED WITH LOAD-LEVELING REAR HEIGHT CONTROL AIR SUSPENSION.
• APPLICATION NOTE #146: TUNDRA SR5 EQUIPPED WITH TRD SPORT PACKAGE LIFT RANGE WILL BE 2.25-4.5"
• APPLICATION NOTE #149: FOR 4WD MODELS WITHOUT TRD OFF-ROAD PACKAGE ICON RECOMMENDS USING ICON DIFF DROP (PART# 55156) OR USING TOYOTA TRD AXLES (PART# 434200C020 DRIVER / 434100C020 PASS). FAILURE TO DO SO COULD RESULT IN FRONT AXLE DAMAGE. NOT REQUIRED FOR TRD PRO.
• TECH NOTE: If upgrading a Tundra equipped with Adaptive Variable Suspension (AVS) all other vehicle systems remain functional
• TECH NOTE: Most Tundra sub-models equipped with i-Force gasoline engine will have front lift height range of 1.25-3.5" over stock
• TECH NOTE: Most Tundra sub-models equipped with i-Force MAX hybrid engine will have front lift height range of .75-3" over stock
• TECH NOTE: Tundra TRD Pro will have front lift height range of 0-1.75" over stock
• TECH NOTE: Included rear shocks are compatible with 0-1.5" of rear lift over stock on models equipped with rear coil springs without TRD suspension package. Rear shocks are compatible with 0-1" of rear lift over stock on models equipped with rear coil springs with TRD suspension package and TRD Pro.
