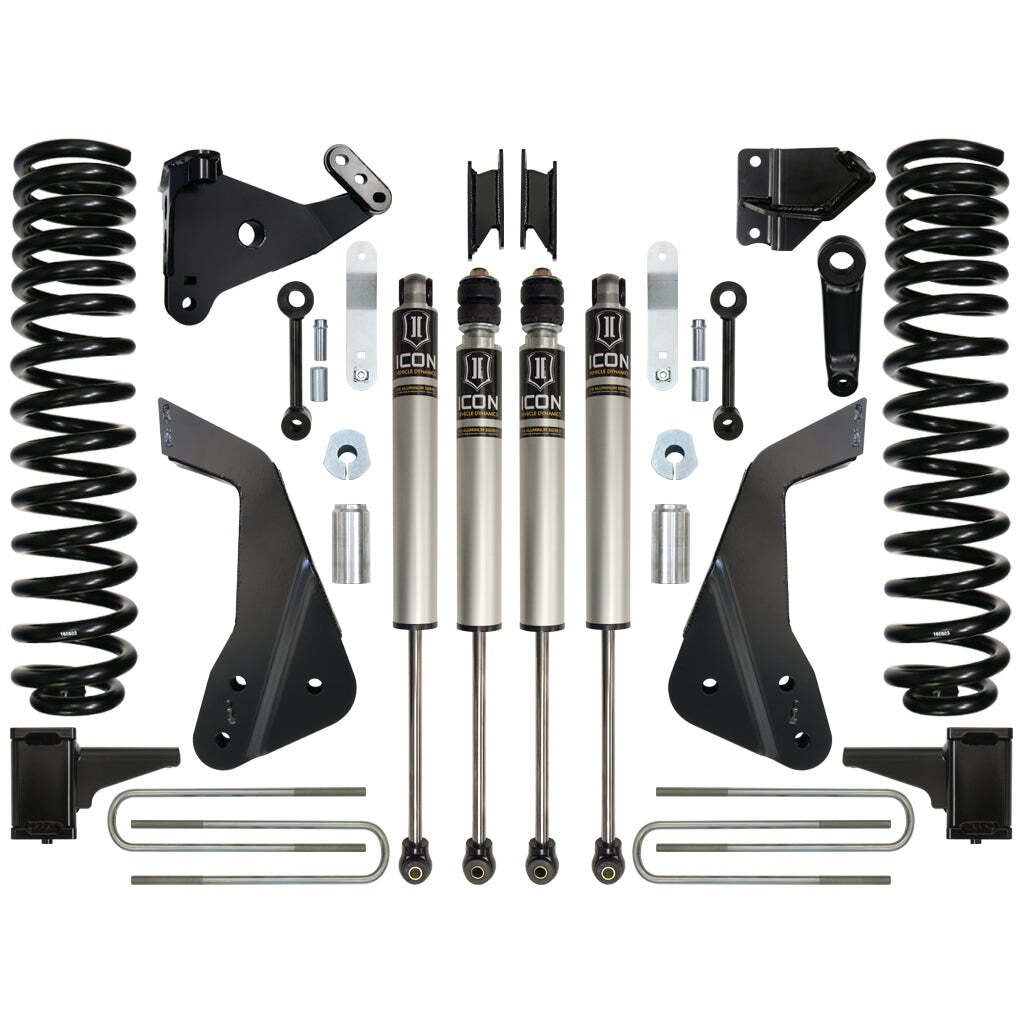

ICON K67200 Stage 1 Suspension System Ford F250/F350 7" Lift

2008-2010 FORD F250/F350 7" LIFT STAGE 1 SUSPENSION SYSTEM

• Increased wheel travel and ride quality over stock with no change in towing capacity
• Decreased body roll
• ICON engineered dual rate coil springs with match tuned 2.0 Aluminum Series shocks
• Hard anodized aluminum shock body with 5/8" polished chrome plated shaft
• Heavy duty radius arm drop brackets
• Correctly positioned steering and track bar components
• No drive shaft modifications needed

• OEM Wheels & Tires Fitment: Yes
• APPLICATION NOTE #6: SPRINGS ARE RATED FOR DIESEL ENGINES ONLY
• APPLICATION NOTE #21: NOT APPLICABLE ON VEHICLES EQUIPPED WITH A MANUAL TRANSMISSION
• APPLICATION NOTE #28: PINCH WELD ON '05-'10 SUPERDUTY RADIUS ARMS MAY COME IN CONTACT WITH RADIUS ARM DROP BRACKET HARDWARE
• APPLICATION NOTE #29: 7" SYSTEMS USING A 4-LINK IN PLACE OF THE FACTORY RADIUS ARMS DO NOT REQUIRE THE USE OF ALIGNMENT CAMS. CASTER CAN BE ADJUSTED BY THE LOWER LINK ARMS
• APPLICATION NOTE #31: '08 - CURRENT SUPERDUTY MODELS WITH GAS ENGINES MAY NEED EXHAUST MODIFIED TO CLEAR FRONT DRIVESHAFT
• APPLICATION NOTE #55: SHOCKS ARE FULLY SERVICEABLE. COILOVER HEIGHTS INDICATED ARE FOR A STOCK EQUIPPED VEHICLE
• APPLICATION NOTE #56: REAR ADD-A-LEAF REQUIRED FOR TRUCK TO SIT LEVEL WHEN USING 6" BLOCK INCLUDED IN KIT
• Ships in multiple boxes
