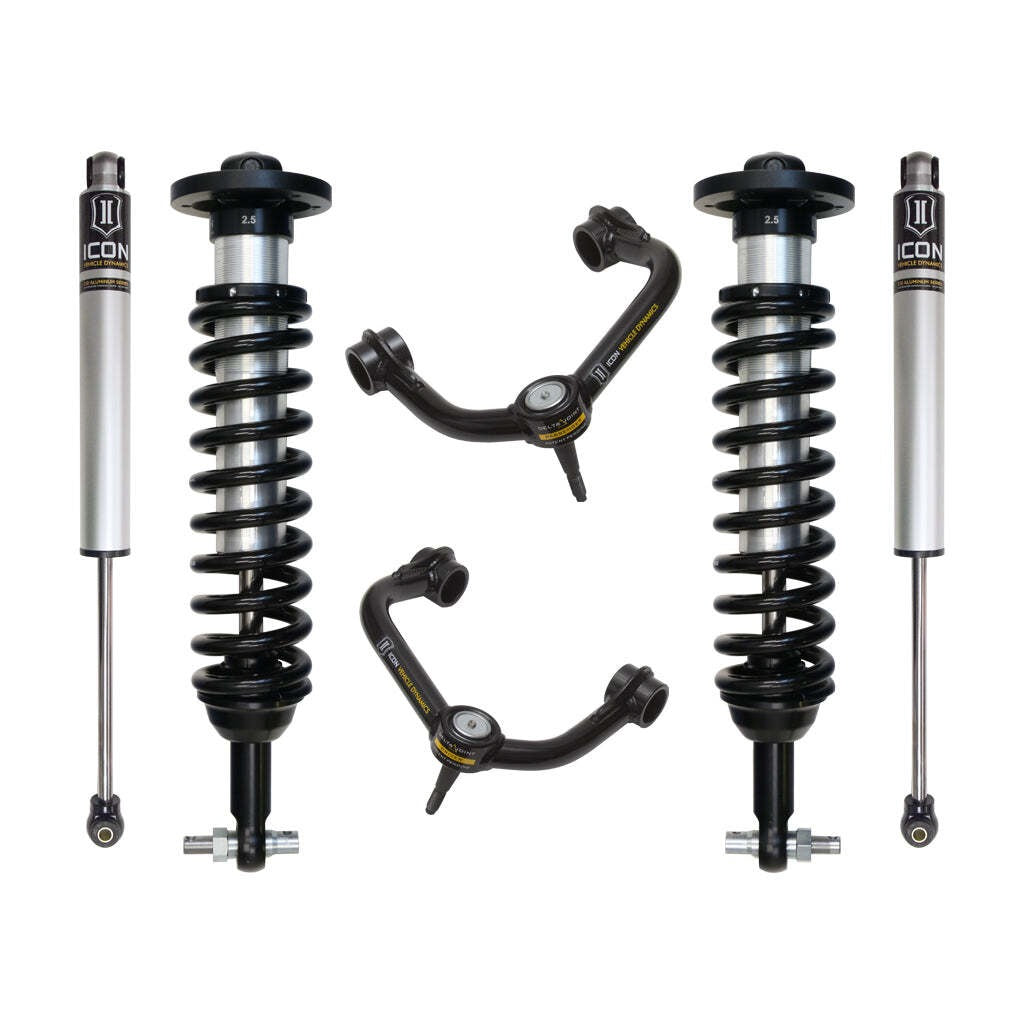

ICON K93082T Stage 2 Suspension System Tubular UCA Ford F150 4WD 0-2.63" Lift

2015-2020 FORD F-150 4WD 0-2.63" LIFT STAGE 2 SUSPENSION SYSTEM WITH TUBULAR UCA

• Increased wheel travel and ride quality over stock with no change in towing capacity
• Unique valving developed for the lighter weight of the 2015-2020 F-150
• Vehicle specific tuned front and rear shocks for superior damping and vehicle control
• Adjustable coilovers from 0-2.63" of lift height
• Tubular Upper Control Arms for added strength, durability, and alignment spec range
• 6061 Aircraft grade aluminum CNC machined components
• Corrosion resistant CAD plated coilover shock body with 7/8 shaft
• High strength alloy CNC machined lower bar pin
• FK rod end bearings for extended longevity and minimal deflection
• 2.0 aluminum body rear IFP shock with 5/8" polished nitro steel shaft
• 100% Bolt-on system - no drilling, cutting or welding necessary for install

• OEM Wheels & Tires Fitment: Yes
• APPLICATION NOTE #55: SHOCKS ARE FULLY SERVICEABLE. COILOVER HEIGHTS INDICATED ARE FOR A STOCK EQUIPPED VEHICLE
• TECH NOTE: Only compatible with OE spindles. DO NOT install in combination with ANY aftermarket spindles.
• TECH NOTE: Only compatible with 4-wheel drive (4WD) models
• TECH NOTE: Included tubular front upper control arms are optimized for front lift heights from 1.75-3" over stock
• TECH NOTE: Models equipped with Power-Stroke diesel engines will have lift height range of 0-2.13" over stock
• TECH NOTE: Included rear shocks are compatible with 0-1" of rear lift over stock on most models
• Ships in multiple boxes
