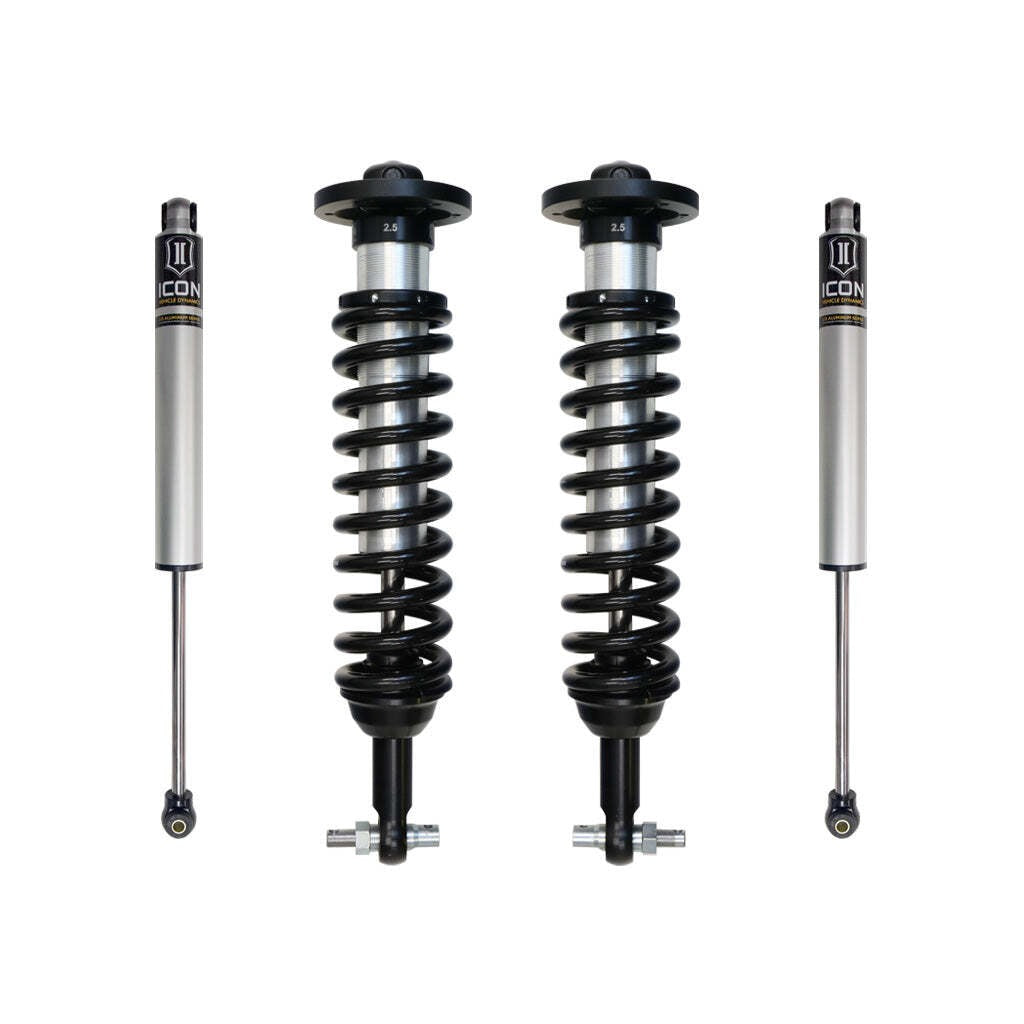

ICON K93111 Stage 1 Suspension System Ford F150 4WD 0-2.75" Lift

Stage 1 includes 2.5" coilovers with internal reservoirs with height adjustability from 0-2.75" of lift. ICON 2.0 Aluminum Series monotube rear shocks balance the performance of the truck from front to rear.

• Increased wheel travel and ride quality over stock with no change in towing capacity
• 2.0 aluminum body rear IFP shock with 5/8" polished shaft
• 100% Bolt-on system - no drilling, cutting, or welding necessary for install
• Unique valving developed for the lighter weight of the 2021-2022 F-150
• Vehicle specific tuned front and rear shocks for superior damping and vehicle control
• Adjustable coilovers from 0-2.75" of lift height
• 6061 Aircraft grade aluminum CNC machined components
• Corrosion resistant CAD plated coilover shock body with 7/8 shaft
• High strength alloy CNC machined lower bar pin
• FK rod end bearings for extended longevity and minimal deflection

• OEM Wheels & Tires Fitment: Yes
• APPLICATION NOTE #55: SHOCKS ARE FULLY SERVICEABLE. COILOVER HEIGHTS INDICATED ARE FOR A STOCK EQUIPPED VEHICLE
• APPLICATION NOTE #129: Will Not Work With Factory Installed Electronically Controlled Suspension
• TECH NOTE: Only compatible with 4-wheel drive (4WD) models
• TECH NOTE: Lift heights above 2" over stock may require aftermarket front upper control arms to maintain proper alignment
• TECH NOTE: Models equipped with PowerBoost hybrid engines will have lift height range of 0-2.5" over stock
• TECH NOTE: Models equipped with Power-Stroke diesel engines will have lift height range of 0-2.25" over stock
• TECH NOTE: Not compatible with F-150 Tremor or F-150 Raptor
• TECH NOTE: Not compatible with models equipped with BlueCruise
• TECH NOTE: Included rear shocks are compatible with 0-1" of rear lift over stock on most models
• Ships in multiple boxes
