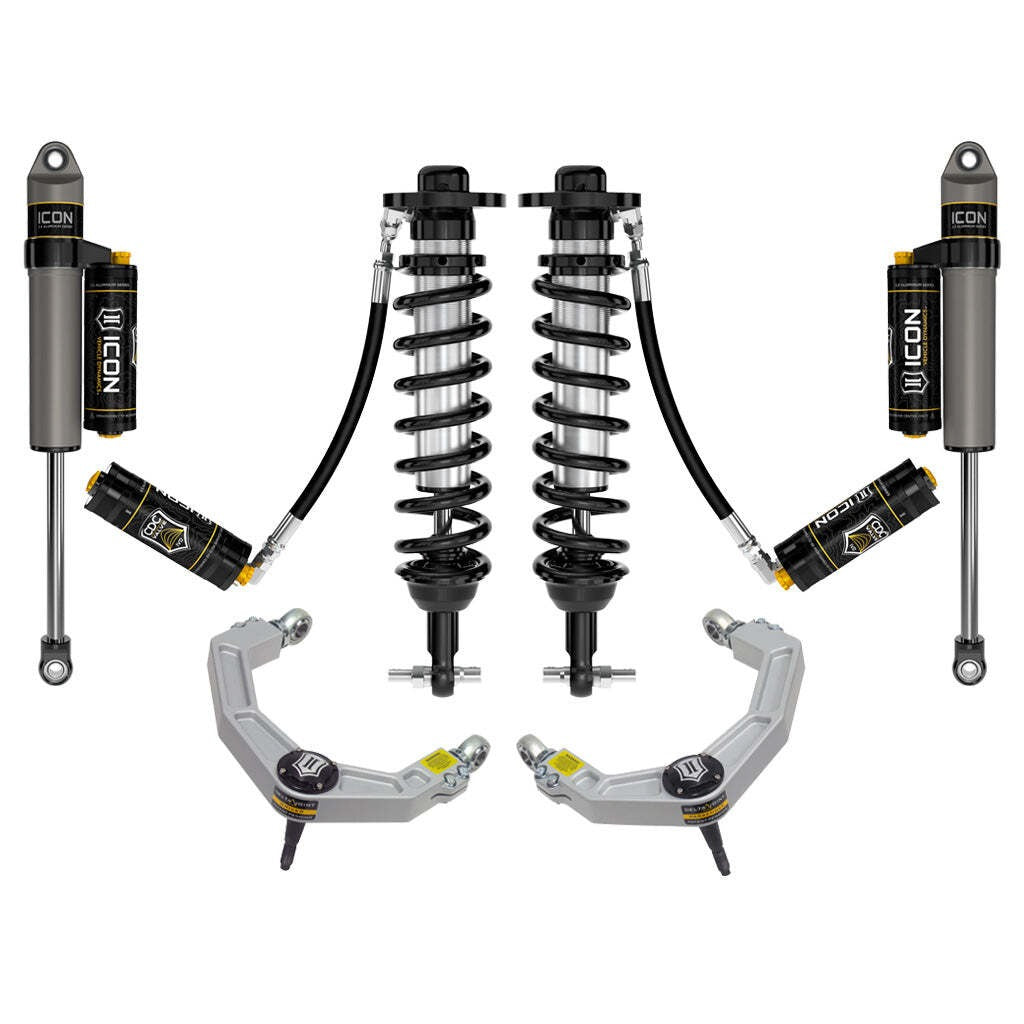

ICON K93115 Stage 5 Suspension System Billet UCA Ford F150 4WD 0-2.75" Lift

Stage 5 includes 2.5" coilovers with remote reservoirs with height adjustability from 0-2.75" of lift. Billet UCA for alignment correction. ICON 2.5 Series rear shocks. CDCV in front and rear shocks allow for compression damping adjustment.

• Increased wheel travel and ride quality over stock with no change in towing capacity
• Corrosion resistant CAD plated coilover shock bodies with 7/8" shafts
• High strength alloy CNC machined lower bar pin
• FK rod end bearings for extended longevity and minimal deflection
• 2.5 Aluminum Series rear shocks feature hard anodized, one-piece impact extruded aluminum cylinders for excellent corrosion resistance and consistent finish
• Bolt-on system - No cutting or welding necessary for install
• Vehicle specific tuned front and rear shocks for superior damping and vehicle control
• Adjustable coilovers from 0-2.75" of lift height
• Billet Aluminum Upper Control Arms for added strength, durability, and alignment spec range
• ICON CDC Valve allows quick and easy end-user compression adjustment

• OEM Wheels & Tires Fitment: Not compatible with all available OE wheel/tire combinations. Aftermarket wheels with lower offset/less backspace recommended.
• APPLICATION NOTE #55: SHOCKS ARE FULLY SERVICEABLE. COILOVER HEIGHTS INDICATED ARE FOR A STOCK EQUIPPED VEHICLE
• APPLICATION NOTE #129: Will Not Work With Factory Installed Electronically Controlled Suspension
• APPLICATION NOTE #130: EQUIPPED WITH DYNAMIC BENDING HEADLAMPS PURCHASE BOX 611071
• TECH NOTE: Only compatible with 4-wheel drive (4WD) models
• TECH NOTE: Not compatible with F-150 Tremor or F-150 Raptor
• TECH NOTE: Not compatible with models equipped with OnBoard Scales
• TECH NOTE: Not compatible with F-150s equipped with BlueCruise
• TECH NOTE: Models equipped with PowerBoost hybrid engines will have lift height range of 0-2.5" over stock
• TECH NOTE: Models equipped with Power-Stroke diesel engines will have lift height range of 0-2.25" over stock
• TECH NOTE: Included rear shocks are compatible with 0-1" of rear lift over stock on most models
• Ships in multiple boxes
