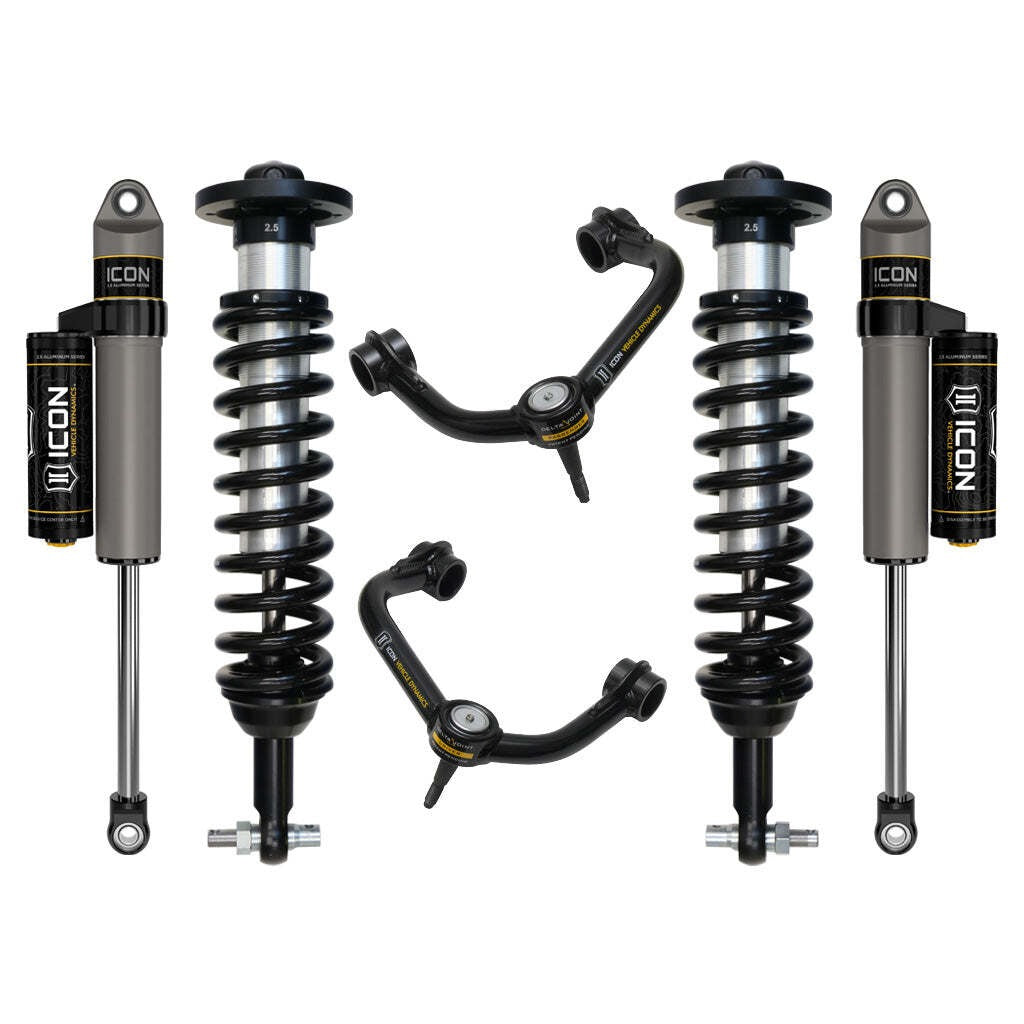

ICON K93123T Stage 3 Suspension System Tubular UCA Ford F150 2WD 0-3" Lift

Stage 3 includes 2.5" coilovers with internal reservoirs with height adjustability from 0-3" of lift. Tubular UCAs for alignment correction. ICON 2.5 Series piggyback rear shocks balance the performance of the truck from front to rear.

• Increased wheel travel and ride quality over stock with no change in towing capacity
• Bolt-on system - No cutting or welding necessary for install
• Vehicle specific tuned front and rear shocks for superior damping and vehicle control
• Adjustable coilovers provide 0-3" of lift height over stock
• Tubular upper control arms for added strength, durability, and improved alignment geometry
• 6061 aircraft grade aluminum CNC machined components
• Corrosion resistant CAD plated shock bodies with 7/8" shafts
• High strength alloy CNC machined lower bar pins
• 2.5 Aluminum Series rear shocks feature hard anodized, one-piece impact extruded aluminum cylinders for excellent corrosion resistance and consistent finish

• OEM Wheels & Tires Fitment: Not compatible with all available OE wheel/tire combinations. Aftermarket wheels with lower offset/less backspace recommended.
• APPLICATION NOTE #55: SHOCKS ARE FULLY SERVICEABLE. COILOVER HEIGHTS INDICATED ARE FOR A STOCK EQUIPPED VEHICLE
• APPLICATION NOTE #129: Will Not Work With Factory Installed Electronically Controlled Suspension
• TECH NOTE: Only compatible with rear wheel drive (2WD/RWD) models
• TECH NOTE: Only compatible with OE spindles. DO NOT install in combination with ANY aftermarket spindles.
• TECH NOTE: Models equipped with PowerBoost hybrid engines will have lift height range of 0-2.75" over stock
• TECH NOTE: Models equipped with Power-Stroke diesel engines will have lift height range of 0-2.5" over stock
• TECH NOTE: Included rear shocks are compatible with 0-1" of rear lift over stock on most models
• TECH NOTE: Included tubular front upper control arms are optimized for front lift heights from 1.75-3" over stock
• TECH NOTE: Not compatible with models equipped with OnBoard Scales
• TECH NOTE: Not compatible with F-150s equipped with BlueCruise
• Ships in multiple boxes
