Koni FSD Front, Rear, and Tag Axle RV Shock Kit for Spartan Chassis

You can't find a better shock for your motorhome than FSD: KONI frequency selective dampers. We have combined the benefits of performance and comfort into one shock absorber. FSD is firm for control over large bumps and corners, but soft for comfort over expansion joints and rough roads. While KONI is known to reduce bouncing in motorhomes, our FSD shocks include a special valve that filters out annoying vibrations before they enter the coach. The result is an incredibly smooth ride, with plenty of shock left to control pitching and swaying.

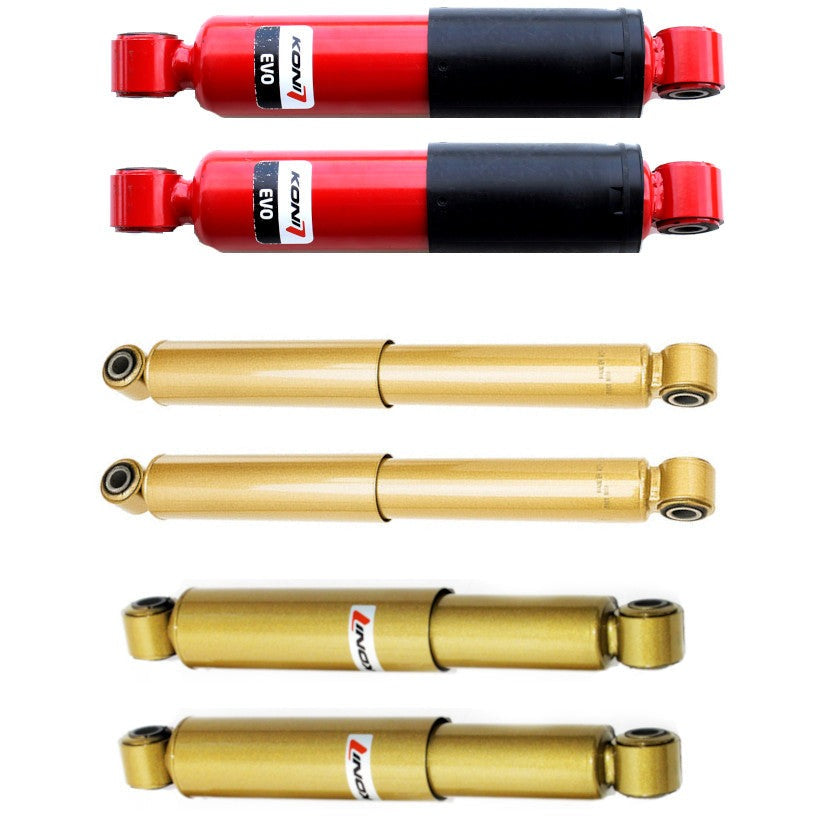

This Kit contains:

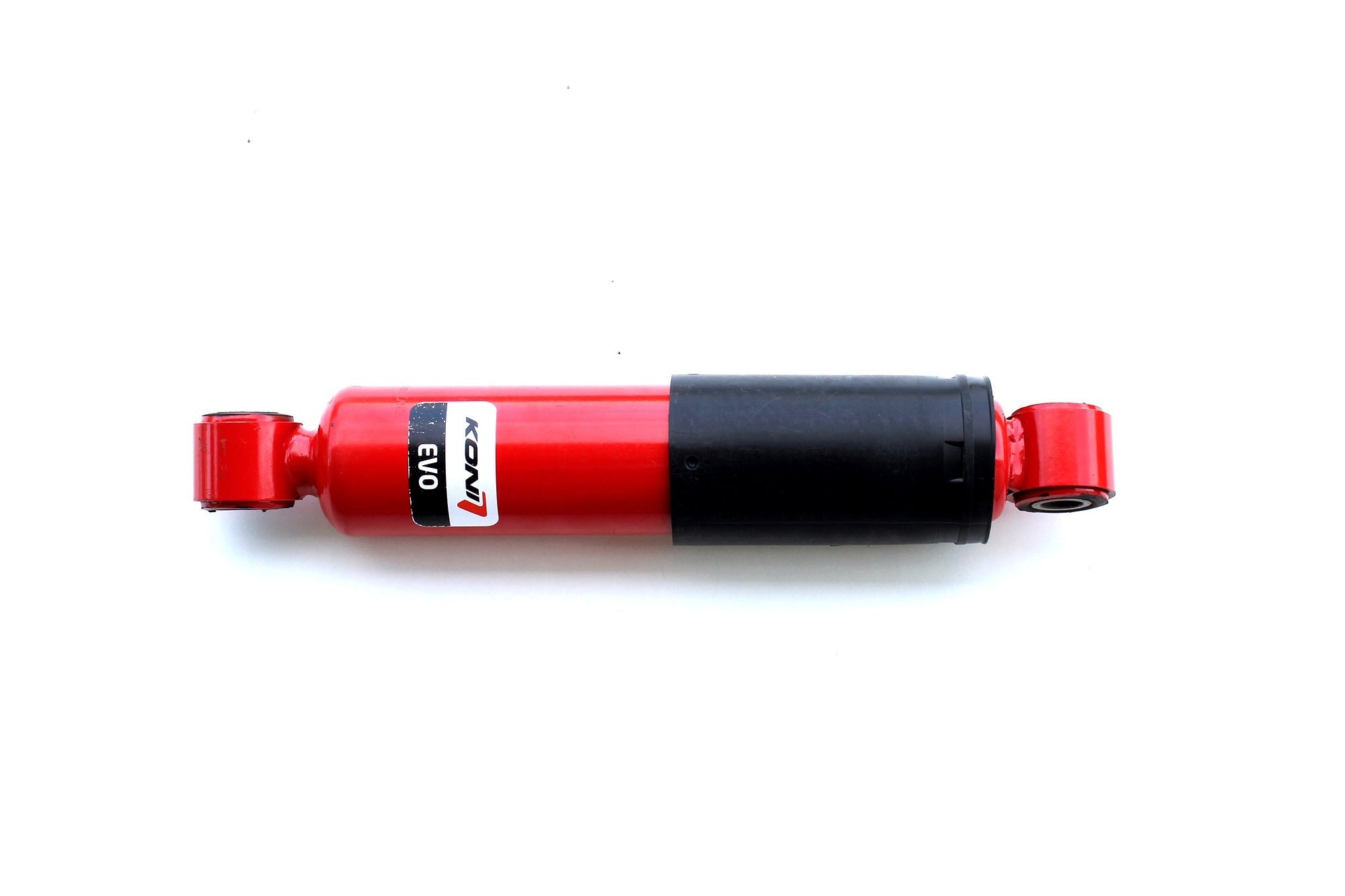

• 2 KONI 99B 3234 Front Shocks

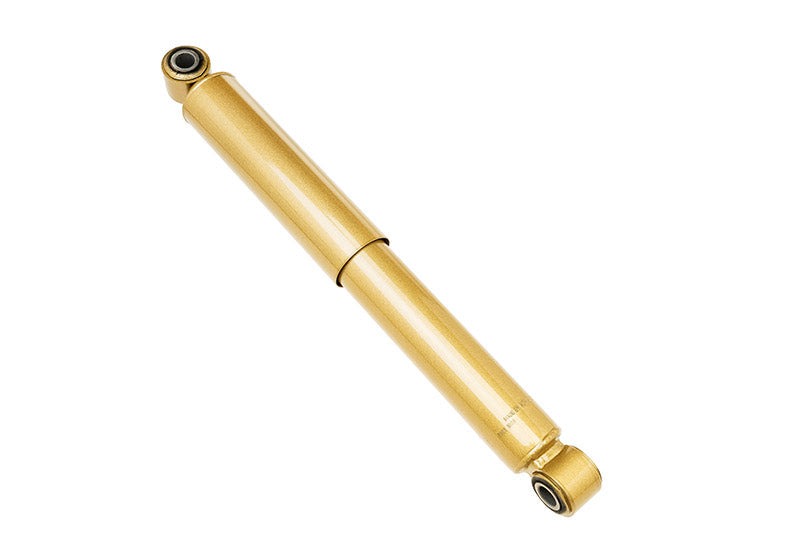

• 2 KONI 8805 1009 Rear Shocks

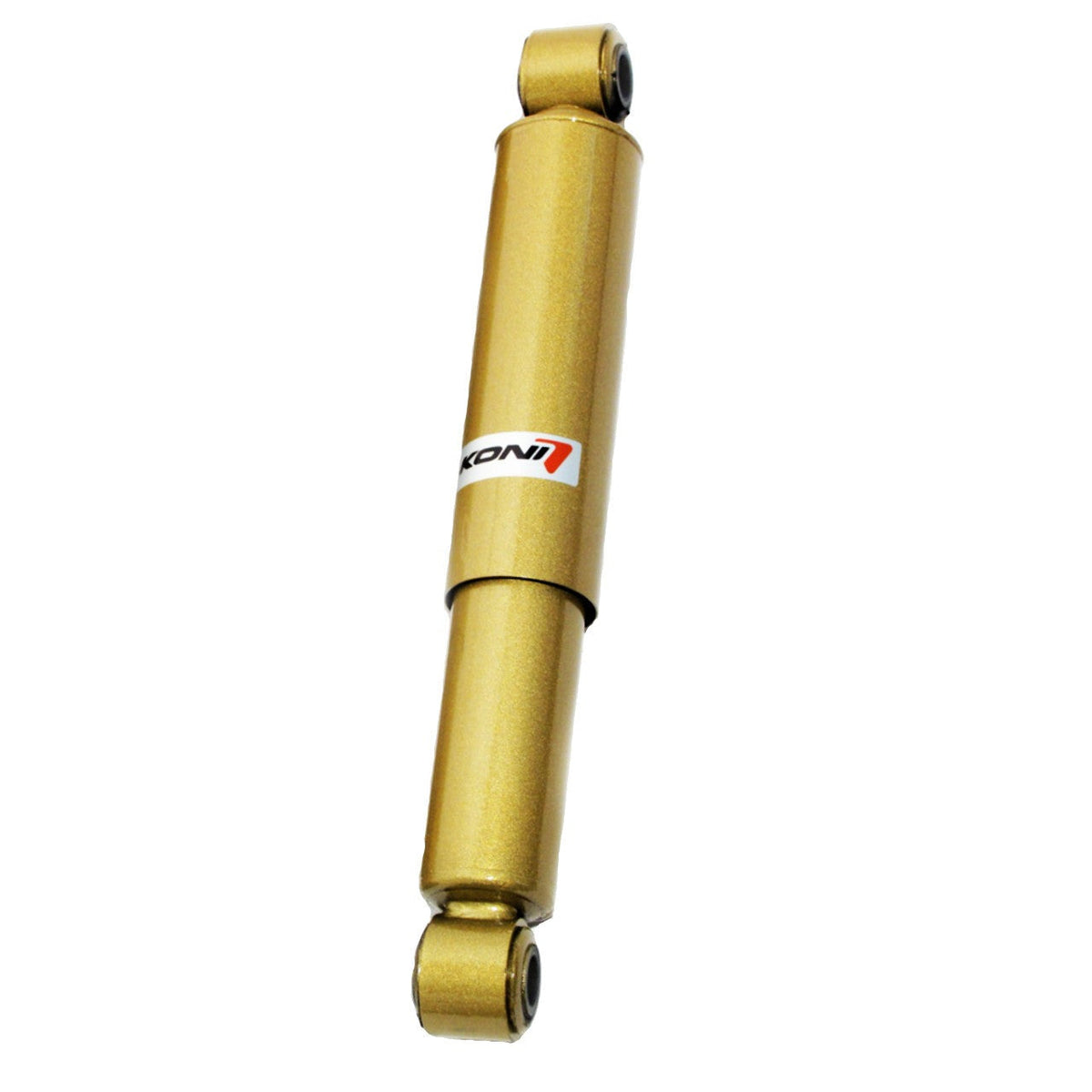

• 2 KONI 8805 1013 Tag Axle Shocks


 Note: Front lower mounts that utilize a pin instead of a bolt will require a replacement mount: APK-10000

Front Shock Dimensions

• Extended Length (IN) - 17.32
• Collapsed Length (IN) - 12.24
• Upper Mount Type - Eye 19.15mm
• Lower Mount Type - Eye 19.15mm

Rear Shock Dimensions

• Extended Length (IN) - 23.70
• Collapsed Length (IN) - 15.08
• Upper Mount Type - Eye 19.15mm
• Lower Mount Type - Eye 19.15mm

Tag Axle Shock Dimensions

• Extended Length (IN) - 21.81
• Collapsed Length (IN) - 13.90
• Upper Mount Type - Eye 19.15mm
• Lower Mount Type - Eye 19.15mm
