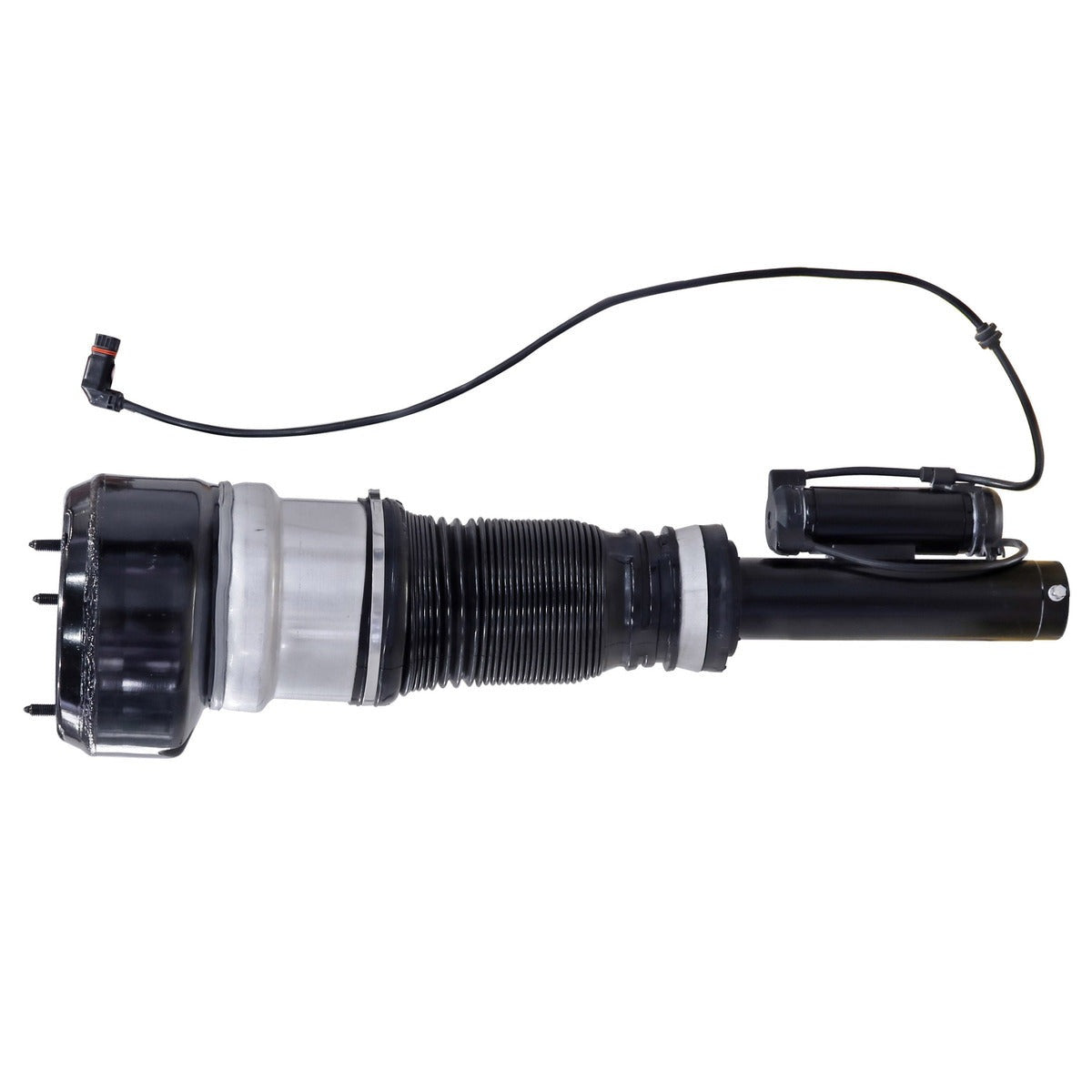

Monroe 40386 Front OESpectrum Air Strut Mercedes-Benz S550

Designed to deliver a more comfortable ride, Monroe® air shocks and struts isolate impact-related noise, vibration and harshness. Leak and burst tested to ensure a reliable seal, they feature specially formulated air bellows for extended product life.

Specifications of the 40386:

• Active or Passive Suspension: Active
• Adjustable Compression: Yes
• Adjustable Rebound: Yes
• Adjustable Ride Height: Yes
• Air Fitting Style: Threaded
• Bladder Material: CR
• Compressed Length (IN): 22.74
• Compressed Length (MM): 577.5
• Cylinder Color: Black
• Cylinder Outside Diameter (IN): 1.97
• Cylinder Outside Diameter (MM): 50
• Dust Shield Diameter (IN): 4.88
• Dust Shield Diameter (MM): 124
• Dust Shield Included: Yes
• Dust Shield Material: Plastic
• Extended Length (IN): 25.31
• Extended Length (MM): 643
• Gas Charged: Gas
• Grade Type: Premium
• Includes Bump Stop: Yes
• Internal Construction Type: Single Tube
• Internal Rebound Bumper: Yes
• Internal Rebound Spring: Yes
• Lower Mount Type: Bolt
• Maximum Air Chamber Pressure (PS): 101.5
• Mounting Hardware Included: Yes
• Shaft Diameter (IN): 0.55
• Shaft Diameter (MM): 14
• Suspension Type: Air
• Travel Length (IN): 2.57
• Travel Length (MM): 65.5
• Upper Mount Type: Stud
