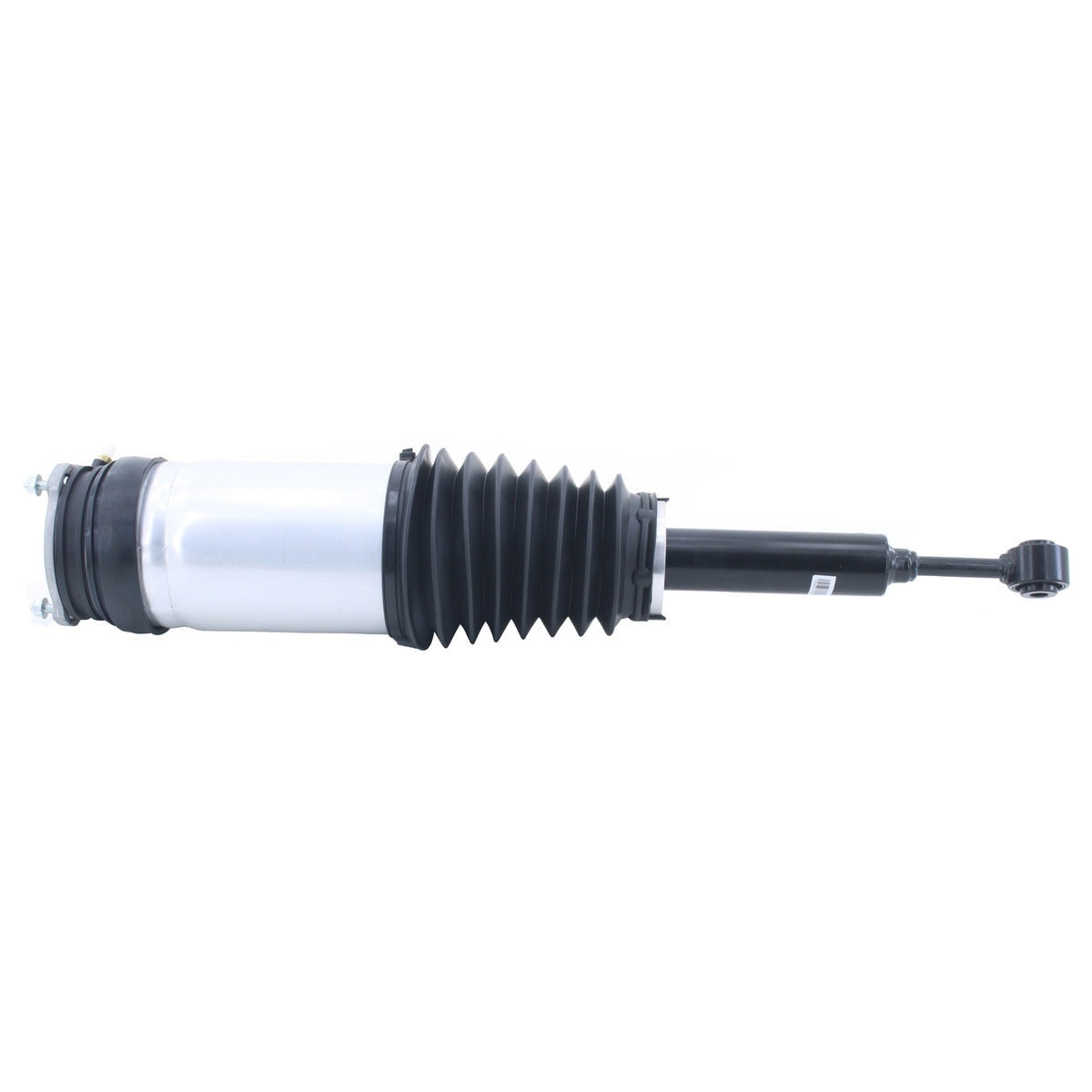

Monroe 40390 Rear OESpectrum Air Strut Tesla X

Designed to deliver a more comfortable ride, Monroe® air shocks and struts isolate impact-related noise, vibration and harshness. Leak and burst tested to ensure a reliable seal, they feature specially formulated air bellows for extended product life.

Specifications of the 40390:

• Active or Passive Suspension: Passive
• Adjustable Compression: No
• Adjustable Rebound: No
• Adjustable Ride Height: Yes
• Air Fitting Style: Threaded
• Bladder Material: CR
• Compressed Length (IN): 24.84
• Compressed Length (MM): 631
• Cylinder Color: Black
• Cylinder Outside Diameter (IN): 1.97
• Cylinder Outside Diameter (MM): 50
• Dust Shield Diameter (IN): 6.5
• Dust Shield Diameter (MM): 165
• Dust Shield Included: Yes
• Dust Shield Material: Plastic
• Extended Length (IN): 30.55
• Extended Length (MM): 776
• Gas Charged: Gas
• Grade Type: Premium
• Includes Bump Stop: Yes
• Internal Construction Type: Single Tube
• Internal Rebound Bumper: No
• Internal Rebound Spring: No
• Lower Mount Type: Loop/Eyelet
• Maximum Air Chamber Pressure (PS): 101.5
• Mounting Hardware Included: Yes
• Shaft Diameter (IN): 0.55
• Shaft Diameter (MM): 14
• Suspension Type: Air
• Travel Length (IN): 5.71
• Travel Length (MM): 145
• Upper Mount Type: Stud
