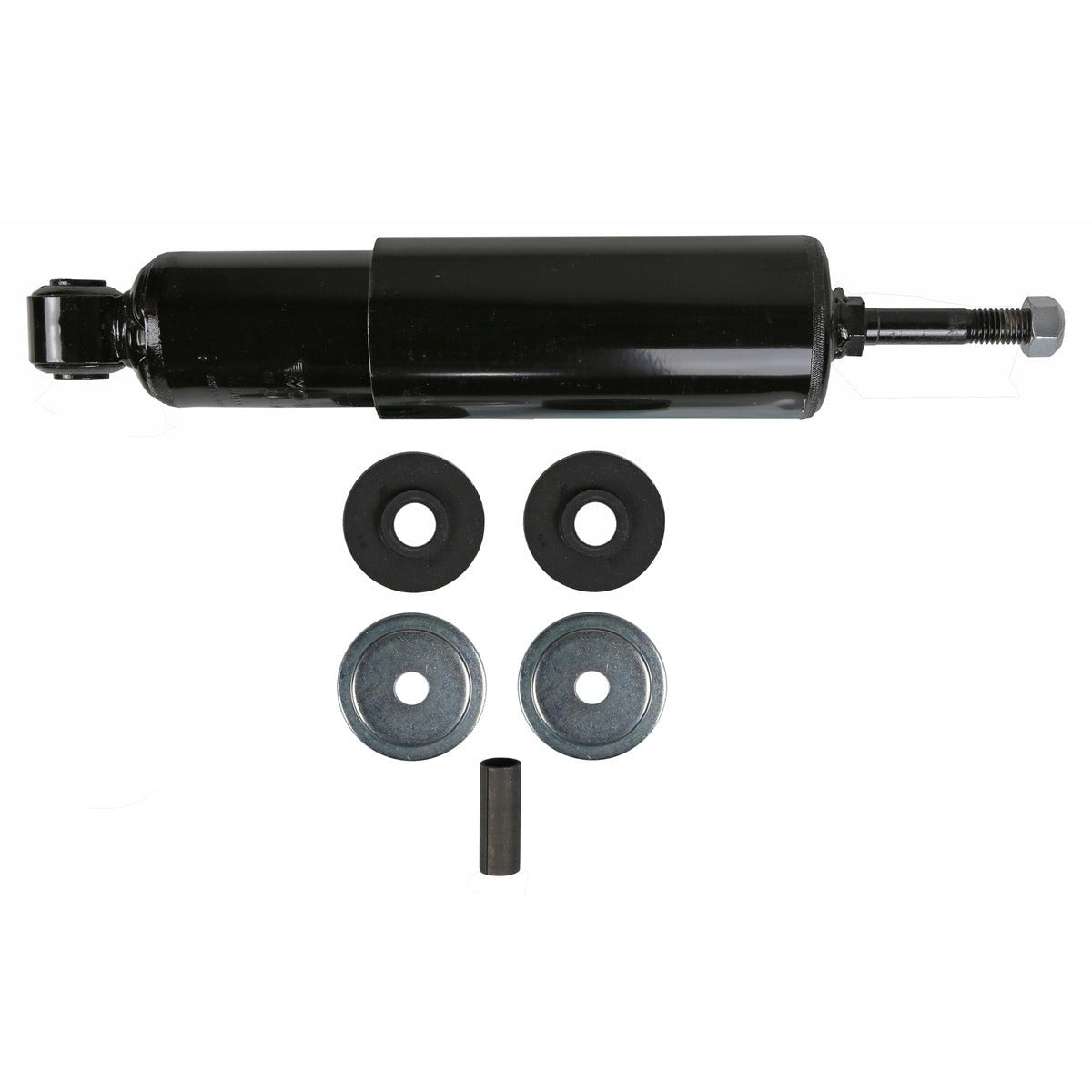

Monroe 74480 Front Magnum Shock IC Corporation FE School Bus, RE School Bus

Tough Monroe® Magnum® shock absorbers for transit buses deliver a firm, controlled ride for greater stability and increased driver and passenger comfort. Magnum transit bus shocks are designed to meet or exceed demanding OE manufacturer specifications.

Specifications

• Adjustable Damping: No
• Body Diameter (IN): 2.74
• Body Diameter (MM): 69.6
• Color: Black
• Compressed Length (IN): 13.18
• Compressed Length (MM): 334.8
• Dust Shield Included: Yes
• Dust Shield Material : Metal
• Extended Length (IN): 19.86
• Extended Length (MM): 504.4
• Finish: Painted
• Gas Charged: No
• Hydraulic Lockout: Yes
• Includes Bump Stop: No
• Internal Construction Type: Twin Tube
• Internal Rebound Bumper: No
• Lower Mount Code: LS54
• Lower Mount Type: Loop Bushing and Sleeve Mount - 3/4" Sleeve ID X 1.3/4" Sleeve OAL
• Part Description: Shock Absorber
• Parts Pack(s): No
• Shaft Diameter (MM): 18
• Shock Absorber Body End Measuring Point: Center of Loop
• Shock Absorber Bore Size (IN): 1.75
• Shock Absorber Bore Size (MM): 44.5
• Shock Absorber Rod End Measuring Point: Base of Stem
• Travel Length (IN): 6.68
• Travel Length (MM): 169.7
• Upper Mount Code: S6
• Upper Mount Type: Stem Mount - 3.5/16" Stem Length X 5/8"-11 Thread Pitch
• Upper Mount Type: Stem Mount - 3-5/16" Stem Length X 5/8"-11 Thread Pitch
