Monroe C1503 Rear OESpectrum Electronic Shock Volvo S60, XC70

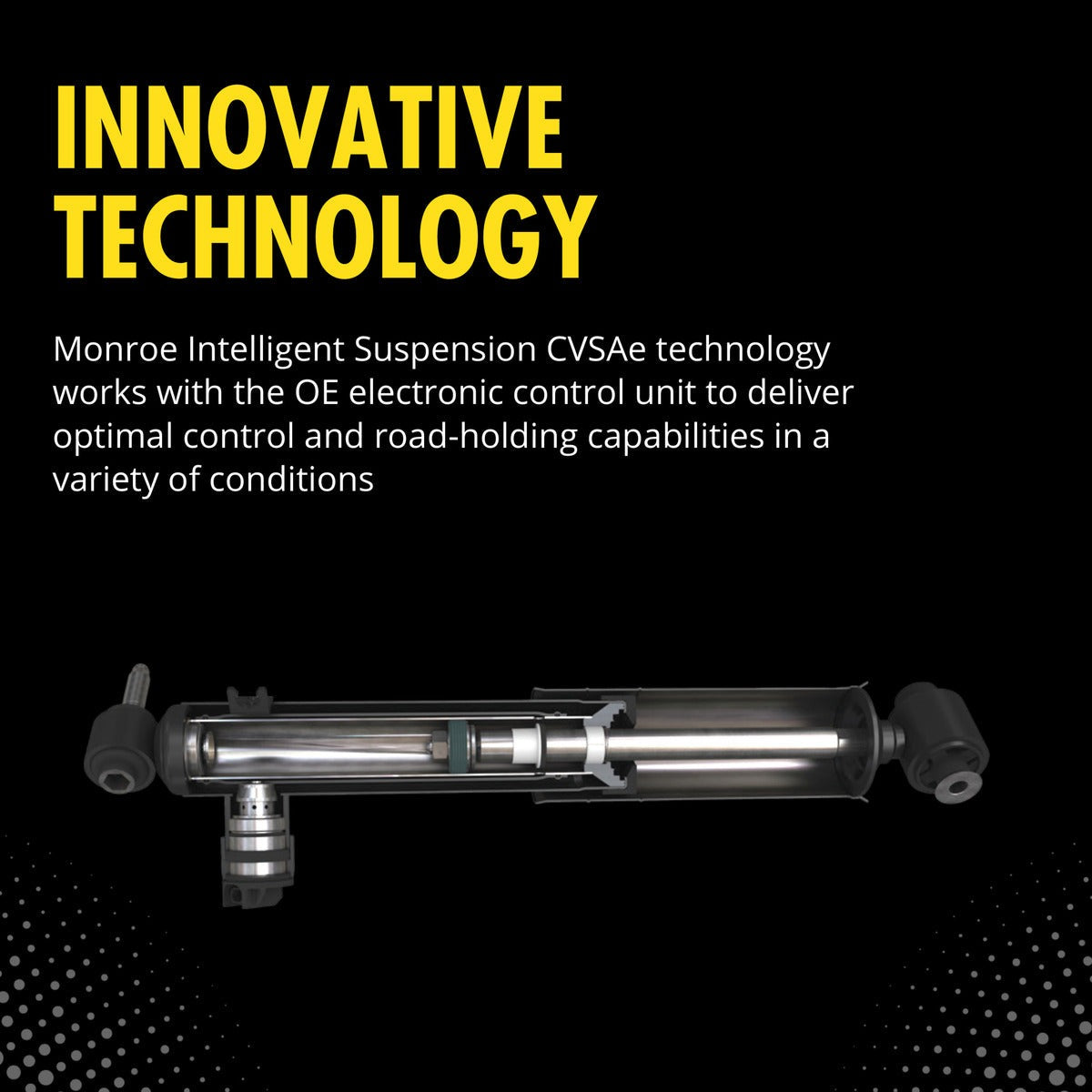

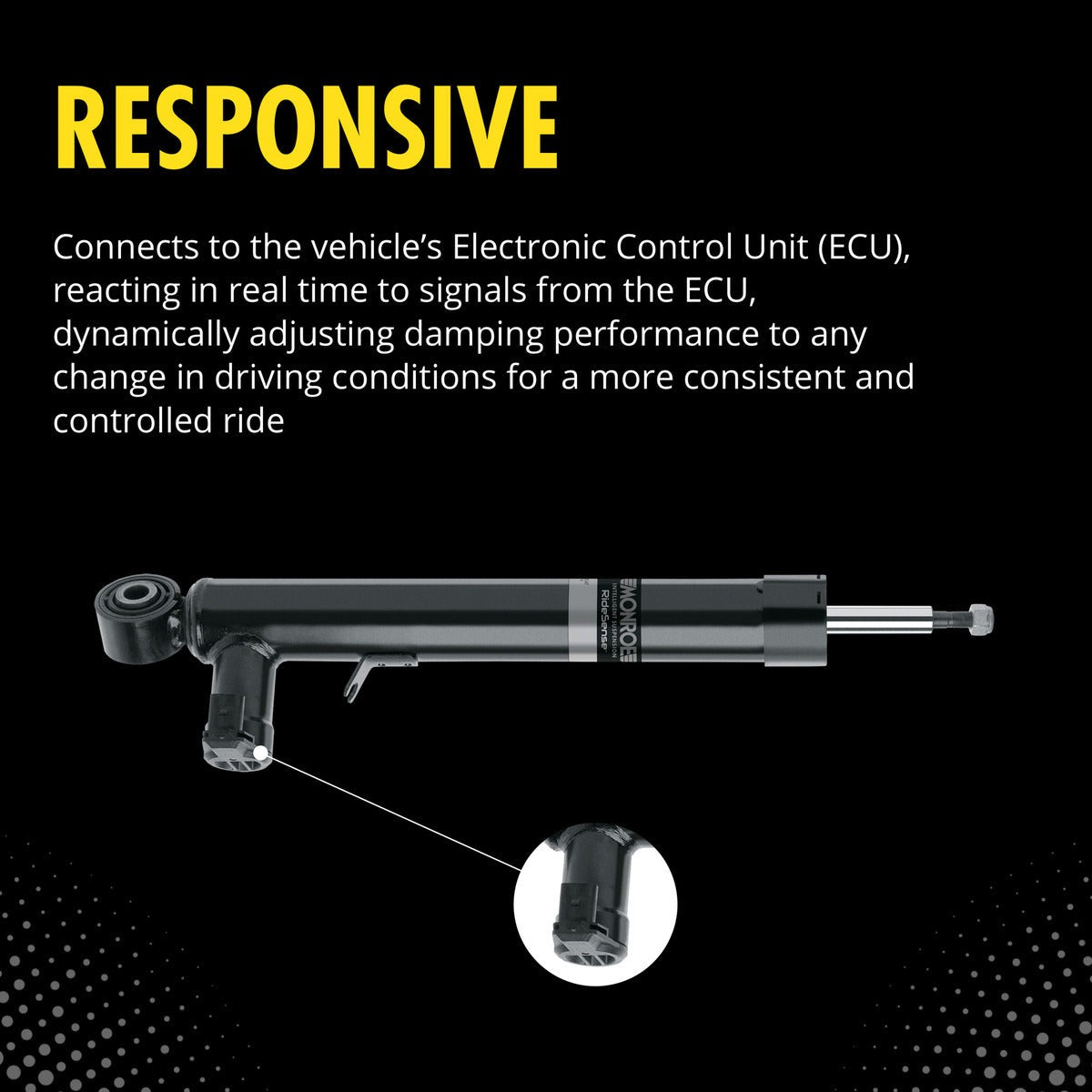

Designed to OE specifications, get a comfortable and controlled ride with Monroe® RideSense™ shocks. These shocks feature Continuously Variable Semi-Active Suspension (CVSAe) external valve technology that works with OE electronic control unit (ECU) to deliver optimal control, comfort and road-holding capabilities in a variety of driving conditions. A direct OE replacement, RideSense shocks feature the same fit and CVSAe technology as the factory shocks.

Specifications

• Body Diameter (IN): 2.17
• Body Diameter (MM): 55.1
• Compressed Length (IN): 11.65
• Compressed Length (MM): 295.9
• Dust Shield Included: Yes
• Extended Length (IN): 17.68
• Extended Length (MM): 449.1
• Gas Charged: Yes
• Hydraulic Lockout: No
• Includes Bump Stop: No
• Internal Rebound Bumper: Yes
• Lower Mount Code: LS78
• Lower Mount Type: Loop Bushing and Sleeve Mount - 9/16" Sleeve ID X 1 1/2" Sleeve OAL
• Part Description: Shock Absorber
• Parts Pack(s): M17111229
• Shock Absorber Body End Measuring Point: Center of Loop
• Shock Absorber Rod End Measuring Point: Base of Stem
• Travel Length (IN): 6.03
• Travel Length (MM): 153.2
• Upper Mount Code: S2
• Upper Mount Type: Stem Mount - 2" Stem Length X M12 Thread Pitch
