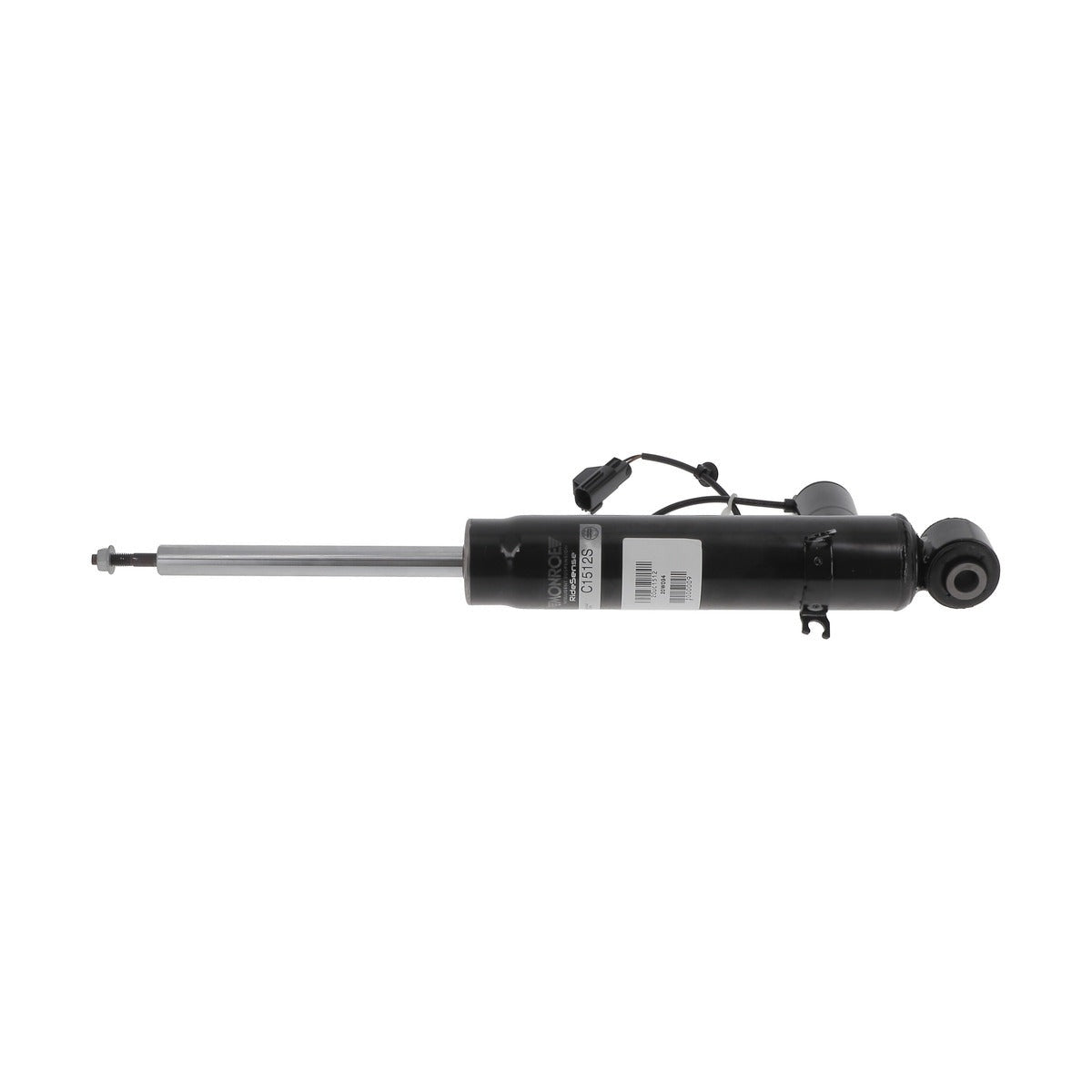

Monroe C1512 Rear OESpectrum Electronic Shock Volvo S80

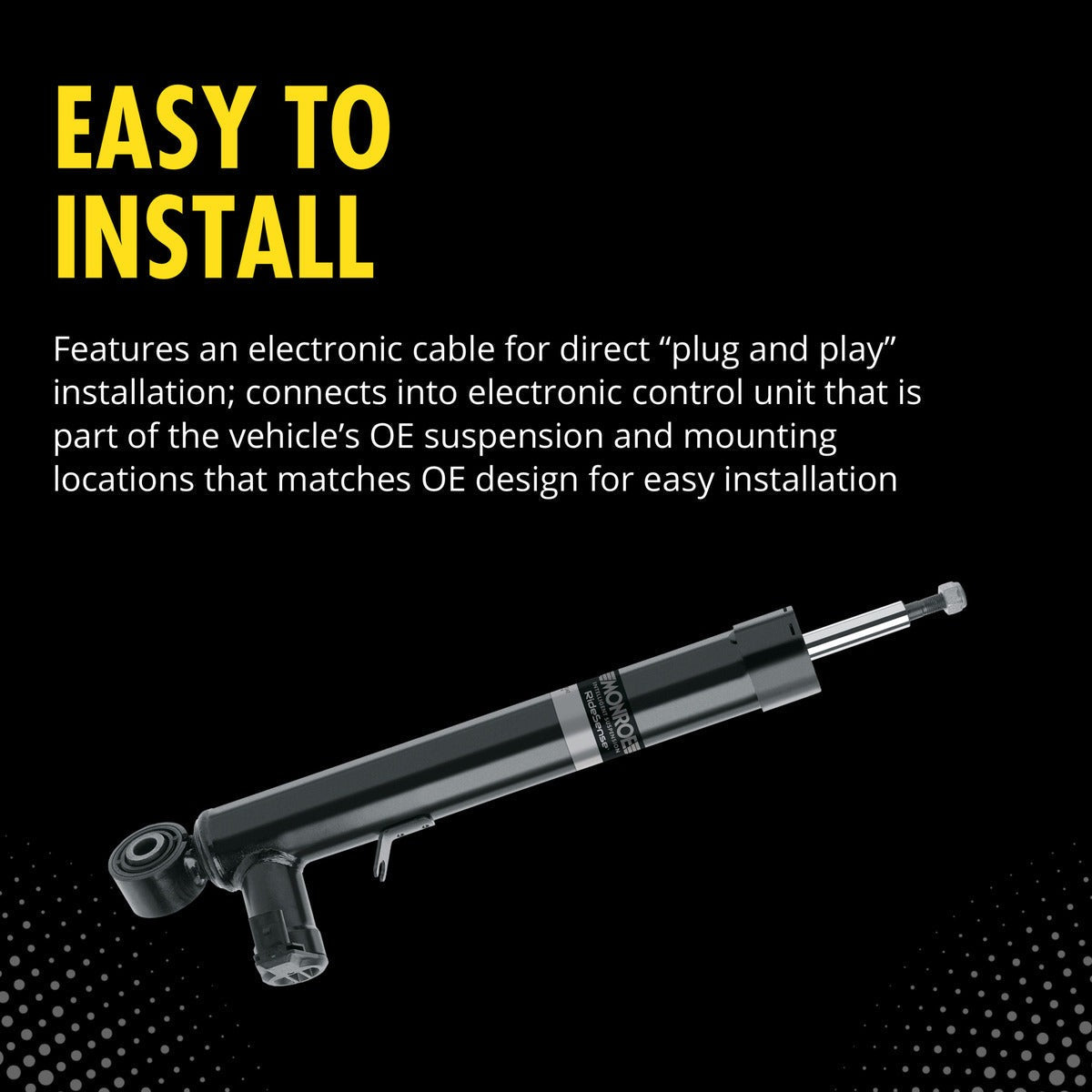

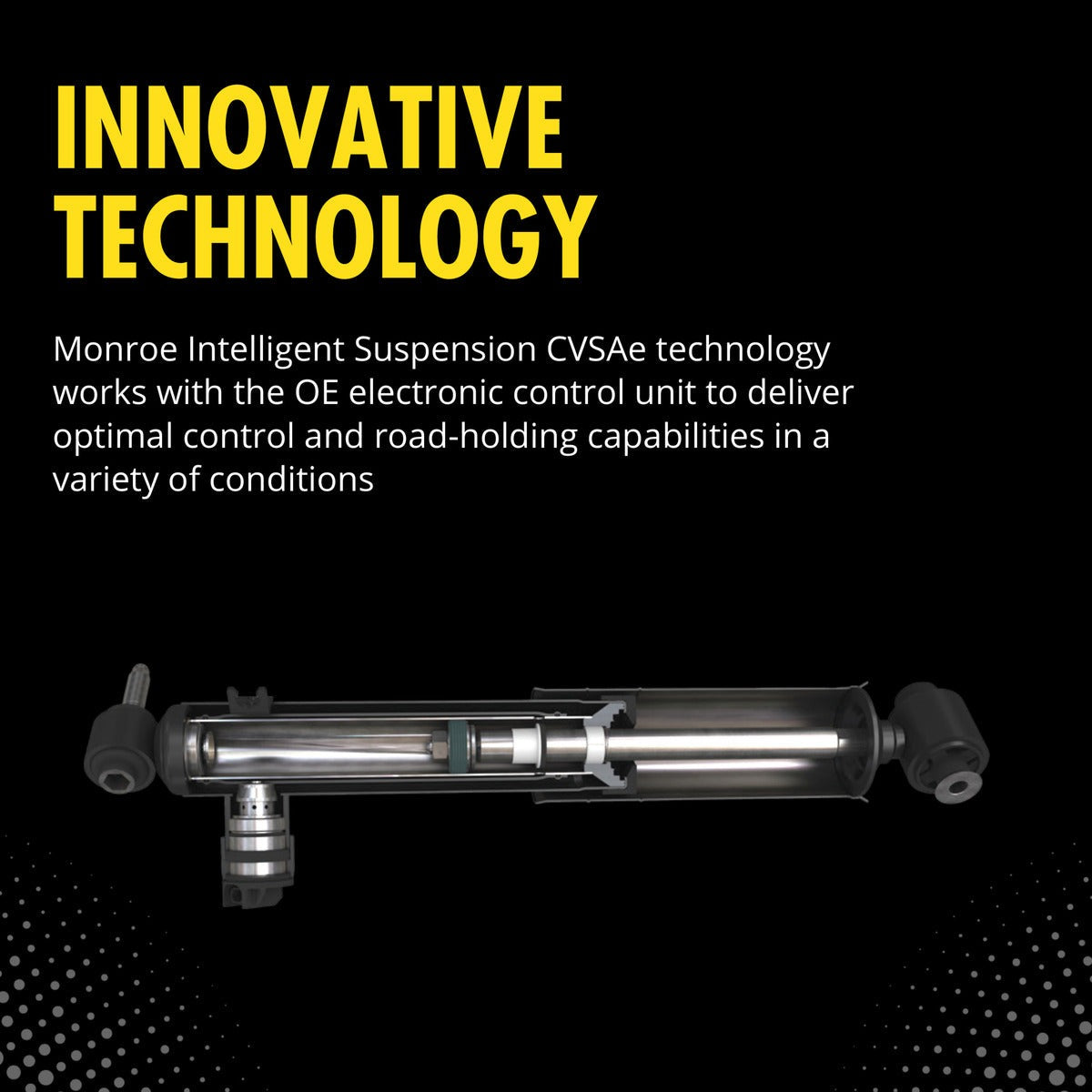

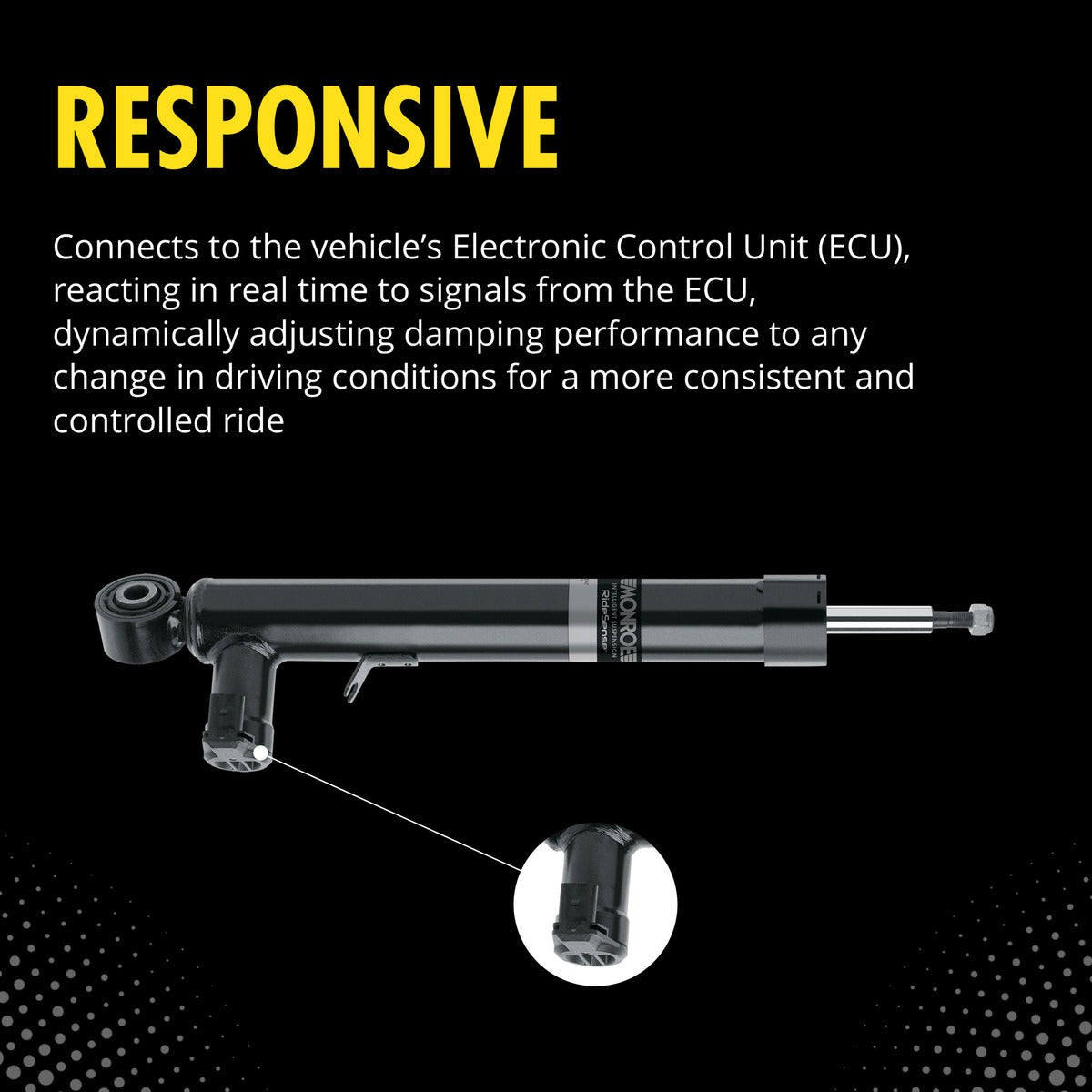

Designed to OE specifications, get a comfortable and controlled ride with Monroe® RideSense™ shocks. These shocks feature Continuously Variable Semi-Active Suspension (CVSAe) external valve technology that works with OE electronic control unit (ECU) to deliver optimal control, comfort and road-holding capabilities in a variety of driving conditions. A direct OE replacement, RideSense shocks feature the same fit and CVSAe technology as the factory shocks.

Specifications

• Body Diameter (IN): 2.17
• Body Diameter (MM): 55.1
• Compressed Length (IN): 11.46
• Compressed Length (MM): 291.1
• Dust Shield Included: No
• Extended Length (IN): 18.33
• Extended Length (MM): 465.6
• Gas Charged: Yes
• Hydraulic Lockout: No
• Includes Bump Stop: No
• Internal Rebound Bumper: Yes
• Lower Mount Code: LS44
• Lower Mount Type: Loop Bushing and Sleeve Mount - 14mm Sleeve ID X 1 7/8" Sleeve OAL
• Part Description: Shock Absorber
• Parts Pack(s): M17110852
• Shock Absorber Body End Measuring Point: Center of Loop
• Shock Absorber Rod End Measuring Point: Base of Stem
• Travel Length (IN): 6.87
• Travel Length (MM): 174.5
• Upper Mount Code: S8
• Upper Mount Type: Stem Mount - 1" Stem Length X M8 Thread Pitch
