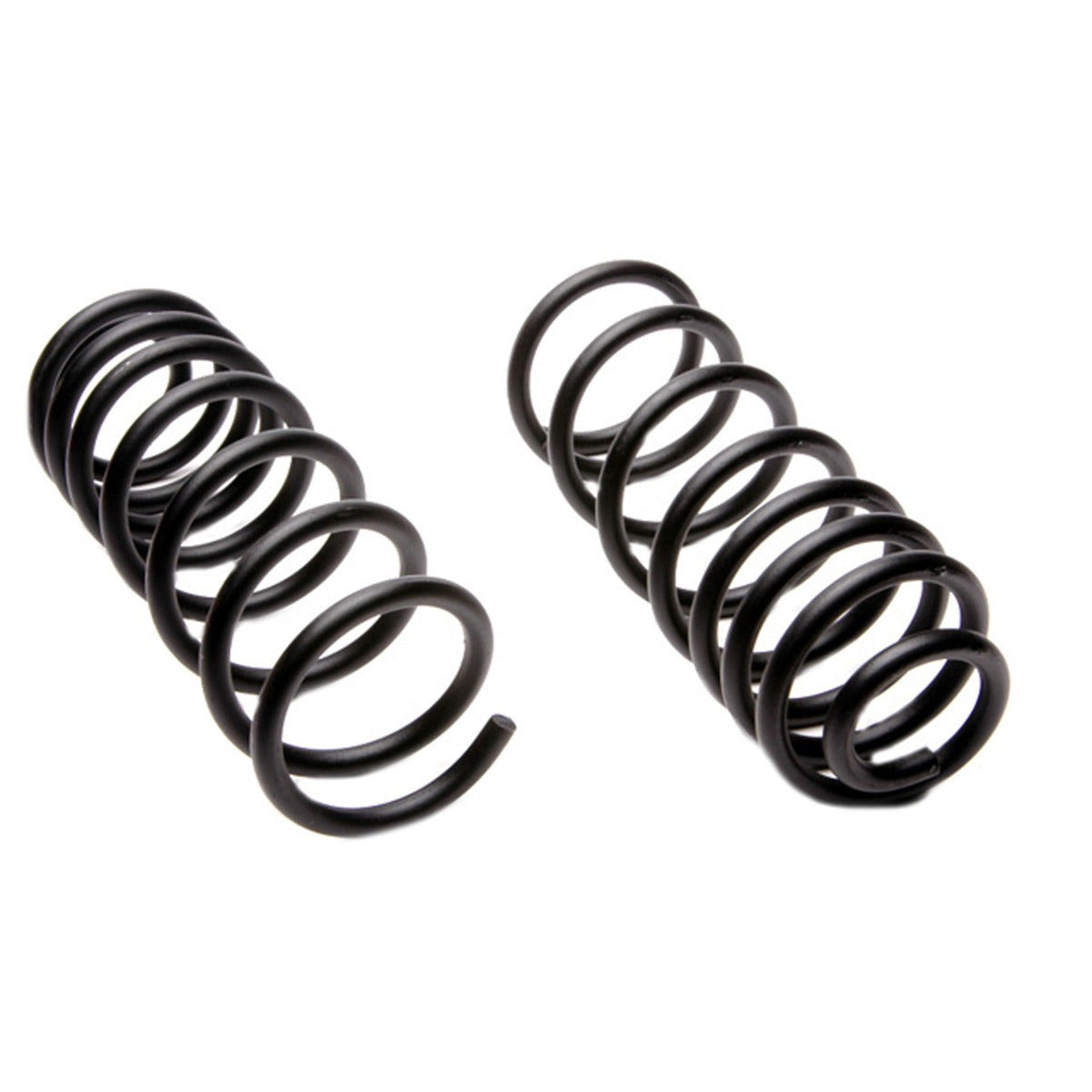

MOOG CC721 Rear Coil Spring Set

By constantly introducing design enhancements that extend product life and simplify installation and replacement, MOOG has earned its reputation as the chassis industry's Problem Solver.

FEATURES

• 100% Load tested
• Easy to install
• Provides like-new steering
• Designed to lower stresses for longer service life
• Worn or sagging coil springs can cause premature tire wear due to vehicle misalignment

SPECIFICATIONS

• Bar Diameter - Inches: 0.54
• Bar Diameter - MM: 13.70
• End 1 Type: Tangential
• End 2 Type: Pigtail
• Free Height - Inches: 14.16
• Free Height - MM: 359.70
• Installation Height (mm): 279.40
• Front Spring Outside Diameter (in): 5.100
• Front Spring Relaxed Length (in): 14.16
• ID - Inches: 4.02
• ID - MM: 102.10
• Installation Height - Inches: 11.00
• Installation Height - MM: 279.40
• Load - lbs: 572.00
• Part Description: Coil Spring Set
• Rear Spring Compressed Length (in): 11.00
• Rear Spring Outside Diameter (in): 5.100
• Rear Spring Relaxed Length (mm): 359.70
• Spring Color: Black
• Spring Rate - lbs per inch: 182.00
• Spring Type: Variable Rate
• Bar Diameter (mm): 13.70
