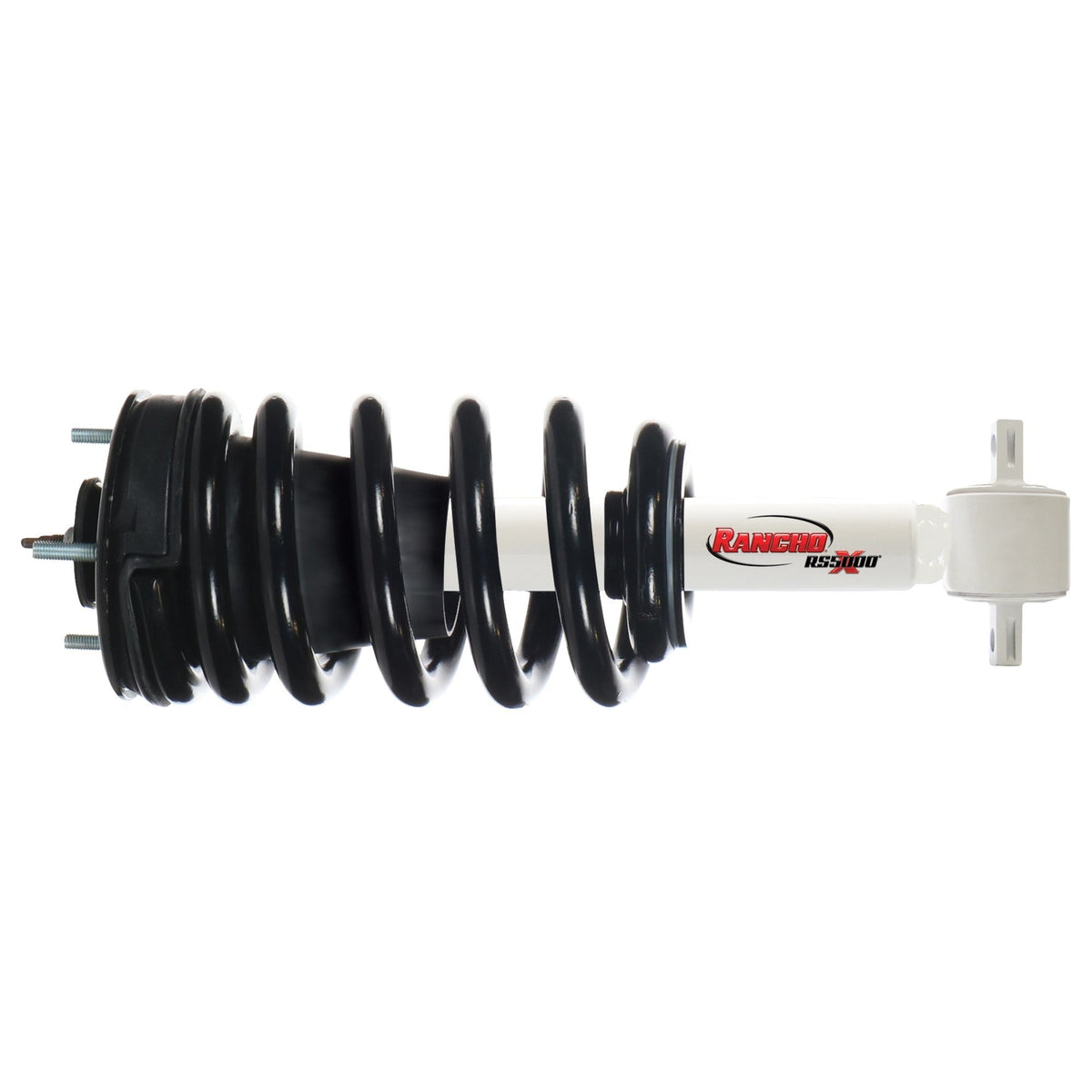

Rancho RS551836 Front RS5000X Loaded Strut Assembly Ford F-150

An all-in-one solution for late model trucks and SUVs, a Rancho® RS5000®X Loaded strut assembly restores the factory ride height and delivers improved on- and off-road handling thanks to Ranchoâs exclusive Cross Tuned technology. This complete strut assembly simplifies installation by including all the required components in a single unit, on- and off-road ride tested and engineered to strict durability requirements.

FEATURES

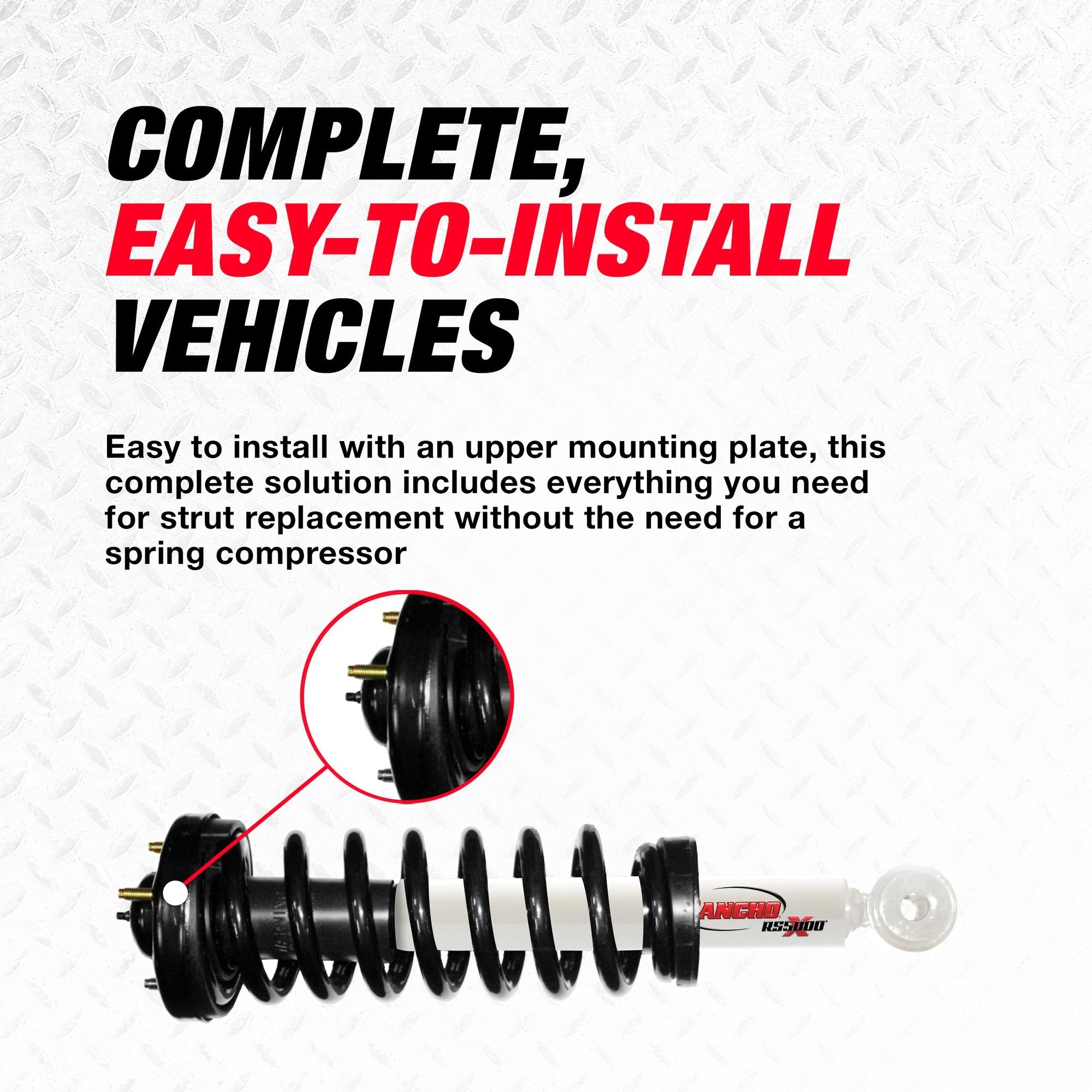

• COMPLETE, EASY-TO-INSTALL SOLUTION -- Easy to install with an upper mounting plate, this complete solution includes everything you need for strut replacement without the need for a spring compressor

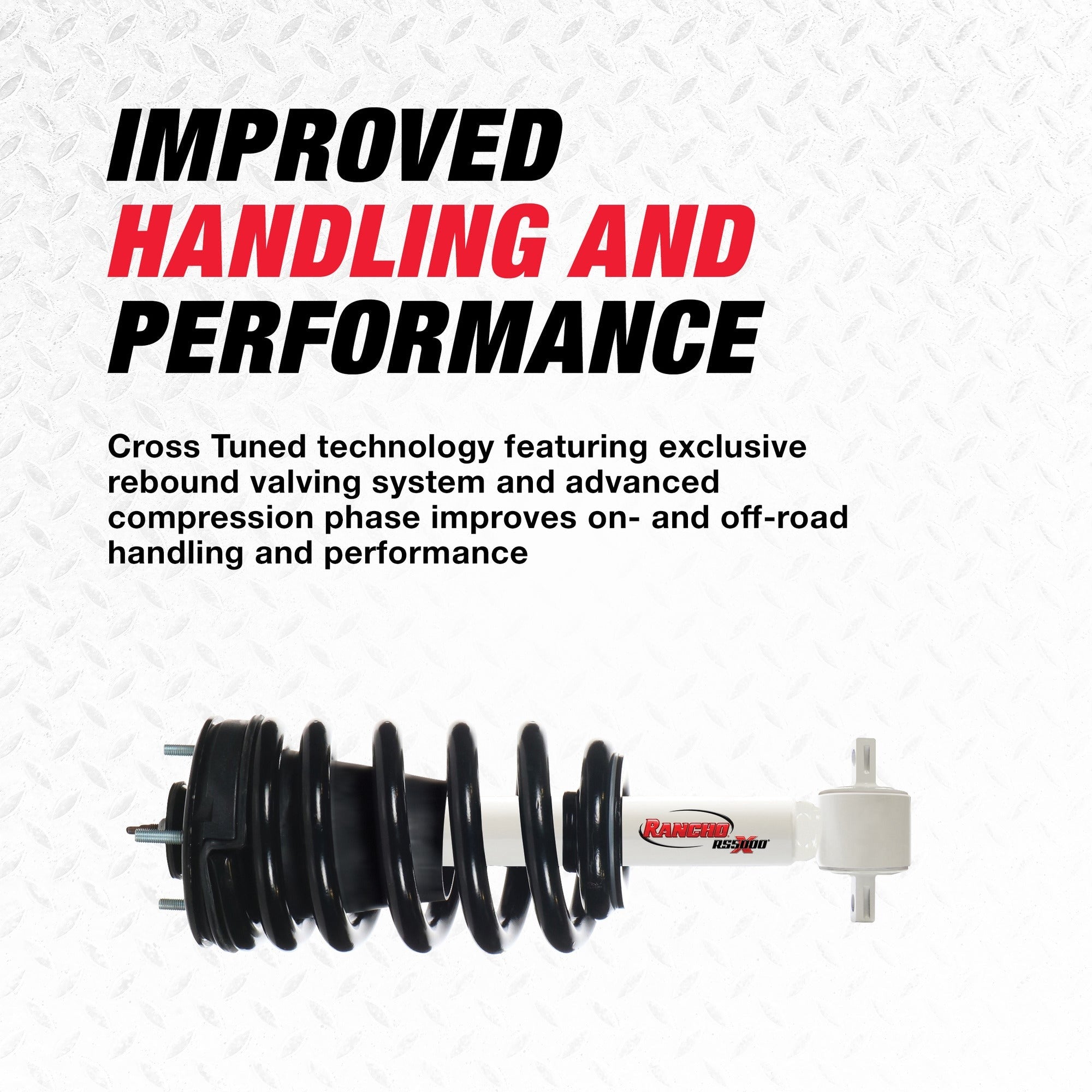

• IMPROVED HANDLING AND PERFORMANCE -- Cross Tuned technology featuring exclusive rebound valving system and advanced compression phase improves on- and off-road handling and performance
• RESTORES RIDE HEIGHT -- Precisely calibrated, each application-specific coil spring is fit checked, ride tested and engineered to restore factory ride height
• MINIMIZES ROUGH RIDE -- Exclusive Progressive Engagement Valving is custom-tuned for each vehicle to help reduce initial impacts at low speeds and minimizes a rough ride

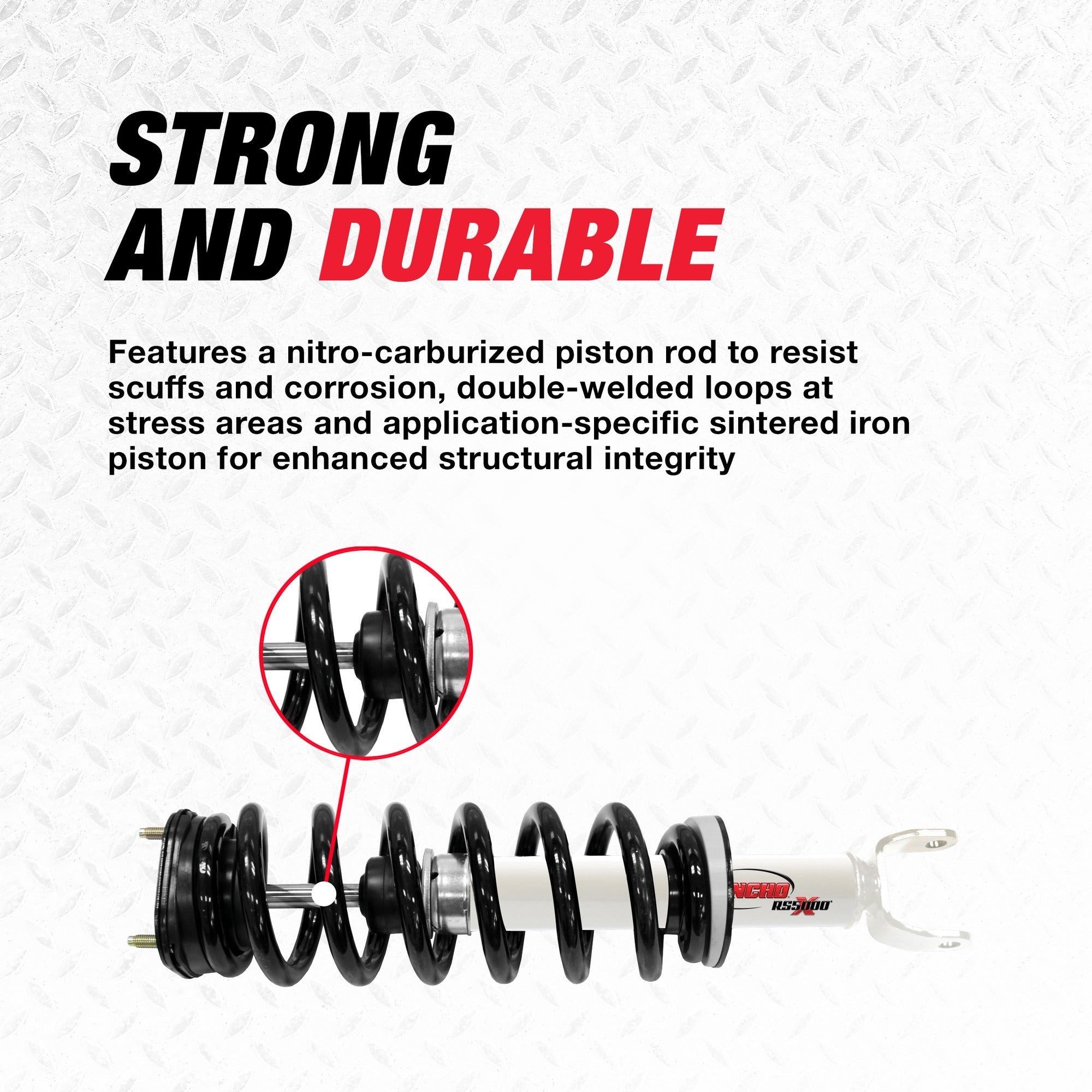

• STRONG AND DURABLE -- Features a nitro-carburized piston rod to resist scuffs and corrosion, double-welded loops at stress areas and application-specific sintered iron piston for enhanced structural integrity

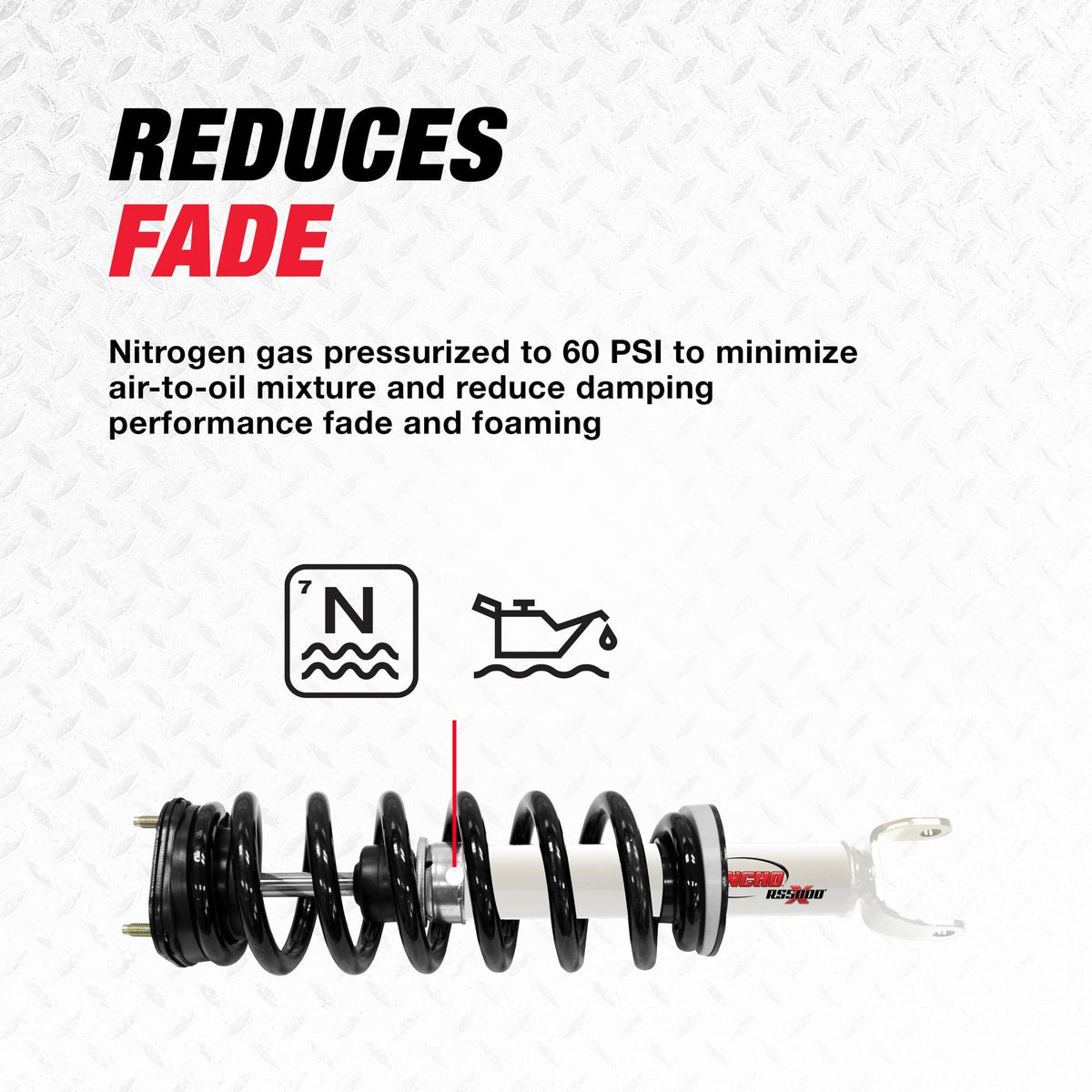

• REDUCES FADE -- Nitrogen gas pressurized to 60 PSI to minimize air-to-oil mixture and reduce damping performance fade and foaming
• BUY WITH CONFIDENCE -- Comes with Ranchoâs Limited Lifetime Warranty

Specifications of the RS551836:

• Adjustable Damping: No
• Body Diameter (mm): 54.1
• Body Diameter (in): 2.13
• Body Length (in): 17.03
• Body Length (mm): 432.6
• Body Type: SS7
• Compressed Length (mm): 436.1
• Compressed Length (in): 17.17
• Dust Shield Included: No
• Extended Length (mm): 549.7
• Extended Length (in): 21.64
• Gas Charged: Yes
• Grade Type: Performance
• Includes Bump Stop: Yes
• Internal Rebound Bumper: Yes
• Lower Mount Type: Cross Pin
• Mounting Hardware Included: Yes
• Parts Pack(s): P01141, P01726
• Prop 65 Label (Yes/No): No
• Travel Length (mm): 113.5
• Travel Length (in): 4.47
• Upper Mount Type: Stud Plate Mount
• Upper Mount Type: Stud Plate
