Rancho RS77836 Front RS7MT Strut Ford F-150

Rancho RS7MT Strut RS77836

Upgrade your Ford F-150 with Rancho RS7MT Strut RS77836, designed for precision on-road and off-road handling. These monotube struts are perfect for extreme off-road use and larger tire packages, offering superior heat dissipation and durability. Engineered with advanced deflective disc valving and a dirt wiper sealing system, the RS7MT struts provide a smooth, controlled ride, even in the most challenging conditions.

Features of the RS77836:

• Deflective Disc Valving: This technology offers digressive, linear, or progressive tuning based on application requirements, providing precision handling and enhanced performance on and off the road.

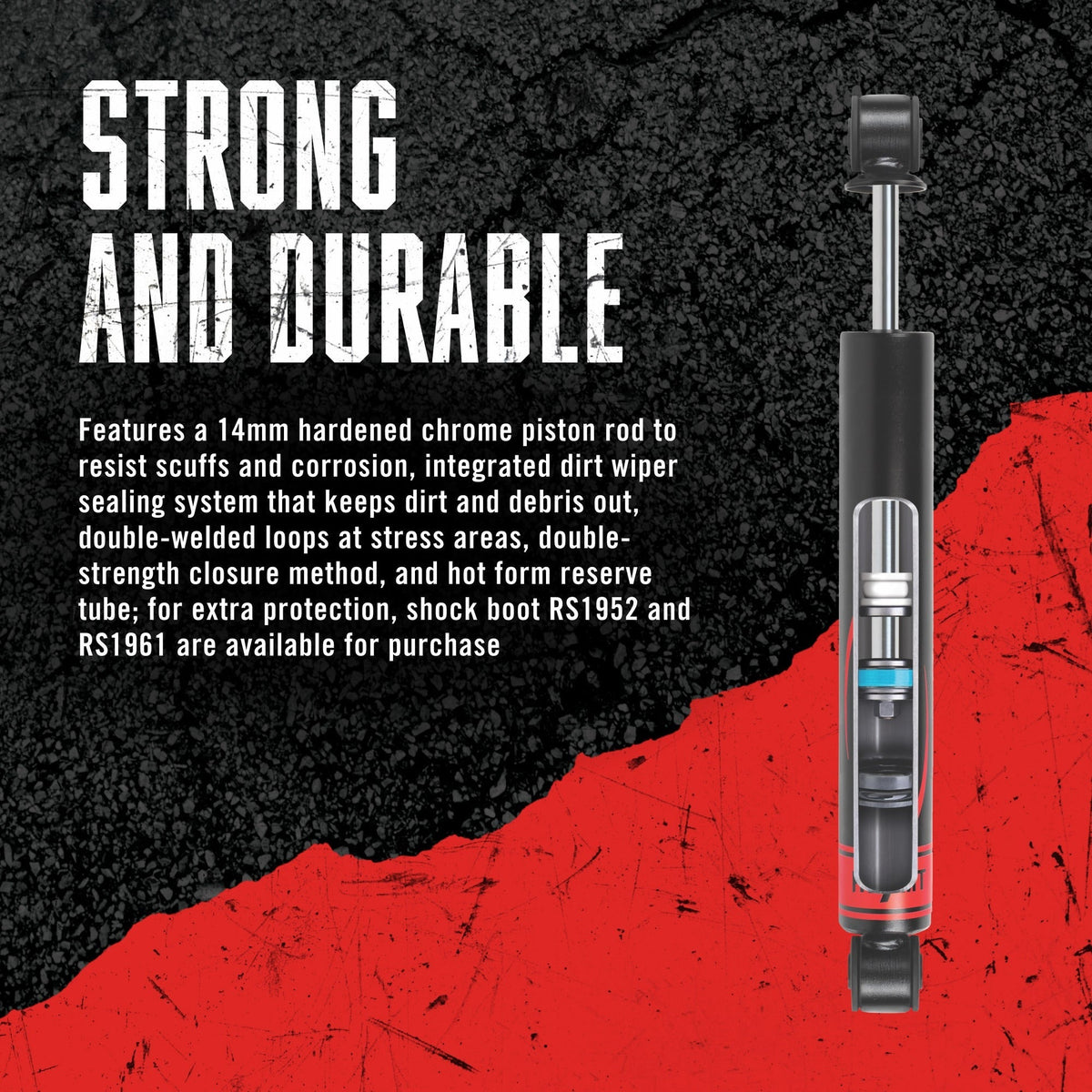

• 14mm Hardened Chrome Piston Rod: Built to resist scuffs and corrosion, this durable rod ensures long-lasting performance, even in harsh driving conditions.
• 2-Inch Monotube Body: The large body is filled with all-weather fluid, allowing for cooler operation and increased control. It can withstand extreme temperatures ranging from -40°F to 248°F.
• High-Pressure Nitrogen Gas: This gas maintains constant pressure against the hydraulic oil, reducing aeration and preventing shock fade, ensuring consistent damping performance.
• Integrated Dirt Wiper Sealing System: This system prevents moisture, dirt, and debris from entering the strut, protecting the internal components and prolonging the strut's life.

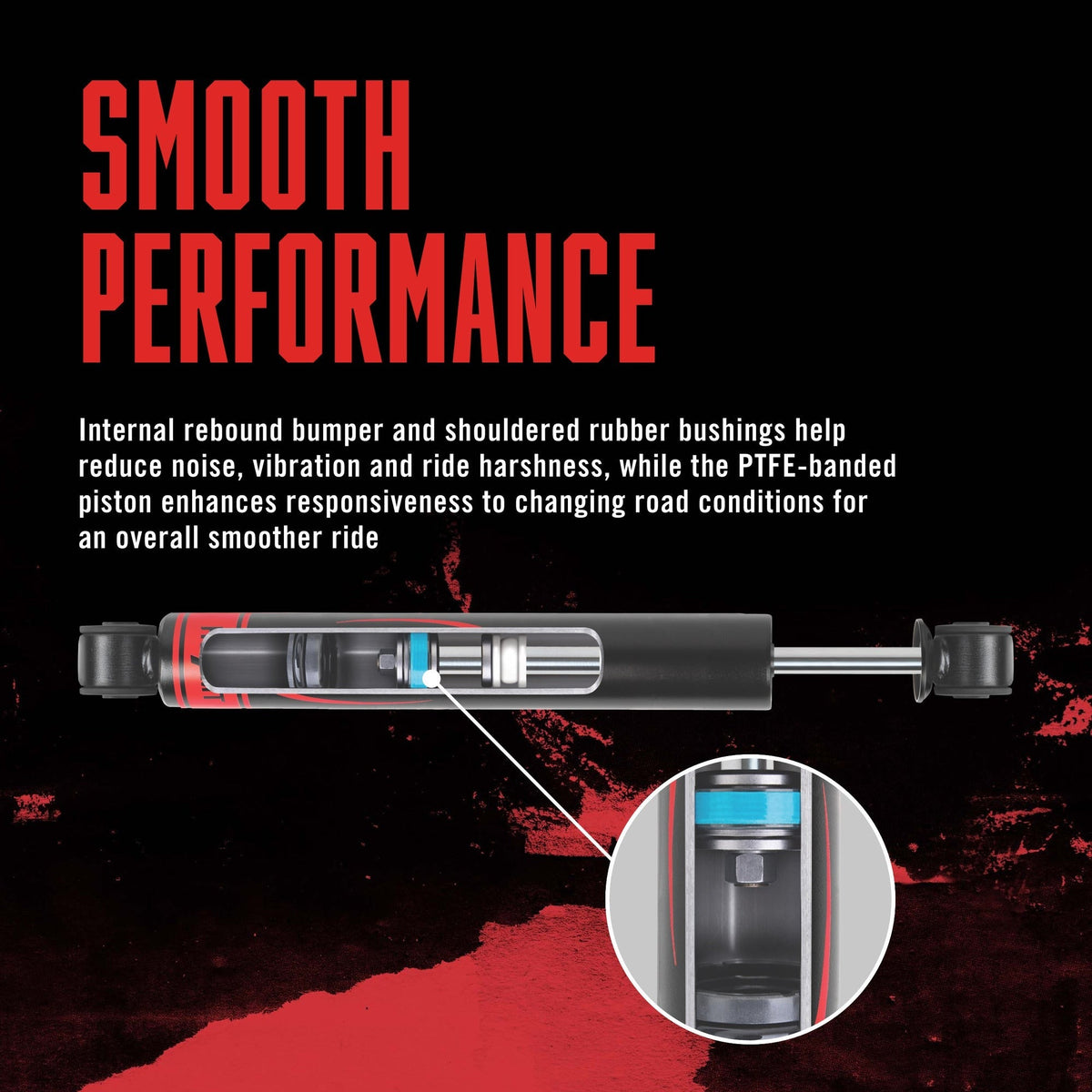

• Internal Rebound Bumper: Reduces noise, vibration, and harshness, ensuring a smoother ride over various terrains.

Benefits of the RS77836:

• Precision Handling: The advanced deflective disc valving system offers customized tuning to match the specific needs of your Ford F-150, improving both on-road handling and off-road performance.
• Extreme Durability: With a hardened chrome piston rod and double-welded loops at stress points, these struts are built to handle the most challenging conditions and resist wear over time.
• Smooth Ride: Features like the internal rebound bumper and PTFE-banded piston ensure a quieter, smoother ride by absorbing vibrations and providing responsive handling.
• Improved Temperature Resistance: These struts can handle extreme temperature fluctuations and maintain reliable performance regardless of the environment.
• Greater Protection: The integrated dirt wiper sealing system and fluon-banded piston ensure that your struts remain free of contaminants, extending their lifespan.

Specifications of the RS77836:

• Adjustable Damping: No
• Body Color: Black
• Body Diameter (in): 1.97
• Body Diameter (mm): 50
• Body Length (mm): 427
• Body Length (in): 16.81
• Body Type: SS7
• Boot Included: No
• Compressed Length (in): 17.17
• Compressed Length (mm): 436.1
• Dust Shield Included: No
• Extended Length (in): 21.54
• Extended Length (mm): 547.1
• Finish: Painted
• Gas Charged: Yes
• Grade Type: Performance
• Includes Bump Stop: No
• Internal Construction Type: Single Tube
• Internal Rebound Bumper: Yes
• Lower Mount Type: Cross Pin
• Parts Pack(s): M17111248, M17111255
• Rod Diameter (mm): 14
• Shock Absorber Bore Size (mm): 46
• Travel Length (in): 4.37
• Travel Length (mm): 111
• Type: Telescopic
• Upper Mount Type: Stem Mount - M12 x 1.75
• Upper Mount Type: Stem

Upgrade your Ford F-150 with Rancho RS7MT Strut RS77836 and enjoy superior handling, durability, and ride comfort. Whether tackling challenging off-road trails or driving through varying road conditions, these struts ensure optimal performance and longevity.
